Scattering of elastic waves in heterogeneous media has become one of the most important problems in the field of wave propagation due to its broad applications in seismology, natural resource exploration, ultrasonic nondestructive evaluation and biomedical ultrasound. Nevertheless, it is one of the most challenging problems because of the complicated medium inhomogeneity and the complexity of the elastodynamic equations. A widely accepted model for the propagation and scattering of elastic waves, which properly incorporates the multiple scattering phenomenon and the statistical information of the inhomogeneities is still missing. In this work, the author developed a multiple scattering model for heterogeneous elastic continua with strong property fluctuation and obtained the exact solution to the dispersion equation under the first-order smoothing approximation. The model establishes an accurate quantitative relation between the microstructural properties and the coherent wave propagation parameters and can be used for characterization or inversion of microstructures. Starting from the elastodynamic differential equations, a system of integral equation for the Green functions of the heterogeneous medium was developed by using Green’s functions of a homogeneous reference medium. After properly eliminating the singularity of the Green tensor and introducing a new set of renormalized field variables, the original integral equation is reformulated into a system of renormalized integral equations. Dyson’s equation and its first-order smoothing approximation, describing the ensemble averaged response of the heterogeneous system, are then derived with the aid of Feynman’s diagram technique. The dispersion equations for the longitudinal and transverse coherent waves are then obtained by applying Fourier transform to the Dyson equation. The exact solution to the dispersion equations are obtained numerically. To validate the new model, the results for weak-property-fluctuation materials are compared to the predictions given by an improved weakfluctuation multiple scattering theory. It is shown that the new model is capable of giving a more robust and accurate prediction of the dispersion behavior of weak-property-fluctuation materials. Numerical results further show that the new model is still able to provide accurate results for strong-property-fluctuation materials while the weak-fluctuation model is completely failed. As applications of the new model, dispersion and attenuation curves for coherent waves in the Earth’s lithosphere, the porous and two-phase alloys, and human cortical bone are calculated. Detailed analysis shows the model can capture the major dispersion and attenuation characteristics, such as the longitudinal and transverse wave Q-factors and their ratios, existence of two propagation modes, anomalous negative dispersion, nonlinear attenuation-frequency relation, and even the disappearance of coherent waves. Additionally, it helps gain new insights into a series of longstanding problems, such as the dominant mechanism of seismic attenuation and the existence of the Mohorovičić discontinuity. This work provides a general and accurate theoretical framework for quantitative characterization of microstructures in a broad spectrum of heterogeneous materials and it is anticipated to have vital applications in seismology, ultrasonic nondestructive evaluation and biomedical ultrasound.

**Keywords:**Multiple scattering, Mohorovičić Discontinuity, Elastic Continua.

# Abstract

Scattering of elastic waves in heterogeneous media has become one of the most important problems in the field of wave propagation due to its broad applications in seismology, natural resource exploration, ultrasonic nondestructive evaluation and biomedical ultrasound. Nevertheless, it is one of the most challenging problems because of the complicated medium inhomogeneity and the complexity of the elastodynamic equations. A widely accepted model for the propagation and scattering of elastic waves, which properly incorporates the multiple scattering phenomenon and the statistical information of the inhomogeneities is still missing. In this work, the author developed a multiple scattering model for heterogeneous elastic continua with strong property fluctuation and obtained the exact solution to the dispersion equation under the first-order smoothing approximation. The model establishes an accurate quantitative relation between the microstructural properties and the coherent wave propagation parameters and can be used for characterization or inversion of microstructures. Starting from the elastodynamic differential equations, a system of integral equation for the Green functions of the heterogeneous medium was developed by using Green’s functions of a homogeneous reference medium. After properly eliminating the singularity of the Green tensor and introducing a new set of renormalized field variables, the original integral equation is reformulated into a system of renormalized integral equations. Dyson’s equation and its first-order smoothing approximation, describing the ensemble averaged response of the heterogeneous system, are then derived with the aid of Feynman’s diagram technique. The dispersion equations for the longitudinal and transverse coherent waves are then obtained by applying Fourier transform to the Dyson equation. The exact solution to the dispersion equations are obtained numerically. To validate the new model, the results for weak-property-fluctuation materials are compared to the predictions given by an improved weakfluctuation multiple scattering theory. It is shown that the new model is capable of giving a more robust and accurate prediction of the dispersion behavior of weak-property-fluctuation materials. Numerical results further show that the new model is still able to provide accurate results for strong-property-fluctuation materials while the weak-fluctuation model is completely failed. As applications of the new model, dispersion and attenuation curves for coherent waves in the Earth’s lithosphere, the porous and two-phase alloys, and human cortical bone are calculated. Detailed analysis shows the model can capture the major dispersion and attenuation characteristics, such as the longitudinal and transverse wave Q-factors and their ratios, existence of two propagation modes, anomalous negative dispersion, nonlinear attenuation-frequency relation, and even the disappearance of coherent waves. Additionally, it helps gain new insights into a series of longstanding problems, such as the dominant mechanism of seismic attenuation and the existence of the Mohorovičić discontinuity. This work provides a general and accurate theoretical framework for quantitative characterization of microstructures in a broad spectrum of heterogeneous materials and it is anticipated to have vital applications in seismology, ultrasonic nondestructive evaluation and biomedical ultrasound.

**Keywords:**Multiple scattering, Mohorovičić Discontinuity, Elastic Continua.

# Introduction

Scattering of elastic waves is the central topic in the theory of elastodynamics and its applications cover a broad spectrum of physical and engineering disciplines, ranging from seismology, natural resource exploration, ultrasonic nondestructive evaluation to biomedical ultrasound. Multiple scattering is a universal phenomenon which occurs in any materials that exhibit spatial fluctuation of elastic moduli or density. The planet Earth is a typical heterogeneous media. Geophysical studies show the rocks constituting the lithosphere, typically with a characteristic size from several hundred meters to tens of kilometers, exhibit strong fluctuations in both the elastic stiffness and the density. A seismic wave gets scattered by large amounts of such inhomogeneities during its travel from the source, normally tens of kilometers beneath the Earth’s surface, to the observation station located up to thousands of kilometers away from the epicenter. As a consequence, the seismic signal experiences multiple scattering and appears as a wavetrain consists of several dispersive and attenuating direct arrivals followed by a long duration of coda waves. Multiple scattering theory is a necessary tool for the explanation of measured signals and extracting statistical information of the heterogeneous lithosphere. A series of classics in seismology [1-4] are devoted to seismic wave scattering and attenuation and numerous research papers have also been published [5-33]. Geophysicists also make use of man-made earthquakes and borehole explosions to explore oil and gas reservoir [34-36]. Porous rocks saturated by hydrocarbon-enriched liquid mixtures are the major constituent of oil and gas reservoir, of which the mass density and elastic modulus are significantly different from that of tight rocks. By analyzing the unique dispersion and attenuation of the artificial seismic waves, geophysicists can identify the reservoirs, infer its mineral constituents and evaluate reserves of the resources. Ultrasonic waves with a central frequency of several megahertz are extensively used in industry for nondestructive characterization of microstructures in heterogeneous materials, such as hightemperature alloys, composite materials or ceramics [37- 68]. The typical size of the microstructure in these materials, such as pores, grains, crystallites and microtextured regions, lies between a few micrometers to several millimeters, thus the wavelengths are comparable to the characteristic dimension of the microstructures. In this frequency regime, the wave-scatterer interaction is relatively strong and the multiple scattering theory is extremely important for the analysis of measured signals. In analogy to its industrial applications, ultrasound is also used in medicine to diagnose and monitor certain diseases, like cancer and osteoporosis [69-77]. Bone quantitative ultrasound is a typical example of such applications. Cortical bone is a typical two-phase elastic material composed of a porous solid frame saturated by marrow. Clinical studies reveal that the porosity and average pore size are the key microstructural parameters that control the risk of bone fracture. Consequently, there is an increasing interest in quantitatively characterizing the microstructures in cortical bone [70]. X-ray microtomography (XMT) and nuclear magnetic resonance (NMR) analysis show the diameters of the majority of pores lie between 20 μm and 300 μm, while the volume fraction of pores varies between 5% and 30% [78]. These two factors combine to determine that the propagation of ultrasound in cortical bone is dominated by multiple scattering.

From the above discussion, we see an accurate and quantitative description of multiple scattering is of vital importance to the success of ultrasound applications. Nevertheless, theoretical analysis of multiple scattering in heterogeneous media is exceedingly challenging. Complexities of the scattering problem arise from two aspects. First, the mass density and/or elastic stiffness vary randomly with spatial coordinates, thus the governing equations are stochastic differential equations, conventional mathematical physics approaches developed for deterministic equations become invalid for these materials. Second, there exist large amounts of interfaces among different phases, where the boundary conditions, i.e., the continuity of displacement and traction must be enforced. As a consequence, obtaining an accurate analytical solution to the complete set of boundary value problems quickly becomes intractable. Solving for the numerical solution to this problem is equally difficult. The material properties (density and/or elastic moduli) exhibit a sharp jump across the boundaries, and accurate description of the discontinuity is impossible for certain numerical method, like the finite-difference time domain approach. In addition, large quantities of irregular boundaries exist in the medium, for which an accurate depiction in numerical models is also challenging. Moreover, large amount of meshes or elements makes the numerical simulation of the wave scattering extremely time-consuming, especially for the case of strong-property fluctuation materials and high frequency signals. Finally, numerical dispersion and artificial excitation or consumption frequently contaminate the numerical algorithms and result in distorted signals. Therefore, significant efforts have been directed to developing approximate analytical models for wave propagation in heterogeneous media.

During the last century, pioneering scientists have made tremendous efforts in studying the multiple scattering of waves and proposed numerous theoretical models to explain the rich phenomena. Based on the fundamental assumptions and methodologies, theoretical models can be classified into two categories, one is called the macroscopic phenomenological models, the other is known as the scattering models. Phenomenological models are also known as homogenized effective medium models, which focus on searching for different homogenization schemes to obtain the effective constitutive properties. The most representative example of phenomenological models is developed by Biot in his pioneering research on fluid-saturated porous materials [79-81]. In Biot’s theory, two sets of field variables (displacement, strain and stress) are introduced to describe the motion of the solid phase and the fluid phase, respectively. The equations of motion of a representative volume element for the two-phase material were derived from the Lagrange equations of a specific kinetic energy density, in which a set of mass coefficients were introduced to account for the coupling interactions between the two phases. After taking divergence and curl of the governing equations, Biot obtained two independent equations for the dilatational waves and one for the transverse waves, by which he further predicted the existence of two longitudinal propagation modes, known as the Biot waves of the first and the second type, and a transverse mode. In 1980, Plona [82] conducted a series of ultrasonic immersion tests on a slab of porous elastic material. After analyzing the transmitted signals with different incident angles, he identified a slow longitudinal mode in addition to the fast longitudinal wave and the transverse wave. He concluded that these waves correspond to those predicted by Biot. Since then, Biot’s model becomes the standard method for dealing with wave propagation in fluid-saturated porous elastic materials and is widely used in geomechanics, hydrogeology, petroleum exploration and more recently in biomechanics [70,83-88]. However, it is generally acknowledged that Biot’s model have a number of drawbacks. One shortcoming is that the fluid viscosity is regarded as the sole mechanism for attenuation, while the portion contributed by scattering is completely neglected. It is reported that Biot’s model always underestimate the attenuation [86-88]. Another noteworthy defect is that a number of phenomenological parameters, such as the frequency correction factor of the viscosity coefficient and the structural factor are involved, which either have obscured physical meaning or the accurate values are difficult to measure experimentally. Furthermore, Biot’s model cannot predict the anomalous negative dispersion as observed in cortical and trabecular bone [70,73,89], and fluid-saturated sediment sand [90]. Additionally, numerical results show it cannot predict the velocity and attenuation accurately and simultaneously [70]. In order to remedy these deficiencies, researchers have proposed different versions of modified Biot’s model. Dvorkin and coworkers incorporate the effects of local squirt flow into Biot’s model and developed the so-called BISQ model [19-21]. The BISQ model achieves certain degree of success in regards to improving the estimation of seismic attenuation. Muller and Gurevich [26-27] considered the effects of both the waveinduced flow and scattering on the seismic attenuation and derived a statistical smoothing approximation theory based on the Biot equations. Johnson and coworkers introduced the concepts of dynamic permeability and dynamic tortuosity to describe the fluid-saturated pores in the solid frame [91]. It has been applied in analysis of ultrasound dispersion and attenuation of trabecular bones and achieved intermediate degree of success [70]. Another type of macroscopic phenomenological method is known as the dynamic selfconsistent theory. In analogous to the static self-consistent theory [92-95], in which the stress polarization as introduced, Willis and Sabino [59-64] adopted the concept of the momentum polarization for dynamic problems and derived a system of coupled integral equations for the ensemble-averaged displacement and strain. A set of selfconsistent conditions are derived to fix the properties of a homogeneous reference medium. Formulas for waves propagating in general two-phase composite materials are then specialized for the cases of aligned spheroidal inclusions and randomly oriented spheroids. Numerical results for velocity and attenuation shows that their model can successfully capture the negative dispersion, which is a common feature of two-phase materials. An obvious drawback of the model is that at high frequencies, the attenuation predicted by the model approaches zero, which is physically impractical. In light of Willis and Sabino’s work, Zhuck and Lakhtakia [96-97] incorporated the second-order statistics of the random medium and developed a system of renormalized integral equations for the estimation of the effective constitutive properties. In the proposed model, they first considered the singularity of the elasodynamic Green’s tensor, and thus their results are applicable for elastic materials with strong property fluctuation. As pointed out in their work, a major drawback of the homogenization approach is that it is only valid for heterogeneous materials in which the characteristic dimension of the heterogeneities is less than the wavelength of the excitation signals, i.e., at relatively low frequencies. Through the above discussion, it is seen different versions of effective medium models have several shortcomings in common. The most noteworthy is that they are valid either at relatively low frequencies or in a relatively narrow frequency band, none of them can predict the effective properties in the whole frequency range. This puts server limits on practical applications, for instance, analysis of high frequency signals. Another disadvantage is the introduction of phenomenological parameters which require to be measured experimentally or need to be known in advance. These limitations pose challenges for practical applications and consequently, they are rarely used as inversion models for microstructure characterization.

Contrary to phenomenological models, whose attention is concentrated on searching for an equivalent homogeneous medium, scattering models are focused on investigating the interaction of wave fields with randomly distributed small-scale scatterers. Parameters of practical importance, such as backscattering coefficients, scattering cross section, diffusivity and mean free path, in addition to the velocity and attenuation, are extracted through the analysis of the scattering process. At present, a vast variety of scattering theories and approximations have been proposed. All these scattering theories can be classified into several categories following different classification schemes. For instance, according to the frequency range in which they are applicable, scattering theories can be classified into low frequency, stochastic and high frequency theories. Based on the fractional fluctuation of the material properties of the constituent phases, scattering theories are also classified into weak scattering theories [2,16,48,98] and strong scattering theories [99-109]. In view of stochastic medium model, scattering models can also be classified into discrete scatterer models [110-119] and continuum models [2,16,48,98]. In order to obtain a comprehensive understanding of the background of this area, here we give a brief overview of the most popular models and approximations, and compare their advantages and disadvantages. The Born approximation is probably the most famous approximation used in the scattering community. When the fluctuations of the materials properties are weak, and the wavelength is large compared to the typical dimension of the heterogeneities, the field in the inclusions can be approximated by the unperturbed field. This approximation is called the Born approximation. The Born approximation is an ideal tool for dealing with weak scattering problems, and it has been used in nearly all involved disciplines, including seismology [1-3], ultrasonic NDE [37-41] and electromagnetic remote sensing [120-122]. Explicit expressions for measurable quantities like the scattering section and the backscattering coefficient of polycrystalline materials are derived in [37- 41]. Born approximation fails in the high frequency regime and for strong fluctuation materials. Complementary to the Born approximation, the Rytov approximation, the geometric approximation and the parabolic approximation [3,123-124] are developed to analyze scattering behavior in the high frequency regime, although they are still limited to weak scattering problems. When the concentration of the inclusions is low, or in other words, the solid is a dilute solution of the dispersed inclusions, a straightforward approximation is to omit the interactions among different inclusions, and assume that each scatterer interacts with the incident wave independently, this approximation is called the independent scattering approximation (ISA) [18, 33,41]. ISA is applicable to inclusions with weak property perturbation or predict the dispersion and attenuation accurately when the volumetric concentration of the pointscatterers is very small.

Multiple scattering theories account for the sophisticated scattered wavefield faithfully and aim at giving an accurate and consistent description of the propagation behaviors. Rossum and Nieuwenhuizen [125] and Barabanenkov et. al. [126] gave two excellent reviews for the historical development and the current state of general multiple scattering theories. The first multiple scattering theory for elastic waves was developed by Karal and Keller [98]. This model relies on the small-perturbation expansion of differential operators and their inverse operators. After successive iteration of the series expansion of the wave operator, the differential equations are transferred into a system of integral equations, from which the Christoffel equation for the coherent plane waves is then derived. Based on Keller’s approximation, they obtained analytical formulas for the velocity and attenuation which are valid in the whole frequency range. Stanke and Kino [46-47] developed a unified model for polycrystalline materials in parallel to the Karal-Keller approach. This model has been applied in nondestructive characterization of microstructures in polycrystalline alloys. Exact dispersion and attenuation of alloys with cubic crystallites are obtained in the whole frequency range. Weaver [48] developed the first multiple scattering theory based on Dyson’s equation and the firstorder-smoothing-approximation (FOSA) [127-128]. The Dyson equation of the ensemble-averaged Green’s function for polycrystalline medium was obtained by introducing a multiple scattering series expansion of the stochastic differential equations. By invoking the First-OrderSmoothing approximation (FOSA), the explicit expressions of the mass operators were derived for longitudinal and transverse coherent waves. Closed forms of longitudinal and transverse Green’s functions and dispersion equations were then obtained based on the FOSA Dyson’s equation. Because of the extreme complexity of the resulting expressions, the Born approximation was adopted in the last step and the closed-form analytical expressions for longitudinal and transverse wave attenuation were obtained. As pointed out in [48], the final expressions are only valid for weak fluctuation materials and low frequency waves. Since then, Weaver’s model has become one of the most widely used model in the nondestructive evaluation community. Weaver’s original work considered untextured polycrystals with spherical cubic grains only. Turner [57] extended Weaver’s model to incorporate the effects of textures. He studied equal-axed cubic polycrystal with the crystallographic axis aligned along a preferred direction. Green’s functions for transversely isotropic reference medium are incorporated to account for the macroscopically transverse isotropy of the textured polycrystals. Turner and Anugonda further considered two-phase materials with microscopically isotropic components [58]. It is noted that both [57] and [58] focus on the attenuation under the Born approximation, while the exact solution to the exact dispersion equation is still missing. Moreover, it is seen that only one root for attenuation is found for all propagation directions. Calvet and Margerin calculated both the velocity and the Q-factors of polycrystalline materials with cubic and hexagonal crystallites using Weaver’s model, with an ultimate goal to analyze the grain anisotropy of the Earth’s uppermost inner core [13]. All the previous calculations in the framework of Weaver’s model adopt the Born approximation and valid in the low frequency regime only. In order to obtain the propagation characteristics at high frequencies, Calvet and Margerin [12] proposed a spectral function approach, in which the imaginary part of the ensemble averaged Green’s function derived in Weaver’s model is identified as the spectral function. By introducing a simplified spectral function of the coherent waves and invoking the method of least square fitting, the dispersion and attenuation of the coherent wave are reconstructed from the exact spectral function. They first discovered that at high frequencies there exist two sets of longitudinal and transverse modes, although at the end of the paper they questioned the discovery by providing a subtle example for which there should be one propagation mode but their calculations gave two. Calvet and Margerin further extended Weaver’s model to incorporate the effects of grain shape [14]. An interesting phenomenon is that the attenuation and dispersion exhibit obvious anisotropy as a result of the geometric anisotropy. A noteworthy feature of the spectral function approach is that it is only an approximation to the exact solution. Solving for the exact solution to the dispersion equation derived from the FOSA Dyson’s equation is still very challenging. Recently the author conducted comprehensive study on Weaver’s model and the spectral function approach and obtained the exact solution to the dispersion equations [129]. By comparing the accurate solution with the results obtained using the spectral function approach, it is recovered that the spectral function method is valid at low and high frequencies only, and in the stochastic transition region it gives incorrect results. Most importantly, the performance of Weaver’s model for two-phase materials is quite unstable, in certain cases it gives physically impractical results. Both Weaver’s model and Stanke-Kino’s model use the Voigt-average material as the homogeneous reference medium. Turner pointed out the Voigt-averaged velocities always overestimate the velocities that measured in experiments [49]. To remedy this discrepancy, he introduced a self-consistent scheme to calculate the properties of the homogeneous reference medium, and incorporated these material properties into Weaver’s model [50]. Through comparison of the results obtained by different homogenization schemes, such as the Voigt, Reuss, Hill and self-consistent techniques, he concluded that the self-consistent method significantly improves the predictions of the dispersion and attenuation. It is worth mentioning that all these scattering theories are valid only for weak scattering media because the small-perturbation expansion is adopted for the description of property perturbation. A number of multiple scattering theories are also developed based on the discrete-scatterer model. One such theory is known as the generalized coherent potential approximation (GCPA) [110-112]. Based on the observation that waves propagating in the homogeneous effective medium should have no scattering at low frequencies and have very little scattering in the high frequency range, Sheng [110] proposed that the dispersion equation can be obtained by enforcing the mass operator vanish at low frequency and assuming its minimum in the high frequency range. Further approximations are introduced in order to make the resulting equations solvable, such as the T-matrix approach. The dispersion curve for liquid suspensions with monodispersed methylmethacrylate spheres are obtained and it shows that in the intermediate to high frequency range, there exist two propagation modes, which was observed experimentally by [113]. Sheng and coworkers developed the theory for liquid suspensions and electromagnetic waves only while the counterpart theory for elastic materials is still missing. Foldy [114] and Twersky [115,116] developed another multiple scattering theory based on the discrete scatterer model. In their model, the complex wavenumber is expressed explicitly using the far-field scattering amplitude of a single inclusion. The results are applicable when the volume concentration of the scatterers is low. Quasi-crystal approximation [60- 61,117,118] is another discrete scattering model applicable for heterogeneous media in which inclusions are located on a regular lattice. The range of validation of different versions of scattering theories are summarized in table 1.

^{a}Weaver’s model gives reasonable predictions for the
velocity and attenuation of polycrystalline alloys in the whole
frequency range [129], but it gives unstable predictions for
two-phase materials, as shown in this work.

^{b}Stanke-Kino’s model has been shown to be equivalent to
Weaver’s model. For polycrystalline alloys, it gives nearly the
same results as that given by Weaver’s model [50]. However, numerical results for two-phase materials calculated using
this model are unavailable.

From table 1 it is seen that the adoption of different types of approximation puts severe limitations on the scope of applications of the existing models. Although each model achieves a certain degree of success, a general multiple scattering theory for heterogeneous materials with strong property fluctuations and valid in the whole frequency range is still missing. As a consequence, the exact dispersion and attenuation behavior of coherent waves have not been obtained yet. Moreover, there are also a number of fundamental problems, such as the dominant mechanism of seismic wave attenuation [9], the existence of the Mohorovičić discontinuity [130-132], applicability of the Kramers-Kronig relation to multiple scattered elastic waves [65,66,133,134], and anomalous negative dispersion of cortical bone [70,73] are full of controversy in the scientific community. Intrigued by the limitations of the existing models, in the present work the author aims at developing a most universal theoretical framework that applicable to a large variety of heterogeneous elastic materials, regardless of weak or strong property fluctuation, with low or high volumetric concentration of inclusions, excited by low or high frequency signals, while giving up all the conventional approximations. Based on the exact solutions to the new model, this work will also provide a series of completely new explanations to the longstanding problems. In addition, it will be demonstrated that the new model is a real prediction model that can be used for microstructure inversion and seismic/ultrasonic data interpretation.

The contents of subsequent sections are arranged as follows: Section II presents the rigorous development of the new model, including Green’s function of the heterogeneous medium and its integral representation, singularity of the Green tensor, derivation of the renormalized Dyson’s equation using Feynman’s diagram and the first-ordersmoothing-approximation, solution of the Dyson equation and the dispersion equations. In Section III, the exact solutions for the dispersion and attenuation of longitudinal and transverse waves will be discussed. The advantages of the new model will be demonstrated through comparison of the numerical results with that calculated from a multiple scattering theory for weak-property-fluctuation materials. Section IV presents a series of practical applications of the new model in seismology, ultrasonic NDE and bone quantitative ultrasound. To show the power of the model, we calculate the exact dispersion and Q-factor curves of seismic waves propagating in the Earth’s lithosphere, the dispersion and attenuation of ultrasonic waves in porous aluminum and Cu-Al alloy, and the dispersion and attenuation curves of ultrasound in human cortical bone. Through comprehensive parametric study, we show that the new model can give a concise and consistent explanation for a broad spectrum of observed scattering phenomena, such as the Q-factors of seismic waves, negative dispersion in bone, spectral splitting and occurrence of two modes. In section V, we give a brief discussion on how to perform successful numerical and experimental verifications of the model. Future work on extension of the current model to incorporate more complicated microstructures are also presented. Finally, the unique features of the new model are summarized and the major conclusions are highlighted in Section VI.

Scattering Theories | λ<<d | λ≈d | λ>>d | WPFM | SPFM | LVF | HVF | V | a |
---|---|---|---|---|---|---|---|---|---|

Biot’s model | × | √ | √ | solid-fluid | √ | × | |||

Weaver’s model | √ | √ | √ | √^{a} |
× | √ | √ | √ | √ |

KA, S-K model | √ | √ | √ | √^{b} |
× | √ | √ | √ | √ |

Foldy-Twersky model | × | × | √ | √ | √ | √ | × | √ | √ |

SFA | √ | × | √ | √ | × | √ | √ | √ | × |

BA | × | √ | √ | √ | × | ||||

RA, PA | √ | × | × | √ | × | ||||

ISA, SSA | × | × | √ | √ | √ | √ | × | × | √ |

FSA, GA | √ | × | × | √ | × | ||||

GCPA | × | × | √ | √ | √ | √ | × | √ | √ |

QCA | × | × | √ | √ | √ | √ |

**Table 1:** Ranges of validation of common scattering models and approximations.

# Theoretical Fundamentals

In this section, we present rigorously the theoretical development of the new multiple scattering theory for strong-property-fluctuation elastic continua. It needs to mention that mathematics plays a central role in developing the new multiple scattering model. A series of advanced mathematical techniques, including tensor analysis, system of integral equations, singularity techniques, Feynman’s diagram, statistical theory of heterogeneous medium, Fourier transform, theory of complex variables and advanced numerical techniques provide us a precious opportunity to develop an accurate and universal theory while introducing as less approximations as possible.

From the theory of elastodynamics we know, the local wave motion in an inhomogeneous media is governed by a set of partial differential equations (PDEs), known as the Navier-Lamé equations [135]. Boundary conditions are specified by the continuity of stress and displacement across the phase boundaries. Thus, the multiple scattering problem is essentially a sophisticated PDE boundary value problem (BVP). From a mathematical point of view, the integral equation (IE) description and the PDE BVP description comprise two equivalent and complementary representations for the same problem. While the PDE BVP description is frequently utilized to solve scattering problems of a single or a finite number of scatterers with regular geometry [135,136], the IE description has proven to be more convenient for dealing with scattering problems in inhomogeneous media with multiple irregular inclusions or even randomly distributed scatterers [48,98,137,138]. Transforming the multiple scattering problem from the PDE BVP description into the IE description is the first key step for the development of the new theory. Green’s function plays a vital role in this transformation procedure. As a fundamental solution to the elastodynamic equation, Green’s function contains the complete information of the whole system and can be used to analyze more complicated source distributions or time varying excitations. When transferred into the frequency-wavenumber domain, Green’s function can also be used to extract dispersion behaviors of plane wave components propagating along different directions. Due to its extreme significance for the theoretical development of this work, we first perform comprehensive study on Green’s functions of heterogeneous media.

# Green’s function and its integral representation

Before embarking on the analysis of wave scattering in a general heterogeneous medium, we first consider the most fundamental problem: scattering of elastic waves by a single inclusion in an infinite homogeneous elastic medium.

**Green’s function of a homogeneous medium with a single inclusion:** The time-harmonic wave propagation
in a heterogeneous medium is governed by the classic
elastodynamics equation [135], given by:

${[{c}_{ijkl}(x){u}_{k,l}]}_{,j}+\rho (x){\omega}^{2}{u}_{i}=0,$ (1)

where ω is the circular frequency, u_{i} denotes the
displacement components, ρ(x) and c_{ijkl}(x) are the mass
density and elastic stiffness. The elastic stiffness has the
following symmetries:

${c}_{ijkl}(x)={c}_{jikl}(x)={c}_{ijlk}(x)={c}_{klij}(x).$ (2)

Throughout this work the Cartesian tensor notation is used. A bold-faced letter represents a vector, tensor or matrix, and italic letters with subscript indices represent tensor components or matrix elements. A comma followed by a coordinate index means taking partial derivative with respect to the corresponding spatial coordinate. The Einstein summation convention, i.e., a repeated index implies summation over that index from 1 to 3, is assumed in this work.

Consider an infinite homogeneous elastic medium in which an inclusion with different density and elastic stiffness is embedded, as shown in figure 1(a). The quantities pertaining to the homogeneous medium and that to the inclusion are discriminated by an attached index “(0)” or “(1)”, respectively.

Green’s function is defined as the resulting field excited
by a time-harmonic unit concentrated force **F** applied at a
generic point **Oʹ** along **e _{a}**, where e

_{a}. represents the coordinate basis of a source-region coordinated system with its origin located at

**Oʹ**. The coordinate basis of the coordinate system Oʹxʹyʹzʹ by no means needs to be the same as that of the coordinate system Oxyz, so at this point we assume they are different from each other. The portions of the field in the substrate and in the inclusion are governed by two different sets of equations, which are given by:

${c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},lj}+{\rho}^{(0)}{\omega}^{2}{G}_{i{a}^{\prime}}+F{a}_{i{a}^{\prime}}\delta (x-{x}^{\prime})=0,$
in V_{o} (3)

${c}_{ijkl}^{(1)}{G}_{k{a}^{\prime},lj}+{\rho}^{(1)}{\omega}^{2}{G}_{i{a}^{\prime}}+F{a}_{i{a}^{\prime}}\delta (x-{x}^{\prime})=0,$
in V_{1} (4)

where V_{0} and V_{1}
represent the volumes occupied by the
substrate and the inclusion, respectively, and a_{ia}ʹ denotes the
directional cosine of **e**_{a}ʹ, a_{ia}=cos(e_{a},e_{i}).

Suppose the inclusion and the substrate are perfectly bonded, so the stress and displacement are continuous at the boundary of the inclusion, thus we have on S.

${c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},l}(x\to {S}^{+}){N}_{j}={c}_{ijkl}^{(1)}{G}_{k{a}^{\prime},l}(x\to {S}^{-}){N}_{j},$ ${G}_{k{a}^{\prime}}(x\to {S}^{+})={G}_{k{a}^{\prime}}(x\to {S}^{-}),$ on S. (5)

In order to obtain the integral representation of
the perturbed Green’s function, we now consider the
corresponding homogeneous Green’s function, which is
defined as the field induced in the same medium but in
the absence of the inclusion by a unit concentrated force
**F** applied at another point **O**ʺ along **e _{α}**, as shown in figure
1(b).

**e**is the coordinate basis of a new coordinate system

_{α}**O**ʺxʺyʺzʺ which is used to describe the source distribution in the homogeneous medium. This function satisfies:

${c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},lj}^{(0)}+F{a}_{i{\alpha}^{\u2033}}\delta (x-{x}^{\u2033})+{\rho}^{(0)}{\omega}^{2}{G}_{i{\alpha}^{\u2033}}^{(0)}=0.$ (6)

Multiplying Eq. (6) and Eq. (3) by G_{ia}, and G_{iα}^{(0)}, respectively, and then subtracting the resulting equations,
we obtain:

${c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},lj}^{(0)}{G}_{i{a}^{\prime}}-{c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},lj}{G}_{i{\alpha}^{\u2033}}^{(0)}+F{a}_{i{\alpha}^{\u2033}}{G}_{i{a}^{\prime}}\delta (x-{x}^{\u2033})-F{a}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}\delta (x-{x}^{\prime})=0.$ (7)

Multiplying Eq. (6) and Eq. (4) by G_{ia}, and G_{iα}^{(0)}, respectively, and then subtracting the resulting equations,
we obtain:

${c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},lj}^{(0)}{G}_{i{a}^{\prime}}-{c}_{ijkl}^{(1)}{G}_{k{a}^{\prime},lj}{G}_{i{\alpha}^{\u2033}}^{(0)}+{\rho}^{(0)}{\omega}^{2}{G}_{i{\alpha}^{\u2033}}^{(0)}{G}_{i{a}^{\prime}}-{\rho}^{(1)}{\omega}^{2}{G}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}+F{a}_{i{\alpha}^{\u2033}}{G}_{i{a}^{\prime}}\delta (x-{x}^{\u2033})-F{a}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}\delta (x-{x}^{\prime})=0.$ (8)

Appling product rule of partial derivatives to Eqs. (7) and (8), we get:

$$\begin{array}{l}{c}_{ijkl}^{(0)}{[}_{{G}_{k{\alpha}^{\u2033},l}^{(0)}}-{c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},l}^{(0)}{G}_{i{a}^{\prime},j}-{[}_{{c}_{ijkl}^{(0)}}\\ +{c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033},j}^{(0)}+F{a}_{i{\alpha}^{\u2033}}{G}_{i{a}^{\prime}}\delta (x-{x}^{\u2033})-F{a}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}\delta (x-{x}^{\prime})=0\end{array}$$ ,(9)

$\begin{array}{l}{c}_{ijkl}^{(0)}{[}_{{G}_{k{\alpha}^{\u2033},l}^{(0)}}-{c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},l}^{(0)}{G}_{i{a}^{\prime},j}-{[}_{{c}_{ijkl}^{(1)}}+{c}_{ijkl}^{(1)}{G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033},j}^{(0)}\\ +{\rho}^{(0)}{\omega}^{2}{G}_{i{\alpha}^{\u2033}}^{(0)}{G}_{i{a}^{\prime}}-{\rho}^{(1)}{\omega}^{2}{G}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}+F{a}_{i{\alpha}^{\u2033}}{G}_{i{a}^{\prime}}\delta (x-{x}^{\u2033})-F{a}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}\delta (x-{x}^{\prime})=0.\end{array}$ (10)

Considering the symmetry of the elastic stiffness, Eqs. (9) and (10) can be simplified as:

${c}_{ijkl}^{(0)}{[{G}_{k{\alpha}^{\u2033},l}^{(0)}{G}_{i{a}^{\prime}}]}_{,j}-{[{c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033}}^{(0)}]}_{,j}+F{a}_{i{\alpha}^{\u2033}}{G}_{i{a}^{\prime}}\delta (x-{x}^{\u2033})-F{a}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}\delta (x-{x}^{\prime})=0,$ (11)

$\begin{array}{l}{c}_{ijkl}^{(0)}{[}_{{G}_{k{\alpha}^{\u2033},l}^{(0)}}-{[}_{{c}_{ijkl}^{(1)}}+({c}_{ijkl}^{(1)}-{c}_{ijkl}^{(0)}){G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033},j}^{(0)}\\ -({\rho}^{(1)}-{\rho}^{(0)}){\omega}^{2}{G}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}+F{a}_{i{\alpha}^{\u2033}}{G}_{i{a}^{\prime}}\delta (x-{x}^{\u2033})-F{a}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}\delta (x-{x}^{\prime})=0.\end{array}$ (12)

Integrating Eq. (11) over the domain V_{0}, and then applying
Gauss’s divergence theorem, we obtain:

$\begin{array}{l}{\displaystyle {\iiint}_{{V}_{0}}F{a}_{i{\alpha}^{\u2033}}\delta (x-{x}^{\prime}){G}_{i{a}^{\prime}}dV}-{\displaystyle {\iiint}_{{V}_{0}}F{a}_{i{a}^{\prime}}\delta (x-{x}^{\prime}){G}_{i{\alpha}^{\u2033}}dV}\\ +{\displaystyle {\u222f}_{{S}^{\infty}}[{c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},l}^{(0)}{G}_{i{a}^{\prime}}-{c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033}}^{(0)}]}{N}_{j}dS+{\displaystyle {\u222f}_{{S}_{1}}[{c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},l}^{(0)}{G}_{i{a}^{\prime}}-{c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033}}^{(0)}]}(-{N}_{j})dS=0.\end{array}$ (13)

A negative sign is introduced in front of N_{j} in the integral
over S_{1} because the out normal of volume V_{0} corresponds to
the negative of **N**, which is shown in figure 1. S^{∞} represents
an imaginary surface that lies infinitely far from the source
and the inclusion.

Integrating Eq. (12) over the volume V_{1} and applying
Gauss’s divergence theorem, we obtain:

$\begin{array}{l}{\displaystyle {\iiint}_{{V}_{1}}F{a}_{i{\alpha}^{\u2033}}\delta (x-{x}^{\prime}){G}_{i{a}^{\prime}}dV}-{\displaystyle {\iiint}_{{V}_{1}}F{a}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}\delta (x-{x}^{\prime})dV}+{\displaystyle {\u222f}_{{S}_{1}}[{c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},l}^{(0)}{G}_{i{a}^{\prime}}-{c}_{ijkl}^{(1)}{G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033}}^{(0)}]}{N}_{j}dS\\ +{\displaystyle {\iiint}_{{V}_{1}}[({c}_{ijkl}^{(1)}-{c}_{ijkl}^{(0)}){G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033},j}^{(0)}-({\rho}^{(1)}-{\rho}^{(0)}){\omega}^{2}{G}_{i{a}^{\prime}}{G}_{i{\alpha}^{\u2033}}^{(0)}]dV}=0.\end{array}$ (14)

Adding Eqs. (13) and (14) and then invoking the boundary conditions Eq. (5), we have:

$\begin{array}{l}{\displaystyle {\iiint}_{{V}_{0}+{V}_{1}}F{a}_{i{\alpha}^{\u2033}}\delta (x-{x}^{\u2033}){G}_{i{a}^{\prime}}dV}-{\displaystyle {\iiint}_{{V}_{0}+{V}_{1}}F{a}_{i{a}^{\prime}}\delta (x-{x}^{\prime}){G}_{i{\alpha}^{\u2033}}^{(0)}dV}+{\displaystyle {\u222f}_{{S}^{\infty}}[{c}_{ijkl}^{(0)}{G}_{k{\alpha}^{\u2033},l}^{(0)}{G}_{i{a}^{\prime}}-{c}_{ijkl}^{(0)}{G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033}}^{(0)}]}{N}_{j}dS\\ +{\displaystyle {\iiint}_{{V}_{1}}[({c}_{ijkl}^{(1)}-{c}_{ijkl}^{(0)}){G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033},j}^{(0)}-({\rho}^{(1)}-{\rho}^{(0)}){\omega}^{2}{G}_{i{a}^{\prime}}{G}_{i\alpha}^{(0)}]dV}=0.\end{array}$ (15)

Throughout this work we assume that all the materials
have a small damping, so both the homogeneous and the
inhomogeneous Green’s functions decay exponentially as
the distance between the source point and the field point
increases. Consequently, these functions tend to zero at
infinity and the integral over S^{∞} vanishes. Furthermore, we
assume that the coordinate basis of the coordinate systems **O**"x_{1}"x_{2}"x_{3}" and **O**"x_{1}"x_{2}"x_{3}" coincide with that of the coordinate
Ox_{1}x_{2}x_{3}, thus a_{ia}′ = δ_{ia}′., Eq. (15) can be simplified as:

$F{G}_{{\alpha}^{\u2033}{a}^{\prime}}-F{G}_{{a}^{\prime}{\alpha}^{\u2033}}^{(0)}+{\displaystyle {\iiint}_{{V}_{1}}[({c}_{ijkl}^{(1)}-{c}_{ijkl}^{(0)}){G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033},j}^{(0)}-({\rho}^{(1)}-{\rho}^{(0)}){\omega}^{2}{G}_{i{a}^{\prime}}{G}_{i\alpha}^{(0)}]dV}=0.$ (16)

Finally, we obtain the integral representation of the inhomogeneous Green function expressed in terms of the reference homogeneous Green’s function,

${G}_{{\alpha}^{\u2033}{a}^{\prime}}={G}_{{a}^{\prime}{\alpha}^{\u2033}}^{(0)}+\frac{1}{F}{\displaystyle {\iiint}_{{V}_{1}}[-({c}_{ijkl}^{(1)}-{c}_{ijkl}^{(0)}){G}_{k{a}^{\prime},l}{G}_{i{\alpha}^{\u2033},j}^{(0)}+({\rho}^{(1)}-{\rho}^{(0)}){\omega}^{2}{G}_{i{a}^{\prime}}{G}_{i\alpha}^{(0)}]dV}.$ (17)

To further simplify the expression of Eq. (17), we decompose the density and elastic stiffness of the inclusion into two parts, one corresponds to the ensemble averaged value, for this case it equals to the properties of the substrate, and the other corresponds to the property fluctuations,

${c}_{ijkl}^{(1)}={c}_{ijkl}^{(0)}+\delta {c}_{ijkl}^{(1)},$ ${\rho}^{(1)}={\rho}^{(0)}+\delta {\rho}^{(1)}.$ (18)

Substitution of (18) into (17) yields:

$${G}_{{\alpha}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})={G}_{{a}^{\prime}{\alpha}^{\u2033}}^{(0)}({x}^{\prime},{x}^{\u2033})+\frac{1}{F}{\displaystyle {\iiint}_{{V}_{1}}\begin{array}{l}[-\delta {c}_{ijkl}^{(1)}{G}_{k{a}^{\prime},l}(x,{x}^{\prime}){G}_{i{\alpha}^{\u2033},j}^{(0)}(x,{x}^{\u2033})\\ +\delta {\rho}^{(1)}{\omega}^{2}{G}_{i{a}^{\prime}}(x,{x}^{\prime}){G}_{i{\alpha}^{\u2033}}^{(0)}(x,{x}^{\u2033})]dV\end{array}},$$ (19)

where Green’s function of the homogeneous medium is given by:

${G}_{i{a}^{\prime}}^{0}(x,{x}^{\prime},\omega )=\frac{F}{4\pi}\frac{{\delta}_{i{\alpha}^{\prime}}}{\mu}\frac{{e}^{i{k}_{T}\left|x-{x}^{\prime}\right|}}{\left|x-{x}^{\prime}\right|}+\frac{F}{4\pi \rho {\omega}^{2}}\frac{{\partial}^{2}}{\partial {x}_{i}\partial {{x}^{\prime}}_{a}}\left[\frac{{e}^{i{k}_{L}\left|x-{x}^{\prime}\right|}}{\left|x-{x}^{\prime}\right|}-\frac{{e}^{i{k}_{T}\left|x-{x}^{\prime}\right|}}{\left|x-{x}^{\prime}\right|}\right].$ (20)

For a detailed derivation of this expression, readers are referred to the author’s monograph [129]. It is seen from Eq. (20) that the homogeneous Green’s function has the following symmetry:

${G}_{i{a}^{\prime}}^{0}(x,{x}^{\prime})={G}_{{a}^{\prime}i}^{0}(x,{x}^{\prime})={G}_{{a}^{\prime}i}^{0}({x}^{\prime},x)={G}_{i{a}^{\prime}}^{0}({x}^{\prime},x).$ (21)

Applying these relations to Eq. (19), we obtain:

${G}_{{\alpha}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})={G}_{{\alpha}^{\u2033}{a}^{\prime}}^{(0)}({x}^{\u2033},{x}^{\prime})+\frac{1}{F}{\displaystyle {\iiint}_{{V}_{1}}\begin{array}{l}[-\delta {c}_{ijkl}^{(1)}{G}_{k{a}^{\prime},l}(x,{x}^{\prime}){G}_{{\alpha}^{\u2033}i,j}^{(0)}({x}^{\u2033},x)\\ +\delta {\rho}^{(1)}{\omega}^{2}{G}_{i{a}^{\prime}}(x,{x}^{\prime}){G}_{{\alpha}^{\u2033}i}^{(0)}({x}^{\u2033},{x}^{\prime})]dV\end{array}}.$ (22)

Eq. (22) is the major result in this section. It establishes the relationship between the perturbed Green’s function and Green’s function of the homogeneous medium. From a mathematical point of view, Eq. (22) is a system of Fredholm equations of the second kind, which can be solved numerically by introducing certain discretization schemes. At this point it is meaningful to give a physical explanation of Eq. (22). It tells us the perturbed Green’s function can be expressed as a summation of the unperturbed Green’s function and a perturbation term, and the perturbation term is given by a spatial convolution of the perturbed and unperturbed Green’s function weighted by the property fluctuation. When the fluctuation of the material properties is weak, the perturbation of the inhomogeneous Green’s function is small compared to the homogeneous one. Based on this observation, M. Born suggested to replace the perturbed Green’s function appeared in the kernel by the unperturbed Green’s function, and thus an explicit expression for the perturbed function is obtained. This approximation is known as the Born approximation. Here we do not use this approximation and proceed in an accurate manner.

**Green’s function for a heterogeneous medium with multiple inclusions: ** Now we consider a medium with
multiple scatterers. A schematic diagram is shown in figure 2.

Obviously, the above derivation can be straightforwardly extended to inhomogeneous medium with multiple inclusions, and the resulting equation is:

${G}_{{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})={G}_{{\beta}^{\u2033}{a}^{\prime}}^{0}({x}^{\u2033},{x}^{\prime})+\frac{1}{F}{\displaystyle \sum _{n=1}^{N}{\displaystyle {\int}_{{V}_{n}}\begin{array}{l}[\delta {\rho}^{(n)}{\omega}^{2}{G}_{i{a}^{\prime}}(x,{x}^{\prime}){G}_{{\beta}^{\u2033}i}^{0}({x}^{\u2033},x)\\ -\delta {c}_{ijkl}^{(n)}{G}_{k{a}^{\prime},l}(x,{x}^{\prime}){G}_{{\beta}^{\u2033}i,j}^{0}({x}^{\u2033},x)]dV\end{array}}},$ (23)

where δρ^{(n)} and $\delta {c}_{ijkl}^{(n)}$ represent the material property fluctuation of the n-th inclusion.

One needs to keep in mind that all the boundary conditions
are naturally incorporated into this equation. From Eq. (23)
it is seen that the perturbed Green’s function is expressed
as the summation of the unperturbed Green’s function and
a perturbation term which includes contribution of all the
inclusions. Meanwhile, the internal field of each inclusion
is dependent on all other inclusions and the unperturbed
Green’s function. At this point we need to point out that
by neglecting the interactions among different scatterers,
we obtain the independent scattering approximation (ISA)
of the perturbed field [38-41]. ISA is frequently used in
combination with the Born approximation and yields an
explicit expression for G_{βʺaʹ}. If the property fluctuation
is weak or the volume concentration of the scatterers is
sufficiently low, each scatterer approximately interacts
with the incident wave independently and ISA can give
reasonable predictions. However, if these conditions are not
satisfied, i.e., material exhibits strong property fluctuation
or contains notable volume fraction of inclusions, the
interactions among all the scatterers cannot be ignored and
the multiple scattering theory is necessary to fully capture
the propagation behavior.

For a general heterogeneous material in which the inclusions are densely distributed in the whole space, the material property fluctuations are most conveniently represented by functions of spatial coordinates, and Eq. (23) is rewritten as:

${G}_{{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})={G}_{{\beta}^{\u2033}{a}^{\prime}}^{0}({x}^{\u2033},{x}^{\prime})+\frac{1}{F}{\displaystyle {\int}_{V}[\delta \rho (x){\omega}^{2}{G}_{i{a}^{\prime}}(x,{x}^{\prime}){G}_{{\beta}^{\u2033}i}^{0}({x}^{\u2033},x)-\delta {c}_{ijkl}(x){G}_{k{a}^{\prime},l}(x,{x}^{\prime}){G}_{{\beta}^{\u2033}i,j}^{0}({x}^{\u2033},x)]dV}.$ (24)

Here comes a peculiar problem. Since the inclusions are densely distributed, and may occupy a finite percentage of the total volume of the whole medium, which material should be chosen as the reference medium? The answer to this question will be clear after we find out the singularity of the Green tensor and introduce the renormalization scheme in Section II.C. Contrary to our intuition, the proper choice of the reference material is neither either phase of the constituent materials nor the volumetric average of the component phases.

**Figure 1:** Definition of the single-inclusion Green’s function (a) and the homogeneous Green’s function (b).

**Figure 2:** Schematic diagram of an inhomogeneous medium with multiple inclusions.

**Integral representation of the perturbed field:**Equation (24) is the governing equation for the displacement
Green’s function. To complete the description of the elastic
field, we also need the strain Green’s function. The strain
tensor of a general elastic medium is defined by:

${\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}}=\frac{1}{2}({u}_{{\alpha}^{\u2033},{\beta}^{\u2033}}+{u}_{{\beta}^{\u2033},{\alpha}^{\u2033}}).$ (25)

Consequently, the Green function for strain is given by:

$\begin{array}{l}\frac{1}{2}[{G}_{{\beta}^{\u2033}{a}^{\prime},{\alpha}^{\u2033}}({x}^{\u2033},{x}^{\prime})+{G}_{{\alpha}^{\u2033}{a}^{\prime},{\beta}^{\u2033}}({x}^{\u2033},{x}^{\prime})]=\frac{1}{2}[{G}_{{\beta}^{\u2033}{a}^{\prime},{\alpha}^{\u2033}}^{0}({x}^{\u2033},{x}^{\prime})+{G}_{{\alpha}^{\u2033}{a}^{\prime},{\beta}^{\u2033}}^{0}({x}^{\u2033},{x}^{\prime})]\\ +\frac{1}{F}{\displaystyle {\int}_{V}\left[\delta \rho (x){\omega}^{2}\frac{1}{2}[{G}_{{\beta}^{\u2033}i,{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}i,{\beta}^{\u2033}}^{0}({x}^{\u2033},x)]{G}_{i{a}^{\prime}}(x,{x}^{\prime})-\frac{1}{2}[{G}_{{\beta}^{\u2033}i,j{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}i,j{\beta}^{\u2033}}^{0}({x}^{\u2033},x)]\delta {c}_{ijkl}(x){G}_{k{a}^{\prime},l}(x,{x}^{\prime})\right]dV}.\end{array}$ (26)

Considering the elastic stiffness variation tensor δc_{ijkl} (x) has
the same symmetry as c_{ijkl} (x), we can write (24) and (26) as

$\begin{array}{l}{G}_{{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})={G}_{{\beta}^{\u2033}{a}^{\prime}}^{0}({x}^{\u2033},{x}^{\prime})+\frac{1}{F}{\displaystyle {\int}_{V}\{\delta \rho (x){\omega}^{2}{G}_{{\beta}^{\u2033}i}^{0}({x}^{\u2033},x){G}_{i{a}^{\prime}}(x,{x}^{\prime})}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-\frac{1}{2}[{G}_{{\beta}^{\u2033}i,j}^{0}({x}^{\u2033},x)+{G}_{{\beta}^{\u2033}j,i}^{0}({x}^{\u2033},x)]\delta {c}_{ijkl}(x)\frac{1}{2}[{G}_{k{a}^{\prime},l}(x,{x}^{\prime})+{G}_{l{a}^{\prime},k}(x,{x}^{\prime})]\}dV,\end{array}$ (27)

$\begin{array}{l}\frac{1}{2}[{G}_{{\beta}^{\u2033}{a}^{\prime},{\alpha}^{\u2033}}({x}^{\u2033},{x}^{\prime})+{G}_{{\alpha}^{\u2033}{a}^{\prime},{\beta}^{\u2033}}({x}^{\u2033},{x}^{\prime})]\\ =\frac{1}{2}[{G}_{{\beta}^{\u2033}{a}^{\prime},{\alpha}^{\u2033}}^{0}({x}^{\u2033},{x}^{\prime})+{G}_{{\alpha}^{\u2033}{a}^{\prime},{\beta}^{\u2033}}^{0}({x}^{\u2033},{x}^{\prime})]+\frac{1}{F}{\displaystyle {\int}_{V}\{\delta \rho (x){\omega}^{2}\frac{1}{2}[{G}_{{\beta}^{\u2033}i,{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}i,{\beta}^{\u2033}}^{0}({x}^{\u2033},x)]{G}_{i{a}^{\prime}}(x,{x}^{\prime})}\\ -\frac{1}{4}[{G}_{{\beta}^{\u2033}i,j{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\beta}^{\u2033}j,i{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}i,j{\beta}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}j,i{\beta}^{\u2033}}^{0}({x}^{\u2033},x)]\delta {c}_{ijkl}(x)\frac{1}{2}[{G}_{k{a}^{\prime},l}(x,{x}^{\prime})+{G}_{l{a}^{\prime},k}(x,{x}^{\prime})]\}dV.\end{array}$ (28)

Equations (27) and (28) can be expressed in a matrix form:

$\left[\begin{array}{l}{G}_{{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})\\ {\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})\end{array}\right]=\left[\begin{array}{l}{G}_{{\beta}^{\u2033}{a}^{\prime}}^{0}({x}^{\u2033},{x}^{\prime})\\ {\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{a}^{\prime}}^{0}({x}^{\u2033},{x}^{\prime})\end{array}\right]+\frac{1}{F}{\displaystyle {\int}_{V}\left[\begin{array}{l}{G}_{{\beta}^{\u2033}i}^{0}({x}^{\u2033},x)\text{\hspace{1em}}-{\epsilon}_{{\beta}^{\u2033}ij}^{0}({x}^{\u2033},x)\\ {\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}i}^{0}({x}^{\u2033},x)\text{\hspace{0.17em}}\text{\hspace{0.17em}}-{E}_{{\alpha}^{\u2033}{\beta}^{\u2033}ij}^{0}({x}^{\u2033},x)\end{array}\right]\left[\begin{array}{l}\delta \rho (x){\omega}^{2}{\delta}_{ij}\text{\hspace{1em}}\text{\hspace{0.17em}}0\\ \text{\hspace{1em}}\text{\hspace{0.17em}}0\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\delta {c}_{ijkl}(x)\end{array}\right]\left[\begin{array}{l}{G}_{j{a}^{\prime}}(x,{x}^{\prime})\\ {\epsilon}_{kl{a}^{\prime}}(x,{x}^{\prime})\end{array}\right]dV},$ (29)

where

${\epsilon}_{{\beta}^{\u2033}ij}^{0}({x}^{\u2033},x)=\frac{1}{2}[{G}_{{\beta}^{\u2033}i,j}^{0}({x}^{\u2033},x)+{G}_{{\beta}^{\u2033}j,i}^{0}({x}^{\u2033},x)]$, ${\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}i}^{0}({x}^{\u2033},x)=\frac{1}{2}[{G}_{{\beta}^{\u2033}i,{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}i,{\beta}^{\u2033}}^{0}({x}^{\u2033},x)]$ (30)

${E}_{{\alpha}^{\u2033}{\beta}^{\u2033}ij}^{0}({x}^{\u2033},x)=\frac{1}{4}[{G}_{{\beta}^{\u2033}i,j{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\beta}^{\u2033}j,i{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}i,j{\beta}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}j,i{\beta}^{\u2033}}^{0}({x}^{\u2033},x)]$ (31)

${\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})=\frac{1}{2}[{G}_{{\beta}^{\u2033}{a}^{\prime},{\alpha}^{\u2033}}({x}^{\u2033},{x}^{\prime})+{G}_{{\alpha}^{\u2033}{a}^{\prime},{\beta}^{\u2033}}({x}^{\u2033},{x}^{\prime})]$, ${\epsilon}_{kl{a}^{\prime}}(x,{x}^{\prime})=\frac{1}{2}[{G}_{k{a}^{\prime},l}(x,{x}^{\prime})+{G}_{l{a}^{\prime},k}(x,{x}^{\prime})]$. (32)

Note the homogeneous Green’s function G^{o}_{β"i}(x^{n},x) given
by Eq. (20) can be rewritten as G^{o}_{β"i}(x^{n},x), where:

${G}_{{\beta}^{\u2033}{i}^{\u2033}}^{0}({x}^{\u2033},x,\omega )=\frac{F}{4\pi}\frac{{\delta}_{\beta i}}{\mu}\frac{{e}^{i{k}_{T}\left|{x}^{\u2033}-x\right|}}{\left|{x}^{\u2033}-x\right|}-\frac{F}{4\pi \rho {\omega}^{2}}\frac{{\partial}^{2}}{\partial {{x}^{\u2033}}_{i}\partial {{x}^{\u2033}}_{\beta}}\left[\frac{{e}^{i{k}_{L}\left|{x}^{\u2033}-x\right|}}{\left|{x}^{\u2033}-x\right|}-\frac{{e}^{i{k}_{T}\left|{x}^{\u2033}-x\right|}}{\left|{x}^{\u2033}-x\right|}\right].$ (33)

From Eq. (33) one can easily find:

$\frac{\partial {G}_{{\beta}^{\u2033}{i}^{\u2033}}^{0}}{\partial {x}_{j}}=-\frac{\partial {G}_{{\beta}^{\u2033}{i}^{\u2033}}^{0}}{\partial {{x}^{\u2033}}_{j}}.$ (34)

Consequently, we have the following identities:

${\epsilon}_{{\beta}^{\u2033}ij}^{0}({x}^{\u2033},x)=-{\epsilon}_{{\beta}^{\u2033}{i}^{\u2033}{j}^{\u2033}}^{0}({x}^{\u2033},x),$ ${\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}i}^{0}({x}^{\u2033},x)={\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{i}^{\u2033}}^{0}({x}^{\u2033},x),$ ${E}_{{\alpha}^{\u2033}{\beta}^{\u2033}ij}^{0}({x}^{\u2033},x)=-{E}_{{\alpha}^{\u2033}{\beta}^{\u2033}{i}^{\u2033}{j}^{\u2033}}^{0}({x}^{\u2033},x),$ (35)

where

${\epsilon}_{{\beta}^{\u2033}{i}^{\u2033}{j}^{\u2033}}^{0}({x}^{\u2033},x)=\frac{1}{2}[{G}_{{\beta}^{\u2033}{i}^{\u2033},{j}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\beta}^{\u2033}{j}^{\u2033},{i}^{\u2033}}^{0}({x}^{\u2033},x)],$ ${\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{i}^{\u2033}}^{0}({x}^{\u2033},x)=\frac{1}{2}[{G}_{{\beta}^{\u2033}{i}^{\u2033},{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}{i}^{\u2033},{\beta}^{\u2033}}^{0}({x}^{\u2033},x)],$ (36)

${E}_{{\alpha}^{\u2033}{\beta}^{\u2033}{i}^{\u2033}{j}^{\u2033}}^{0}({x}^{\u2033},x)=\frac{1}{4}[{G}_{{\beta}^{\u2033}{i}^{\u2033},{j}^{\u2033}{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\beta}^{\u2033}{j}^{\u2033},{i}^{\u2033}{\alpha}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}{i}^{\u2033},{j}^{\u2033}{\beta}^{\u2033}}^{0}({x}^{\u2033},x)+{G}_{{\alpha}^{\u2033}{j}^{\u2033},{i}^{\u2033}{\beta}^{\u2033}}^{0}({x}^{\u2033},x)].$ (37)

Substituting F=1 newton into Eq. (29) and considering the relations given by Eq. (35), we can simplify Eq. (29) as:

$\begin{array}{l}\left[\begin{array}{l}{G}_{{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})\\ {\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{a}^{\prime}}({x}^{\u2033},{x}^{\prime})\end{array}\right]=\left[\begin{array}{l}{G}_{{\beta}^{\u2033}{a}^{\prime}}^{0}({x}^{\u2033},{x}^{\prime})\\ {\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{a}^{\prime}}^{0}({x}^{\u2033},{x}^{\prime})\end{array}\right]\\ +{\displaystyle {\int}_{V}\left[\begin{array}{l}{G}_{{\beta}^{\u2033}{i}^{\u2033}}^{0}({x}^{\u2033},x)\text{\hspace{1em}}{\epsilon}_{{\beta}^{\u2033}{i}^{\u2033}{j}^{\u2033}}^{0}({x}^{\u2033},x)\\ {\epsilon}_{{\alpha}^{\u2033}{\beta}^{\u2033}{i}^{\u2033}}^{0}({x}^{\u2033},x)\text{\hspace{0.17em}}\text{\hspace{0.17em}}{E}_{{\alpha}^{\u2033}{\beta}^{\u2033}{i}^{\u2033}{j}^{\u2033}}^{0}({x}^{\u2033},x)\end{array}\right]\left[\begin{array}{l}\delta \rho (x){\omega}^{2}{\delta}_{ij}\text{\hspace{1em}}\text{\hspace{0.17em}}0\\ \text{\hspace{1em}}\text{\hspace{0.17em}}0\text{\hspace{1em}}\text{\hspace{1em}}\delta {c}_{ijkl}(x)\end{array}\right]\left[\begin{array}{l}{G}_{j{a}^{\prime}}(x,{x}^{\prime})\\ {\epsilon}_{kl{a}^{\prime}}(x,{x}^{\prime})\end{array}\right]dV}.\end{array}$ (38)

For the convenience of subsequent discussion, we rewrite Eq. (38) in a more compact form:

Ψ(x^{"} - x^{'})=Ψ°(x^{"} - x^{'}) +∫∫∫_{V(x)}Γ(x^{"} - x)Π(x)Ψ(x- x^{'})d³x, (39)

where

$\Psi ({x}^{\u2033}-{x}^{\prime})=\left[\begin{array}{ccc}{G}_{11}& {G}_{12}& {G}_{13}\\ {G}_{21}& {G}_{22}& {G}_{23}\\ {G}_{31}& {G}_{32}& {G}_{33}\\ {G}_{11,1}& {G}_{12,1}& {G}_{13,1}\\ {G}_{21,2}& {G}_{22,2}& {G}_{23,2}\\ {G}_{31,3}& {G}_{32,3}& {G}_{33,3}\\ {G}_{21,3}+{G}_{31,2}& {G}_{22,3}+{G}_{32,2}& {G}_{23,3}+{G}_{33,2}\\ {G}_{11,3}+{G}_{31,1}& {G}_{12,3}+{G}_{32,1}& {G}_{13,3}+{G}_{33,1}\\ {G}_{21,1}+{G}_{11,2}& {G}_{22,1}+{G}_{12,2}& {G}_{23,1}+{G}_{13,2}\end{array}\right],{\Psi}^{0}({x}^{\u2033}-{x}^{\prime})=\left[\begin{array}{ccc}{G}_{11}^{0}& {G}_{12}^{0}& {G}_{13}^{0}\\ {G}_{21}^{0}& {G}_{22}^{0}& {G}_{23}^{0}\\ {G}_{31}^{0}& {G}_{32}^{0}& {G}_{33}^{0}\\ {G}_{11,1}^{0}& {G}_{12,1}^{0}& {G}_{13,1}^{0}\\ {G}_{21,2}^{0}& {G}_{22,2}^{0}& {G}_{23,2}^{0}\\ {G}_{31,3}^{0}& {G}_{32,3}^{0}& {G}_{33,3}^{0}\\ {G}_{21,3}^{0}+{G}_{31,2}^{0}& {G}_{22,3}^{0}+{G}_{32,2}^{0}& {G}_{23,3}^{0}+{G}_{33,2}^{0}\\ {G}_{11,3}^{0}+{G}_{31,1}^{0}& {G}_{12,3}^{0}+{G}_{32,1}^{0}& {G}_{13,3}^{0}+{G}_{33,1}^{0}\\ {G}_{21,1}^{0}+{G}_{11,2}^{0}& {G}_{22,1}^{0}+{G}_{12,2}^{0}& {G}_{23,1}^{0}+{G}_{13,2}^{0}\end{array}\right],$ (40)

$\Pi (x)=\left[\begin{array}{ccccccccc}\delta \rho {\omega}^{2}& 0& 0& 0& 0& 0& 0& 0& 0\\ 0& \delta \rho {\omega}^{2}& 0& 0& 0& 0& 0& 0& 0\\ 0& 0& \delta \rho {\omega}^{2}& 0& 0& 0& 0& 0& 0\\ 0& 0& 0& \delta {c}_{11}& \delta {c}_{12}& \delta {c}_{13}& \delta {c}_{14}& \delta {c}_{15}& \delta {c}_{16}\\ 0& 0& 0& \delta {c}_{12}& \delta {c}_{22}& \delta {c}_{23}& \delta {c}_{24}& \delta {c}_{25}& \delta {c}_{26}\\ 0& 0& 0& \delta {c}_{13}& \delta {c}_{23}& \delta {c}_{33}& \delta {c}_{34}& \delta {c}_{35}& \delta {c}_{36}\\ 0& 0& 0& \delta {c}_{14}& \delta {c}_{24}& \delta {c}_{34}& \delta {c}_{44}& \delta {c}_{45}& \delta {c}_{46}\\ 0& 0& 0& \delta {c}_{15}& \delta {c}_{25}& \delta {c}_{35}& \delta {c}_{45}& \delta {c}_{55}& \delta {c}_{56}\\ 0& 0& 0& \delta {c}_{16}& \delta {c}_{26}& \delta {c}_{36}& \delta {c}_{46}& \delta {c}_{56}& \delta {c}_{66}\end{array}\right],$ (41)

$\Gamma ({x}^{\u2033}-x)=\left[\begin{array}{cc}A& B\\ {B}^{T}& D\end{array}\right],$ (42)

and

$A=\left[\begin{array}{ccc}{G}_{11}^{0}& {G}_{12}^{0}& {G}_{13}^{0}\\ {G}_{21}^{0}& {G}_{22}^{0}& {G}_{23}^{0}\\ {G}_{31}^{0}& {G}_{32}^{0}& {G}_{33}^{0}\end{array}\right],B=\left[\begin{array}{cccccc}{G}_{11,1}^{0}& {G}_{12,2}^{0}& {G}_{13,3}^{0}& {G}_{12,3}^{0}+{G}_{13,2}^{0}& {G}_{11,3}^{0}+{G}_{13,1}^{0}& {G}_{12,1}^{0}+{G}_{11,2}^{0}\\ {G}_{21,1}^{0}& {G}_{22,2}^{0}& {G}_{23,3}^{0}& {G}_{22,3}^{0}+{G}_{23,2}^{0}& {G}_{21,3}^{0}+{G}_{23,1}^{0}& {G}_{22,1}^{0}+{G}_{21,2}^{0}\\ {G}_{31,1}^{0}& {G}_{32,2}^{0}& {G}_{33,3}^{0}& {G}_{32,3}^{0}+{G}_{33,2}^{0}& {G}_{31,3}^{0}+{G}_{33,1}^{0}& {G}_{32,1}^{0}+{G}_{31,2}^{0}\end{array}\right],$ (43)

$D=\left[\begin{array}{l}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{G}_{11,11}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{12,21}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{G}_{13,31}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{12,31}^{0}+{G}_{13,21}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{11,31}^{0}+{G}_{13,11}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{0.17em}}{G}_{12,11}^{0}+{G}_{11,21}^{0}\\ \text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{G}_{21,12}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{22,22}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{G}_{23,32}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{22,32}^{0}+{G}_{23,22}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{21,32}^{0}+{G}_{23,12}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{22,12}^{0}+{G}_{21,22}^{0}\\ \text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{G}_{31,13}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{32,23}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{G}_{33,33}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{32,33}^{0}+{G}_{33,23}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{31,33}^{0}+{G}_{33,13}^{0}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{G}_{32,13}^{0}+{G}_{31,23}^{0}\\ {G}_{21,13}^{0}+{G}_{31,12}^{0}\text{\hspace{1em}}{G}_{22,23}^{0}+{G}_{32,22}^{0}\text{\hspace{1em}}{G}_{23,33}^{0}+{G}_{33,32}^{0}\text{\hspace{1em}}{G}_{22,33}^{0}+{G}_{33,22}^{0}+2{G}_{23,23}^{0}\text{\hspace{1em}}{G}_{21,33}^{0}+{G}_{23,13}^{0}+{G}_{31,32}^{0}+{G}_{33,12}^{0}\text{\hspace{1em}}{G}_{21,23}^{0}+{G}_{22,13}^{0}+{G}_{31,22}^{0}+{G}_{32,12}^{0}\\ {G}_{11,31}^{0}+{G}_{31,11}^{0}\text{\hspace{1em}}{G}_{12,32}^{0}+{G}_{32,12}^{0}\text{\hspace{1em}}{G}_{13,33}^{0}+{G}_{33,13}^{0}\text{\hspace{1em}}{G}_{12,33}^{0}+{G}_{32,31}^{0}+{G}_{13,23}^{0}+{G}_{33,21}^{0}\text{\hspace{1em}}{G}_{11,33}^{0}+{G}_{33,11}^{0}+2{G}_{13,13}^{0}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{G}_{12,13}^{0}+{G}_{11,23}^{0}+{G}_{32,11}^{0}+{G}_{31,21}^{0}\\ {G}_{11,12}^{0}+{G}_{21,11}^{0}\text{\hspace{1em}}{G}_{22,21}^{0}+{G}_{12,22}^{0}\text{\hspace{1em}}{G}_{23,31}^{0}+{G}_{13,32}^{0}\text{\hspace{1em}}{G}_{12,32}^{0}+{G}_{22,31}^{0}+{G}_{13,22}^{0}+{G}_{23,21}^{0}\text{\hspace{1em}}{G}_{21,31}^{0}+{G}_{11,32}^{0}+{G}_{23,11}^{0}+{G}_{13,12}^{0}\text{\hspace{1em}}{G}_{11,22}^{0}+{G}_{22,11}^{0}+2{G}_{12,12}^{0}\end{array}\right].$ (44)

One can easily verify that **Γ** is a symmetric matrix, i.e., **Γ ^{T}=Γ**.

From Eq. (39) it is seen that the following integral is involved:

${\iiint}_{V(x)}\Gamma ({x}^{\u2033}-x)\Pi (x)\Psi (x-{x}^{\prime}){d}^{3}x$,

where Γ −(x^{n}-x) is composed of homogeneous Green’s
function and its spatial derivatives up to second order.
Meanwhile, we see that the domain of the integration is
the whole space of the heterogeneous medium. A question
naturally arises here: Since Green’s functions and their
derivatives are not well defined at G_{β"i"}^{0}, how can we
calculate these integrals? As one can see, Green’s functions
and their derivatives become infinite when **x** approaches **xʺ**,
this property is called the singularity of Green’s functions.
Obviously, Green’s function and its derivatives of different
orders tend to infinity with different speed as **x** approaches
**xʺ**, this means that they have different degrees of singularity.
To properly define and calculate these integrals, we need to
introduce the concept of shape-dependent principal value,
which will be detailed in the next section.

# Singularity of Green’s tensor and the renormalized integral equation

The singularity of electromagnetic (EM) Green’s function was first discovered by Bladel [139]. He found that the field distribution in the source region cannot be calculated using the conventional dyadic Green’s function, instead, a term proportional to Dirac-delta function must be subtracted in order to obtain the correct result. Finkel’berg [140] incorporated the singularity of EM Green’s functions in the development of an effective medium theory for dielectric mixtures. Kong and Tsang [99-109] further calculated the singularities of EM Green’s function of heterogeneous dielectrics with different spatial correlation functions, including the Gaussian, exponential and Von-Karman correlation functions, and derived effective dielectric constants for inhomogeneous media with spherical and ellipsoidal inclusions. They also derived the explicit expressions of backscattering cross section and applied them in satellite remote sensing. Lakhtakia and coworkers extended Kong and Tsang’s theory to EM anisotropic media, and developed effective medium theory correspondingly [141,142]. Analogous to the development of EM effective medium theory, Zhunk analyzed the singularity of Green’s function of the acoustic waves [143,144] and the elastodynamic Green’s tensor [96] and developed an effective medium theory for heterogeneous acoustic and elastic materials. It has been pointed out that any multiple scattering model without considering the singularity of the Green tensor is only applicable to materials with small property fluctuation. In this work, the singularity of the elastodynamic Green tensor is introduced into the multiple scattering theory of elastic waves for the first time. Because of its vital importance to the success of the new model, we carry out comprehensive study on the singularity of the elastodynamic Green’s tensor and propose three different but equivalent methods for the calculation of the singularity tensor. Although the final results are the same, each method provides a unique view of physical meaning of the singularity. In order to avoid interrupting the main content, the detailed calculation is presented in Appendix A. Here we use the final results directly.

From the calculation in Appendix A, we know the singularities of G_{β"i"}^{o}(x",x) and ε^{o}_{β"i"j"}(x",x) are relatively weak and
do not cause problems in the calculation of the integrals, but E^{o}_{α"β"i"j"}(x",x) has the δ-singularity which needs to be carefully
dealt with. By introducing the concept of shape-dependent
principal value, the correct definition of the matrix **D** is given by:

$D:=P.S.D-\tilde{S}\delta ({x}^{\u2033}-x)$, (45)

where P.S. **D** is the shape-dependent principal value of
the Green tensor, S~ is the singularity of the Green tensor,
which is also dependent on the shape of the inclusions. For
instance, the singularities of heterogeneous media with
spherical, spheroidal, ellipsoidal and cylindrical inclusions all
have distinct expressions and possess different symmetries.
In the current work, we only consider random medium with
spherical inclusions, for which the macroscopic properties
are isotropic. Correspondingly, P.S. **D** and $\tilde{S}$ have the
following form:

$P.S.D=\left[\begin{array}{cccccc}P.S.{E}_{1111}^{0}& P.S.{E}_{1221}^{0}& P.S.{E}_{1331}^{0}& 2{E}_{1231}^{0}& 2{E}_{1131}^{0}& 2{E}_{1211}^{0}\\ P.S.{E}_{2112}^{0}& P.S.{E}_{2222}^{0}& P.S.{E}_{2332}^{0}& 2{E}_{2232}^{0}& 2{E}_{2132}^{0}& 2{E}_{2212}^{0}\\ P.S.{E}_{3113}^{0}& P.S.{E}_{3223}^{0}& P.S.{E}_{3333}^{0}& 2{E}_{3233}^{0}& 2{E}_{3133}^{0}& 2{E}_{3213}^{0}\\ 2{E}_{2113}^{0}& 2{E}_{2223}^{0}& 2{E}_{2333}^{0}& P.S.4{E}_{2233}^{0}& 4{E}_{2133}^{0}& 4{E}_{2123}^{0}\\ 2{E}_{1131}^{0}& 2{E}_{1232}^{0}& 2{E}_{1333}^{0}& 4{E}_{1233}^{0}& P.S.4{E}_{1133}^{0}& 4{E}_{1213}^{0}\\ 2{E}_{1112}^{0}& 2{E}_{2221}^{0}& 2{E}_{2331}^{0}& 4{E}_{1232}^{0}& 4{E}_{2131}^{0}& P.S.4{E}_{1122}^{0}\end{array}\right],$ (46)

$\tilde{S}=\left[\begin{array}{cccccc}{S}_{1111}& {S}_{1221}& {S}_{1221}& 0& 0& 0\\ {S}_{1221}& {S}_{1111}& {S}_{1221}& 0& 0& 0\\ {S}_{1221}& {S}_{1221}& {S}_{1111}& 0& 0& 0\\ 0& 0& 0& 4{S}_{2233}& 0& 0\\ 0& 0& 0& 0& 4{S}_{2233}& 0\\ 0& 0& 0& 0& 0& 4{S}_{2233}\end{array}\right],$ (47)

where

${S}_{1111}=\frac{2\lambda +7\mu}{15\mu (\lambda +2\mu )},{S}_{1221}=-\frac{\lambda +\mu}{15\mu (\lambda +2\mu )},{S}_{2233}=\frac{3\lambda +8\mu}{30\mu (\lambda +2\mu )}.$ (48)

From Eq. (48) we can see that S_{1111}= S_{1221} +2S_{2233}, thus
S_{ijkl} is an isotropic tensor. This conclusion is consistent
with the assumption that the heterogeneous medium is
macroscopically isotropic.

In analogous to the isotropic elastic stiffness tensor, we can rewrite S_{ijkl} as

${S}_{\alpha ij\beta}={S}_{1}{\delta}_{\alpha i}{\delta}_{j\beta}+{S}_{2}({\delta}_{\alpha j}{\delta}_{i\beta}+{\delta}_{\alpha \beta}{\delta}_{ij}),$ (49)

where

${S}_{1}=-\frac{\lambda +\mu}{15(\lambda +2\mu )\mu},{S}_{2}=\frac{3\lambda +8\mu}{30(\lambda +2\mu )\mu}$ (50)

Similarly, we can give the correct definition of the matrix Γ(x^{n}−x ) by introducing its shape-dependent principal value P.S.Γ(x^{n}−x), i.e.,

$\Gamma ({x}^{\u2033}-x):=P.S.\Gamma ({x}^{\u2033}-x)-S\delta ({x}^{\u2033}-x),$ (51)

where

$P.S.\Gamma ({x}^{\u2033}-x)=\left[\begin{array}{cc}A& B\\ {B}^{T}& P.S.D\end{array}\right],S=\left[\begin{array}{cc}0& 0\\ 0& \tilde{S}\end{array}\right].$ (52)

Substitution of (51) into (39) yields:

$$\Psi ({x}^{\u2033}-{x}^{\prime})={\Psi}^{0}({x}^{\u2033}-{x}^{\prime})+{\displaystyle {\iiint}_{V(x)}\begin{array}{l}[P.S.\Gamma ({x}^{\u2033}-x)-S\delta ({x}^{\u2033}-x)]\\ \Pi (x)\Psi (x-{x}^{\prime}){d}^{3}x\end{array}}.$$ (53)

Invoking the definition of the Dirac-δ function, we get

$$\Psi ({x}^{\u2033}-{x}^{\prime})={\Psi}^{0}({x}^{\u2033}-{x}^{\prime})+{\displaystyle {\iiint}_{V(x)}P.S.\Gamma ({x}^{\u2033}-x)\Pi (x)\Psi (x-{x}^{\prime}){d}^{3}x}-S\Pi ({x}^{\u2033})\Psi ({x}^{\u2033}-{x}^{\prime}).$$ (54)

Introducing a new quantity, called the renormalized field variable,

$\Phi ({x}^{\u2033}-{x}^{\prime})=\Psi ({x}^{\u2033}-{x}^{\prime})+S\Pi ({x}^{\u2033})\Psi ({x}^{\u2033}-{x}^{\prime}),$ (55)

the integral equation (54) is rewritten as:

$\Phi ({x}^{\u2033}-{x}^{\prime})={\Psi}^{0}({x}^{\u2033}-{x}^{\prime})+{\displaystyle {\iiint}_{V(x)}P.S.\Gamma ({x}^{\u2033}-x)\Xi (x)\Phi (x-{x}^{\prime}){d}^{3}x},$ (56)

where

$\Xi (x)=\Pi (x){[I+S\Pi (x)]}^{-1}.$ (57)

In this work, we consider heterogeneous media whose
component phases are all isotropic materials, for which the
matrix **Ξ(x)** and its elements are given by:

$\Xi (x)=\left[\begin{array}{ccccccccc}\delta \rho {\omega}^{2}& 0& 0& 0& 0& 0& 0& 0& 0\\ 0& \delta \rho {\omega}^{2}& 0& 0& 0& 0& 0& 0& 0\\ 0& 0& \delta \rho {\omega}^{2}& 0& 0& 0& 0& 0& 0\\ 0& 0& 0& {\Xi}_{11}& {\Xi}_{12}& {\Xi}_{12}& 0& 0& 0\\ 0& 0& 0& {\Xi}_{12}& {\Xi}_{11}& {\Xi}_{12}& 0& 0& 0\\ 0& 0& 0& {\Xi}_{12}& {\Xi}_{12}& {\Xi}_{11}& 0& 0& 0\\ 0& 0& 0& 0& 0& 0& {\Xi}_{44}& 0& 0\\ 0& 0& 0& 0& 0& 0& 0& {\Xi}_{44}& 0\\ 0& 0& 0& 0& 0& 0& 0& 0& {\Xi}_{44}\end{array}\right],$ (58)

$\begin{array}{l}{\Xi}_{11}=\frac{\delta {c}_{12}+2\delta {c}_{44}+4({S}_{1}+{S}_{2})\delta {c}_{44}(3\delta {c}_{12}+2\delta {c}_{44})}{(1+4{S}_{2}\delta {c}_{44})[1+(3{S}_{1}+2{S}_{2})(3\delta {c}_{12}+2\delta {c}_{44})]},\\ {\Xi}_{12}=\frac{\delta {c}_{12}(1+4{S}_{2}\delta {c}_{44})-2\delta {c}_{44}[(3{S}_{1}+2{S}_{2})\delta {c}_{12}+2{S}_{1}\delta {c}_{44}]}{(1+4{S}_{2}\delta {c}_{44})[1+(3{S}_{1}+2{S}_{2})(3\delta {c}_{12}+2\delta {c}_{44})]},\\ {\Xi}_{44}=\frac{\delta {c}_{44}}{1+4{S}_{2}\delta {c}_{44}}.\end{array}$ (59)

One can easily verify the relation: Ξ_{11} =Ξ_{12} + 2Ξ44. Eq. (56)
is known as the renormalized integral equation [141,142]. In
contrast to the development of effective medium models, in
the current work we strive to develop a multiple scattering
theory, which should be able to describe the coherent wave
propagation in the whole frequency range. To do so, we first
perform multiple scattering series expansion of Eq. (56), and
then derive the Dyson equation with the help of Feynman’s
diagram and the first-order smoothing approximation.

# Feynman’s diagram, Dyson’s equation and the Firstorder-smoothing-approximation

Eq. (56) is an integral equation for the unknown quantity Φ (x"−x'). We can see that this quantity appears on both sides of the equation and this naturally forms an iteration scheme. By performing iteration successively, i.e., substituting the righthand side of Eq. (56) into the renormalized quantity in the integrand, we get an infinite series Eq. (60). In Eq. (60), the renormalized field is expressed using the unperturbed field variables only. In this work, Eq. (60) is called the multiple scattering series expansion of the perturbed field.

$\begin{array}{l}\Phi ({x}^{\u2033}-{x}^{\prime})={\Psi}^{0}({x}^{\u2033}-{x}^{\prime})+{\displaystyle {\iiint}_{V(x)}P.S.\Gamma ({x}^{\u2033}-x)\Xi (x){\Psi}^{0}(x-{x}^{\prime}){d}^{3}x}+\\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}P.S.\Gamma ({x}^{\u2033}-{x}_{1})\Xi ({x}_{1})P.S.\Gamma ({x}_{1}-{x}_{2})\Xi ({x}_{2}){\Psi}^{0}({x}_{2}-{x}^{\prime}){d}^{3}{x}_{2}{d}^{3}{x}_{1}}}+\\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}{\displaystyle {\iiint}_{V({x}_{3})}P.S.\Gamma ({x}^{\u2033}-{x}_{1})\Xi ({x}_{1})P.S.\Gamma ({x}_{1}-{x}_{2})\Xi ({x}_{2})P.S.\Gamma ({x}_{2}-{x}_{3})\Xi ({x}_{3}){\Psi}^{0}({x}_{3}-{x}^{\prime}){d}^{3}{x}_{3}{d}^{3}{x}_{2}{d}^{3}{x}_{1}}}}+\cdots \\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}\cdots {\displaystyle {\iiint}_{V({x}_{n})}P.S.\Gamma ({x}^{\u2033}-{x}_{1})\Xi ({x}_{1})P.S.\Gamma ({x}_{1}-{x}_{2})\Xi ({x}_{2})\cdots P.S.\Gamma ({x}_{n-1}-{x}_{n})\Xi ({x}_{n}){\Psi}^{0}({x}_{n}-{x}^{\prime}){d}^{3}{x}_{n}{d}^{3}{x}_{n-1}\cdots {d}^{3}{x}_{2}{d}^{3}{x}_{1}+\cdots}}}\end{array}$ (60)

The coherent field, also called the ensemble-averaged field, is defined by averaging the perturbed field over the whole space of realizations of the random medium. Taking ensemble average of Eq. (60) gives:

$$\begin{array}{l}\langle \Phi ({x}^{\u2033}-{x}^{\prime})\rangle ={\Psi}^{0}({x}^{\u2033}-{x}^{\prime})+{\displaystyle {\iiint}_{V(x)}\langle P.S.\Gamma ({x}^{\u2033}-x)\Xi (x){\Psi}^{0}(x-{x}^{\prime})\rangle {d}^{3}x}+\\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}\langle P.S.\Gamma ({x}^{\u2033}-{x}_{1})\Xi ({x}_{1})P.S.\Gamma ({x}_{1}-{x}_{2})\Xi ({x}_{2}){\Psi}^{0}({x}_{2}-{x}^{\prime})\rangle {d}^{3}{x}_{2}{d}^{3}{x}_{1}}}+\\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}{\displaystyle {\iiint}_{V({x}_{3})}\langle P.S.\Gamma ({x}^{\u2033}-{x}_{1})\Xi ({x}_{1})P.S.\Gamma ({x}_{1}-{x}_{2})\Xi ({x}_{2})P.S.\Gamma ({x}_{2}-{x}_{3})\Xi ({x}_{3}){\Psi}^{0}({x}_{3}-{x}^{\prime})\rangle {d}^{3}{x}_{3}{d}^{3}{x}_{2}{d}^{3}{x}_{1}}}}+\cdots \\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}\cdots {\displaystyle {\iiint}_{V({x}_{n})}\langle P.S.\Gamma ({x}^{\u2033}-{x}_{1})\Xi ({x}_{1})P.S.\Gamma ({x}_{1}-{x}_{2})\Xi ({x}_{2})\cdots P.S.\Gamma ({x}_{n-1}-{x}_{n})\Xi ({x}_{n}){\Psi}^{0}({x}_{n}-{x}^{\prime})\rangle {d}^{3}{x}_{n}{d}^{3}{x}_{n-1}\cdots {d}^{3}{x}_{2}{d}^{3}{x}_{1}}}}+\cdots \end{array}$$ (61)

where the angular bracket means the ensemble average of the enclosed quantity. According to the original definition, we need to calculate the random field variables in the whole configuration space, which includes an infinite number of realizations of the random medium. According to the ergodic hypothesis, the ensemble average of a quantity is equal to the volumetric average of the perturbed quantity, thus the angular bracket can also be understood as taking volumetric average of the enclosed quantity. Since P.S.Γ(x"-y) is a deterministic quantity, we can take it out from the bracket and get:

$\begin{array}{l}\langle {\Phi}_{ai}({x}^{\u2033}-{x}^{\prime})\rangle ={\Psi}_{ai}^{0}({x}^{\u2033}-{x}^{\prime})+{\displaystyle {\iiint}_{V(x)}P.S.{\Gamma}_{ab}({x}^{\u2033}-x)\langle {\Xi}_{bc}(x)\rangle {\Psi}_{ci}^{0}(x-{x}^{\prime}){d}^{3}x}+\\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}P.S.{\Gamma}_{ab}({x}^{\u2033}-{x}_{1})P.S.{\Gamma}_{cd}({x}_{1}-{x}_{2})\langle {\Xi}_{bc}({x}_{1}){\Xi}_{de}({x}_{2})\rangle {\Psi}_{ei}^{0}({x}_{2}-{x}^{\prime}){d}^{3}{x}_{2}{d}^{3}{x}_{1}}}+\\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}{\displaystyle {\iiint}_{V({x}_{3})}P.S.{\Gamma}_{ab}({x}^{\u2033}-{x}_{1})P.S.{\Gamma}_{cd}({x}_{1}-{x}_{2})P.S.{\Gamma}_{ef}({x}_{2}-{x}_{3})\langle {\Xi}_{bc}({x}_{1}){\Xi}_{de}({x}_{2}){\Xi}_{fg}({x}_{3})\rangle {\Psi}_{gi}^{0}({x}_{3}-{x}^{\prime}){d}^{3}{x}_{3}{d}^{3}{x}_{2}{d}^{3}{x}_{1}}}}+\cdots \\ {\displaystyle {\iiint}_{V({x}_{1})}{\displaystyle {\iiint}_{V({x}_{2})}\cdots {\displaystyle {\iiint}_{V({x}_{n})}P.S.{\Gamma}_{ab}({x}^{\u2033}-{x}_{1})P.S.{\Gamma}_{cd}({x}_{1}-{x}_{2})\cdots P.S.{\Gamma}_{fg}({x}_{n-1}-{x}_{n})\cdot}}}\\ \langle {\Xi}_{bc}({x}_{1}){\Xi}_{de}({x}_{2})\cdots {\Xi}_{gh}({x}_{n})\rangle {\Psi}_{hi}^{0}({x}_{n}-{x}^{\prime}){d}^{3}{x}_{n}{d}^{3}{x}_{n-1}\cdots {d}^{3}{x}_{2}{d}^{3}{x}_{1}+\cdots \end{array}$ (62)

One need to be informed that in Eq. (62), the subscripts expressed using Latin letters are matrix indices instead of tensor indices. In Eq. (62), an infinite number of multi-point correlation functions are involved:

$\langle {\Xi}_{ab}(x)\rangle ,\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2})\rangle ,\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2}){\Xi}_{ef}({x}_{3})\rangle ,\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2}){\Xi}_{ef}({x}_{3}){\Xi}_{gh}({x}_{4})\rangle ,$ (63)

Multi-point correlation functions, also called higherorder moments, provide key information about the
statistical characteristic of heterogeneous media, and they
have found broad applications in different subjects, such as
characterization of galaxy distribution in cosmology [145],
describing random EM media for satellite remote sensing
[101,109,122], analyzing small-scale heterogeneities in
the Earth’s lithosphere [3,29,146], and characterizing
microstructures in metal polycrystals [46-48]. For a detailed
discussion on how to calculate higher-order moments
readers are referred to [47,107,147,148]. No matter what
type of statistics the inhomogeneous medium complies with,
one can always choose a reference homogeneous medium such that 〈Ξ_{ab}(x)〉 = 0, so we only need to consider the second and higher order moments. Generally speaking, multipoint moments have no simple relations with lower order
moments. However, if the random medium following the
Gaussian statistics, i.e., the two-point correlation function
can be expressed as a Gaussian function, all the moments of
odd order vanish [123,127]:

$\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2}){\Xi}_{ef}({x}_{3})\rangle =0,\mathrm{......}\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2}){\Xi}_{ef}({x}_{3})\cdots {\Xi}_{gh}({x}_{2n-1})\rangle =0,$

and all the moments of even order can be expressed as
products of the second order moments 〈Ξ_{ab}(x1)Ξ_{cd}(x2)〉 , i.e.:

$\begin{array}{l}\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2}){\Xi}_{ef}({x}_{3}){\Xi}_{gh}({x}_{4})\rangle \\ =\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2})\rangle \langle {\Xi}_{ef}({x}_{3}){\Xi}_{gh}({x}_{4})\rangle +\langle {\Xi}_{ab}({x}_{1}){\Xi}_{ef}({x}_{3})\rangle \langle {\Xi}_{cd}({x}_{2}){\Xi}_{gh}({x}_{4})\rangle \\ +\langle {\Xi}_{ab}({x}_{1}){\Xi}_{gh}({x}_{4})\rangle \langle {\Xi}_{cd}({x}_{2}){\Xi}_{ef}({x}_{3})\rangle ,\end{array}$ (65)

$\begin{array}{l}\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2})\cdots {\Xi}_{ef}({x}_{2n-1}){\Xi}_{gh}({x}_{2n})\rangle \\ =\langle {\Xi}_{ab}({x}_{1}){\Xi}_{cd}({x}_{2})\rangle \cdots \langle {\Xi}_{ef}({x}_{2n-1}){\Xi}_{gh}({x}_{2n})\rangle +all\text{\hspace{0.17em}}permutations.\end{array}$ (66)

To proceed further, it is convenient to introduce Feynman’s diagram technique, which was first developed by Richard Feynman to investigate interactions of elementary particles with quantum many body systems. Rytov adopted this method to study multiple scattering of classic scalar waves [123]. In this work, we extend Rytov’s implementation of Feynman’s diagram technique to investigate the multiple scattering of elastic waves. The symbolic representations of all the involved quantities are shown in table 2.

In addition to table 2, we also adopt the convention that two scattering points lie in the same inclusion, i.e., located in the same bracket, are linked by a dashed line.

Considering the relations given by Eqs. (64)-(66), the diagrammatic representation of Eq. (62) is shown in figure 3,

To proceed further, we have to introduce the concepts of weakly- and strongly-connected diagrams. If a diagram can be divided into two subdiagrams, each of which has two or more scattering points, without breaking any dashed lines, then the diagram is called a weakly-connected diagram. Diagrams do not possess this property are called strongly-connected diagrams. For instance, the third term on the righthand side of the equation is a weakly-connected diagram, the second, fourth and fifth terms are stronglyconnected diagrams.

For simplicity, we introduce an additional symbol to represent the sum of all the strongly-connected diagrams, which is shown in figure 4.

It can be verified that all the weakly connected diagrams can be expressed as the product of two or more strongly connected diagrams. Now the ensemble averaged Green’s function can be expressed solely by strongly connected diagrams as shown in figure 5.

It is easy to verify that this infinite series is the solution to the following equation:

Equation shown in figure 6 is the famous Dyson’s equation, which has been studied extensively in numerous fields wherever multiple scattering is considered, such as scattering of electromagnetic waves [101,122,141,142], scattering of photons and other subatomic particles [149-152]. So far, no approximation is introduced and consequently, the Dyson equation is accurate in the sense that multiple scattering events of all orders are included. Nevertheless, this equation is extremely difficult to solve because an infinite number of multipoint correlation functions are involved and their calculation is exceedingly tedious. If only the first term of the strongly connected diagram is retained, we obtain a simplified Dyson’s equation:

This approximation is called the first-order smoothing approximation [123,127], also known as the Bourret approximation [153] and bi-local approximation [122]. Collin [154] compared different selective summation techniques and concluded that the FOSA has the fastest convergence rate. We can write down the explicit equation corresponding to the diagram shown in figure 7:

$\langle \Phi ({x}^{\u2033}-{x}^{\prime})\rangle ={\Psi}^{0}({x}^{\u2033}-{x}^{\prime})+\langle {\displaystyle {\iiint}_{V(y)}P.S.\Gamma ({x}^{\u2033}-y)\Xi (y){d}^{3}y{\displaystyle {\iiint}_{V(x)}P.S.\Gamma (y-x)}\Xi (x)\rangle \langle \Phi (x-{x}^{\prime})\rangle {d}^{3}x}.$ (67)

Eq. (67) is the so-called Dyson’s equation under FOSA, in subsequent discussion, we call it Dyson’s equation for simplicity. A primary study on the accuracy of this approximation was carried out in [156] in the context of the homogenized continuum model. It is found the difference between the third-order and second-order (corresponding to the FOSA here) estimates of the homogenized constitutive parameters are very small for all values of characteristic size, even when the constitutive contrast between the component materials is as large as 30. Similarly, it shows that higher order (fourth-order, fifth-order …) approximation does not add significantly to the estimation given by the second-order approximation. A rigorous analysis of the accuracy and error estimation in the multiple scattering scenario is out of the scope of this work. It is noted that different from the homogenization theories, no constraint on the frequency is introduced here, so the conclusions drawn above are assumed to hold in the whole frequency range. This conjecture will be examined and verified by numerical results for a variety of materials, see Sections III and IV. Another point we need to stress is that Eq. (67) is valid for random media with any types of two-point correlation functions, such as the exponential and the Von-Karman correlation functions. This is because all the third- and higher-order moments are completely neglected.

Considering P.S.Γ_{ab}(x"-y) and P.S.Γ_{cd}(y-x) are deterministic quantities, Eq. (67) can be simplified as:

$\begin{array}{l}\langle {\Phi}_{af}({x}^{\u2033}-{x}^{\prime})\rangle ={\Psi}_{af}^{0}({x}^{\u2033}-{x}^{\prime})\\ +{\displaystyle {\iiint}_{V(y)}P.S.{\Gamma}_{ab}({x}^{\u2033}-y){d}^{3}y{\displaystyle {\iiint}_{V(x)}P.S.{\Gamma}_{cd}(y-x)}\langle {\Xi}_{bc}(y){\Xi}_{de}(x)\rangle \langle {\Phi}_{ef}(x-{x}^{\prime})\rangle {d}^{3}x}.\end{array}$ (68)

For a statically homogeneous medium, the two-point correlation function is given by [47-48, 155]:

$\langle {\Xi}_{ab}(y){\Xi}_{cd}(x)\rangle =\langle {\Xi}_{ab}{\Xi}_{cd}\rangle P(y-x),$ (69)

where P(y-x) is called the spatial autocorrelation function (SAF). Heterogeneous materials with different microstructural distributions are described by different SAFs. For example, random media with blurred interfaces are most conveniently described by Gaussian-type SAF, inclusions or scatterers with sharp boundaries follow exponential-type SAF, and Von Karman-type are introduced to describe self-similar random media like turbulent media [3]. In this work, we only consider random media with exponential correlation functions since it describes the correlation features of most random media discussed in this work to an accurate or acceptable level. If the inclusions in the medium are of spherical geometry, then the random media is statistically isotropic, and the exponential correlation function is a function of the distance between the two points [3,47,48]:

$P(y-x)={e}^{-\frac{\left|y-x\right|}{a}},$ (70)

where a is the correlation length.

The Fourier transform of SAF represents the power spectrum of the medium fluctuation, which is given by:

$\tilde{P}(k)=\frac{8\pi {a}^{3}}{{(1+{k}^{2}{a}^{2})}^{2}}.$ (71)

As pointed out before, we can always choose the properties of the reference medium such that the first-order moment vanishes. This choice also ensures the fastest convergence rate of the multiple-scattering series, thus we take:

$\langle {\Xi}_{ab}(x)\rangle =0.$ (72)

For a two-phase heterogeneous medium, Eq. (72) gives three independent relations [12]:

$\langle \delta \rho \rangle =0$ : $\rho ={f}_{1}{\rho}_{1}+{f}_{2}{\rho}_{2}$ (73)

$\langle {\Xi}_{12}\rangle =0$: $\begin{array}{l}\frac{\delta {c}_{12}^{(1)}(1+4{S}_{2}\delta {c}_{44}^{(1)})-2\delta {c}_{44}^{(1)}[(3{S}_{1}+2{S}_{2})\delta {c}_{12}^{(1)}+2{S}_{1}\delta {c}_{44}^{(1)}]}{(1+4{S}_{2}\delta {c}_{44}^{(1)})[1+(3{S}_{1}+2{S}_{2})(3\delta {c}_{12}^{(1)}+2\delta {c}_{44}^{(1)})]}{f}_{1}\\ +\frac{\delta {c}_{12}^{(2)}(1+4{S}_{2}\delta {c}_{44}^{(2)})-2\delta {c}_{44}^{(2)}[(3{S}_{1}+2{S}_{2})\delta {c}_{12}^{(2)}+2{S}_{1}\delta {c}_{44}^{(2)}]}{(1+4{S}_{2}\delta {c}_{44}^{(2)})[1+(3{S}_{1}+2{S}_{2})(3\delta {c}_{12}^{(2)}+2\delta {c}_{44}^{(2)})]}{f}_{2}=0,\end{array}$ (74)

$\langle {\Xi}_{44}\rangle =0:\frac{\delta {c}_{44}^{(1)}}{1+4{S}_{2}\delta {c}_{44}^{(1)}}{f}_{1}+\frac{\delta {c}_{44}^{(2)}}{1+4{S}_{2}\delta {c}_{44}^{(2)}}{f}_{2}=0,$ (75)

where

$\delta {c}_{12}^{(1)}={\lambda}_{1}-\lambda ,\delta {c}_{44}^{(1)}={\mu}_{1}-\mu ,\delta {c}_{12}^{(2)}={\lambda}_{2}-\lambda ,\delta {c}_{44}^{(2)}={\mu}_{2}-\mu .$ (76)

As can be seen, the mass density of the reference medium is still defined by the volumetric average of the component materials, but the elastic stiffness is obtained by solving a system of complicated nonlinear algebraic equations (74) and (75), which is largely different from the Voigt-averaged values. In Sections III and IV we will see that the Voigt-average estimation always overestimates the quasi-static limit of the velocities of the coherent waves. This conclusion is in agreement with that given by other works [49,50].

**Table 2:** Symbolic representation of field variables used in Feynman’s diagram.

**Figure 3:** Feynman’s diagram representation of the multiple scattering series.

**Figure 4:** Summation of strongly connected diagrams.

**Figure 5:** Representation of the ensemble averaged Green’s function using strongly connected diagrams.

**Figure 6:** Diagrammatic representation of Dyson’s equation.

**Figure 7:** Diagram representation of Dyson’s equation under FOSA.

# Solution of Dyson’s equation and the dispersion equations

Equation (68) is a system of integral equations of convolution type, which is most conveniently solved by the Fourier transformation technique. In this work, we use the following spatial Fourier transform pair:

$\tilde{\Psi}(k)={\displaystyle {\iiint}_{V(x)}\Psi (x){e}^{-ik\cdot x}{d}^{3}x},\Psi (x)=\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(k)}\tilde{\Psi}(k){e}^{ik\cdot x}{d}^{3}k}.$ (77)

Applying Fourier transform to the Dyson equation (68), and considering (69), we get:

$\langle {\tilde{\Phi}}_{af}(k)\rangle ={\tilde{\Psi}}_{af}^{0}(k)+P.S.{\tilde{\Gamma}}_{ab}(k)\langle {\Xi}_{bc}{\Xi}_{de}\rangle \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]\langle {\tilde{\Phi}}_{ef}(k)\rangle .$ (78)

Multiplying both sides of Eq. (78) by $${\left[P.S.{\tilde{\Gamma}}_{ga}(k)\right]}^{-1}$$ , we get:

$\begin{array}{l}{\left[P.S.{\tilde{\Gamma}}_{ga}(k)\right]}^{-1}\langle {\tilde{\Phi}}_{af}(k)\rangle ={\left[P.S.{\tilde{\Gamma}}_{ga}(k)\right]}^{-1}{\tilde{\Psi}}_{af}^{0}(k)+\langle {\Xi}_{gc}{\Xi}_{de}\rangle \\ \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]\langle {\tilde{\Phi}}_{ef}(k)\rangle .\end{array}$ (79)

Rearranging this equation, we have:

$$\left\{{\left[P.S.{\tilde{\Gamma}}_{ge}(k)\right]}^{-1}-\langle {\Xi}_{gc}{\Xi}_{de}\rangle \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]\right\}\langle {\tilde{\Phi}}_{ef}(k)\rangle ={\left[P.S.{\tilde{\Gamma}}_{ga}(k)\right]}^{-1}{\tilde{\Psi}}_{af}^{0}(k).$$ (80)

The ensemble averaged response in the frequency-wavenumber domain can be solved as:

$\langle {\tilde{\Phi}}_{hf}(k)\rangle ={\left\{{\left[P.S.{\tilde{\Gamma}}_{hg}(k)\right]}^{-1}-\langle {\Xi}_{hc}{\Xi}_{dg}\rangle \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]\right\}}^{-1}{\left[P.S.{\tilde{\Gamma}}_{ga}(k)\right]}^{-1}{\tilde{\Psi}}_{af}^{0}(k).$ (81)

Simultaneously we obtain the dispersion equation:

$\mathrm{det}\left\{{\left[P.S.{\tilde{\Gamma}}_{ge}(k)\right]}^{-1}-\langle {\Xi}_{gc}{\Xi}_{de}\rangle \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]\right\}=0.$ (82)

The solution in the spatial-frequency domain is given by:

$\langle {\Phi}_{hf}(x,{x}^{\prime},\omega )\rangle =\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(k)}{\left\{\begin{array}{l}{\left[P.S.{\tilde{\Gamma}}_{hg}(k)\right]}^{-1}-\langle {\Xi}_{hc}{\Xi}_{dg}\rangle \\ \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]\end{array}\right\}}^{-1}{\left[P.S.{\tilde{\Gamma}}_{ga}(k)\right]}^{-1}{\tilde{\Psi}}_{af}^{0}(k){e}^{ik\cdot (x-{x}^{\prime})}{d}^{3}k}.$ (83)

If the source is a time varying signal **F**(t), and it is correlated to its spectrum through the following temporal Fourier
transform pair:

$\tilde{F}(\omega )={\displaystyle {\int}_{-\infty}^{+\infty}F(t){e}^{i\omega t}dt}$ , $F(t)=\frac{1}{2\pi}{\displaystyle {\int}_{-\infty}^{+\infty}\tilde{F}(\omega ){e}^{-i\omega t}d\omega}.$ (84)

Thus, the complete wavefield in spacetime induced by a general time-varying point source is given by:

$\begin{array}{l}\langle {\Phi}_{hf}(x,{x}^{\prime},t)\rangle =\\ \frac{1}{2\pi}{\displaystyle {\int}_{-\infty}^{+\infty}\tilde{F}(\omega )}\left(\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(k)}{\left\{\begin{array}{l}{\left[P.S.{\tilde{\Gamma}}_{hg}(k)\right]}^{-1}-\langle {\Xi}_{hc}{\Xi}_{dg}\rangle \\ \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]\end{array}\right\}}^{-1}{\left[P.S.{\tilde{\Gamma}}_{ga}(k)\right]}^{-1}{\tilde{\Psi}}_{af}^{0}(k){e}^{ik\cdot (x-{x}^{\prime})}{d}^{3}k}\right){e}^{-i\omega t}d\omega .\end{array}$ (85)

Eq. (85) gives an explicit expression for the wavefield in the spacetime domain and it has significant implications for
seismological applications, for instance, it can be used to synthesize three-component seismogram envelops for realistic
earthquake sources [3,176]. However, exploring the solution goes beyond the scope of the current research. In this work,
we only focus on the dispersion and attenuation behavior of a plane wave component. In a statistically isotropic medium,
the dispersion behavior of a plane wave is independent of its propagation direction. Without loss of generality, we consider a
plane wave propagating along the x_{3} axis, and the wavevector **k** = [0,0,k]. The coefficient matrix and the dispersion equations
of longitudinal and transverse waves can be expressed explicitly as:

${\left[P.S.{\tilde{\Gamma}}_{ge}(k)\right]}^{-1}-\langle {\Xi}_{gc}{\Xi}_{de}\rangle \left[\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}P.S.{\tilde{\Gamma}}_{cd}(s)\tilde{P}(k-s){d}^{3}s}\right]=\left[\begin{array}{ccccccccc}{M}_{11}& 0& 0& 0& 0& 0& 0& {M}_{18}& 0\\ 0& {M}_{22}& 0& 0& 0& 0& {M}_{27}& 0& 0\\ 0& 0& {M}_{33}& {M}_{34}& {M}_{35}& {M}_{36}& 0& 0& 0\\ 0& 0& {M}_{34}& {M}_{44}& {M}_{45}& {M}_{46}& 0& 0& 0\\ 0& 0& {M}_{35}& {M}_{45}& {M}_{55}& {M}_{56}& 0& 0& 0\\ 0& 0& {M}_{36}& {M}_{46}& {M}_{56}& {M}_{66}& 0& 0& 0\\ 0& {M}_{27}& 0& 0& 0& 0& {M}_{77}& 0& 0\\ {M}_{18}& 0& 0& 0& 0& 0& 0& {M}_{88}& 0\\ 0& 0& 0& 0& 0& 0& 0& 0& {M}_{99}\end{array}\right].$ (86)

The non-vanishing elements of the matrix **M** are given by:

${M}_{11}=\mu ({k}^{2}-{k}_{T}^{2})-{K}_{44}{k}^{2}-{\omega}^{4}{({\rho}_{1}-{\rho}_{2})}^{2}{f}_{1}{f}_{2}{\Sigma}_{11},$ ${M}_{33}=(\lambda +2\mu )({k}^{2}-{k}_{L}^{2})-{K}_{11}{k}^{2}-{\omega}^{4}{({\rho}_{1}-{\rho}_{2})}^{2}{f}_{1}{f}_{2}{\Sigma}_{33},$ (87a)

$\begin{array}{l}{M}_{34}=-{K}_{12}ik-{\omega}^{2}{f}_{1}{f}_{2}({\rho}_{1}-{\rho}_{2})[({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})\\ +({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)})]{\Sigma}_{34}-{\omega}^{2}{f}_{1}{f}_{2}({\rho}_{1}-{\rho}_{2})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)}){\Sigma}_{36},\end{array}$ (87b)

$${M}_{36}=-{K}_{11}ik-2{\omega}^{2}{f}_{1}{f}_{2}({\rho}_{1}-{\rho}_{2})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)})]{\Sigma}_{34}-{\omega}^{2}{f}_{1}{f}_{2}({\rho}_{1}-{\rho}_{2})({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)}){\Sigma}_{36},$$ (87c)

${M}_{18}=-{K}_{44}ik-{\omega}^{2}{f}_{1}{f}_{2}({\rho}_{1}-{\rho}_{2})({\Xi}_{44}^{(1)}-{\Xi}_{44}^{(2)})]{\Sigma}_{18},$ (87d)

$\begin{array}{l}{M}_{44}={K}_{11}-{f}_{1}{f}_{2}[{(}^{{\Xi}_{11}^{(1)}}+{(}^{{\Xi}_{12}^{(1)}}]{\Sigma}_{44}-2{f}_{1}{f}_{2}({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)}){\Sigma}_{45}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}-2{f}_{1}{f}_{2}[({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)})+{(}^{{\Xi}_{12}^{(1)}}]{\Sigma}_{46}-{f}_{1}{f}_{2}{(}^{{\Xi}_{12}^{(1)}}{\Sigma}_{66},\end{array}$ (87e)

$\begin{array}{l}{M}_{45}={K}_{12}-2{f}_{1}{f}_{2}({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)}){\Sigma}_{44}-{f}_{1}{f}_{2}[{(}^{{\Xi}_{11}^{(1)}}+{(}^{{\Xi}_{12}^{(1)}}]{\Sigma}_{45}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}-2{f}_{1}{f}_{2}[({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)})+{(}^{{\Xi}_{12}^{(1)}}]{\Sigma}_{46}-{f}_{1}{f}_{2}{(}^{{\Xi}_{12}^{(1)}}{\Sigma}_{66},\end{array}$ (87f)

$\begin{array}{l}{M}_{46}={K}_{12}-{f}_{1}{f}_{2}[({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)})+{(}^{{\Xi}_{12}^{(1)}}]{\Sigma}_{44}-{f}_{1}{f}_{2}[({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)})+{(}^{{\Xi}_{12}^{(1)}}]{\Sigma}_{45}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}-{f}_{1}{f}_{2}[{(}^{{\Xi}_{11}^{(1)}}+({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)})+2{(}^{{\Xi}_{12}^{(1)}}]{\Sigma}_{46}-{f}_{1}{f}_{2}({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)}){\Sigma}_{66},\end{array}$ (87g)

$\begin{array}{l}{M}_{66}={K}_{11}-2{f}_{1}{f}_{2}{(}^{{\Xi}_{12}^{(1)}}{\Sigma}_{44}-2{f}_{1}{f}_{2}{(}^{{\Xi}_{12}^{(1)}}{\Sigma}_{45}\\ -4{f}_{1}{f}_{2}({\Xi}_{11}^{(1)}-{\Xi}_{11}^{(2)})({\Xi}_{12}^{(1)}-{\Xi}_{12}^{(2)}){\Sigma}_{46}-{f}_{1}{f}_{2}{(}^{{\Xi}_{11}^{(1)}}{\Sigma}_{66},\end{array}$ (87h)

${M}_{77}={K}_{44}-{f}_{1}{f}_{2}{({\Xi}_{44}^{(1)}-{\Xi}_{44}^{(2)})}^{2}{\Sigma}_{77},$ ${M}_{99}={K}_{44}-{f}_{1}{f}_{2}{({\Xi}_{44}^{(1)}-{\Xi}_{44}^{(2)})}^{2}{\Sigma}_{99},$ (87i)

${M}_{22}={M}_{11},$ ${M}_{88}={M}_{77},$ ${M}_{35}={M}_{34},$ ${M}_{27}={M}_{18},$ ${M}_{56}={M}_{46},$ ${M}_{55}={M}_{44},$ (87j)

where

${K}_{11}=\frac{3(\lambda +6\mu )(\lambda +2\mu )}{3\lambda +8\mu},{K}_{12}=\frac{3(\lambda +\mu )(\lambda +2\mu )}{3\lambda +8\mu},{K}_{44}=\frac{15(\lambda +2\mu )\mu}{2(3\lambda +8\mu )},{K}_{11}={K}_{12}+2{K}_{44}.$ (88)

${\Sigma}_{11}(k)=\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}{\tilde{G}}_{11}(s)}\tilde{P}(k-s){d}^{3}s,$ ${\Sigma}_{18}(k)=\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}[i{s}_{3}{\tilde{G}}_{11}(s)+i{s}_{1}{\tilde{G}}_{13}(s)]}\tilde{P}(k-s){d}^{3}s,$ (89a)

${\Sigma}_{33}(k)=\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}{\tilde{G}}_{33}(s)}\tilde{P}(k-s){d}^{3}s,$ ${\Sigma}_{34}(k)=\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}i{s}_{1}{\tilde{G}}_{13}(s)}\tilde{P}(k-s){d}^{3}s,$ (89b)

${\Sigma}_{36}(k)=\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}i{s}_{3}{\tilde{G}}_{33}(s)}\tilde{P}(k-s){d}^{3}s,$ ${\Sigma}_{44}(k)={S}_{1111}-\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}{s}_{1}^{2}{\tilde{G}}_{11}(s)}\tilde{P}(k-s){d}^{3}s,$ (89c)

${\Sigma}_{45}(k)={S}_{1221}-\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}{s}_{1}{s}_{2}{\tilde{G}}_{12}(s)}\tilde{P}(k-s){d}^{3}s,$ ${\Sigma}_{46}(k)={S}_{1221}-\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}{s}_{1}{s}_{3}{\tilde{G}}_{13}(s)}\tilde{P}(k-s){d}^{3}s,$ (89d)

${\Sigma}_{66}(k)={S}_{1111}-\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}{s}_{3}^{2}{\tilde{G}}_{33}(s)}\tilde{P}(k-s){d}^{3}s,$ ${\Sigma}_{77}(k)=4{S}_{2233}-\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}[{s}_{2}^{2}{\tilde{G}}_{33}(s)+{s}_{3}^{2}{\tilde{G}}_{22}(s)+2{s}_{2}{s}_{3}{\tilde{G}}_{23}(s)]}\tilde{P}(k-s){d}^{3}s,$ (89e)

${\Sigma}_{99}(k)=4{S}_{2233}-\frac{1}{8{\pi}^{3}}{\displaystyle {\iiint}_{V(s)}[{s}_{1}^{2}{\tilde{G}}_{22}(s)+{s}_{2}^{2}{\tilde{G}}_{11}(s)+2{s}_{1}{s}_{2}{\tilde{G}}_{12}(s)]}\tilde{P}(k-s){d}^{3}s,$ (89f)

${\Sigma}_{22}={\Sigma}_{11},$ ${\Sigma}_{27}={\Sigma}_{18},$ ${\Sigma}_{35}={\Sigma}_{34},$ ${\Sigma}_{55}={\Sigma}_{44},$ ${\Sigma}_{56}={\Sigma}_{46},$ ${\Sigma}_{88}={\Sigma}_{77}.$ (89g)

The dispersion equation for longitudinal coherent waves is:

${M}_{33}({M}_{44}{M}_{66}+{M}_{45}{M}_{66}-2{M}_{46}^{2})-{M}_{44}{M}_{36}^{2}-2{M}_{34}^{2}{M}_{66}-{M}_{45}{M}_{36}^{2}+4{M}_{34}{M}_{36}{M}_{46}=0.$ (90)

The dispersion equation for transverse coherent waves is:

${M}_{11}{M}_{88}-{M}_{18}^{2}=0.$ (91)

The solution to the dispersion equations is a complex propagation constant, k= + Re(k)+iIm(k), where Re(k)= ω/V, Im(k)=α , ω is the circular frequency, V is the coherent wave velocity, and α is the attenuation coefficient of the coherent wave. The propagation characteristics of the coherent wave is fully described by the complex wavenumber.

The integrals appeared in Σ_{ij}(k) contain singular points: s=k_{T} and s=k_{L}. The correct definition of these integrals is
discussed in Sheng [112] and Calvet and Margerin [12], where they gave the explicit expression by splitting the homogeneous
Green’s functions into the real part and the imaginary part. The real part of Green’s functions is defined as the Cauchy
principal value at the singular points while the imaginary part is given by the Dirac-delta function. The sign of the imaginary
part is determined by the causality of elastic waves, see Sheng [112]. In the numerical implementation, these integrals are
broken into two or three parts, and the general forms are

$\begin{array}{l}{\displaystyle {\int}_{0}^{+\infty}\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})}}:=P.V.{\displaystyle {\int}_{0}^{B}\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})}}\\ +{\displaystyle {\int}_{B}^{+\infty}\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})}}+{\displaystyle {\int}_{0}^{B}i\delta ({s}^{2}-{k}_{T}^{2})F(s)ds},\end{array}$ (92)

$\begin{array}{l}{\displaystyle {\int}_{0}^{+\infty}\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})({s}^{2}-{k}_{L}^{2})}}:=P.V.{\displaystyle {\int}_{0}^{A}\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})({s}^{2}-{k}_{L}^{2})}}+P.V.{\displaystyle {\int}_{A}^{B}\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})({s}^{2}-{k}_{L}^{2})}}\\ +{\displaystyle {\int}_{B}^{+\infty}\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})({s}^{2}-{k}_{L}^{2})}}+{\displaystyle {\int}_{0}^{A}i\delta ({s}^{2}-{k}_{T}^{2})\frac{F(s)ds}{({s}^{2}-{k}_{L}^{2})}}+{\displaystyle {\int}_{A}^{+\infty}i\delta ({s}^{2}-{k}_{L}^{2})\frac{F(s)ds}{({s}^{2}-{k}_{T}^{2})}},\end{array}$ (93)

where k_{L} < A < k_{T } < B and F(s) is a regular function, i.e., has no singularity along the positive real axis.

All the integrands in the above integrals decays proportionally to 1/S² as s → +∞. Consequently, all the infinite integrals are convergent. The complex wavenumber is obtained by searching for the roots of the dispersion equations in the complex k-plane. The numerical algorithm is implemented on the platform Compaq Visual Fortran 6.6 for which the powerful IMSL numerical library is integrated. All the numerical calculations are carried out in terms of the dimensionless quantities, i.e., the fractional velocity variation, the adimensional attenuation and the dimensionless frequencies, as given by:

$\delta {\overline{V}}_{L}=\frac{V-{V}_{0L}}{{V}_{0L}},$ ${\overline{\alpha}}_{L}={\alpha}_{L}d,$ ${K}_{0L}={k}_{0L}d,$ (94)

$\delta {\overline{V}}_{T}=\frac{V-{V}_{0T}}{{V}_{0T}},$ ${\overline{\alpha}}_{T}={\alpha}_{T}d,$ ${K}_{0T}={k}_{0T}d,$ (95)

where d is the average diameter (or characteristic dimension) of the heterogeneities, d=2a, V_{0L} and V_{0T} are the velocities
of the longitudinal and transverse waves of the reference material, k_{0L} and k_{0T} are the nominal wavenumbers calculated
using the quasi-static limits of the longitudinal and transverse wave velocities, i.e., k_{0L}=ω/ V_{0L}, k_{0T}=ω/ V_{0T}. Since d,V_{0L} and
V_{0T} are constants, K_{0L} and K_{0T} can be viewed as dimensionless frequencies. α_{L} and α_{T} are the attenuation coefficients of
longitudinal and transverse waves.

# Comparison with an Improved Multiple Scattering Model for Heterogeneous Elastic Media with Weak Property Fluctuation

Before applying the new model to a series of practical problems, it is meaningful to make a comprehensive comparison between the new model and an improved multiple scattering model for heterogeneous elastic media with weak property fluctuation, which was recently developed by the author based on Weaver’s model [48]. For the convenience of subsequent discussion, we introduce two acronyms for the two models, where SFMS stands for the Strong-Fluctuation-MultipleScattering model developed in this work and WFMS stands for the Weak-Fluctuation-Multiple-Scattering model. We omit the rigorous development of the WFMS model and only list the major results here. Interested readers are referred to [129] for more details.

The dispersion equations for the longitudinal (L) and transverse (T) coherent waves are:

$\overline{\rho}({k}^{2}{\overline{V}}_{L}^{2}-{\omega}^{2})+{\tilde{M}}_{L}(k)=0$ $\overline{\rho}({k}^{2}{\overline{V}}_{T}^{2}-{\omega}^{2})+{\tilde{M}}_{T}(k)=0$ (96)

where V̅_{T} and V̅_{T} are the Voigt-average longitudinal and transverse velocities, M̅_{L}(k) and M̅_{T}(k) are the longitudinal and
transverse mass operators, which are given by

${\tilde{M}}_{L}(k)={\tilde{M}}_{LL}(k)+{\tilde{M}}_{LT}(k)$ ${\tilde{M}}_{T}(k)={\tilde{M}}_{TL}(k)+{\tilde{M}}_{TT}(k),$ (97)

$\begin{array}{l}\mathrm{Re}{\tilde{M}}_{LL}(\omega ,k)=\frac{2{f}_{1}{f}_{2}}{\pi}P.V.{\displaystyle {\int}_{0}^{+\infty}\frac{{s}^{2}{a}^{3}ds}{\overline{\rho}({s}^{2}{\overline{V}}_{L}^{2}-{\omega}^{2})}}{\displaystyle {\int}_{-1}^{+1}\{{\omega}^{4}{({\rho}_{1}-{\rho}_{2})}^{2}{x}^{2}+}{s}^{2}{k}^{2}{(}^{{\lambda}_{1}}+4{s}^{2}{k}^{2}{(}^{{\mu}_{1}}{x}^{4}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-2{\omega}^{2}ks({\rho}_{1}-{\rho}_{2})({\lambda}_{1}-{\lambda}_{2})x-4{\omega}^{2}ks({\rho}_{1}-{\rho}_{2})({\mu}_{1}-{\mu}_{2}){x}^{3}+4{k}^{2}{s}^{2}({\lambda}_{1}-{\lambda}_{2})({\mu}_{1}-{\mu}_{2}){x}^{2}\}\tilde{\eta}(x)dx,\end{array}$ (98)

$\begin{array}{l}\mathrm{Re}{\tilde{M}}_{LT}(\omega ,k)=\frac{2{f}_{1}{f}_{2}}{\pi}P.V.{\displaystyle {\int}_{0}^{+\infty}\frac{{s}^{2}{a}^{3}ds}{\overline{\rho}({s}^{2}{\overline{V}}_{T}^{2}-{\omega}^{2})}}{\displaystyle {\int}_{-1}^{+1}\{{\omega}^{4}{({\rho}_{1}-{\rho}_{2})}^{2}(1-{x}^{2})}+4{s}^{2}{k}^{2}{(}^{{\mu}_{1}}(1-{x}^{2}){x}^{2}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-4{\omega}^{2}ks({\rho}_{1}-{\rho}_{2})({\mu}_{1}-{\mu}_{2})x(1-{x}^{2})\}\tilde{\eta}(x)dx,\end{array}$ (98)

$\begin{array}{l}\mathrm{Re}{\tilde{M}}_{LT}(\omega ,k)=\frac{2{f}_{1}{f}_{2}}{\pi}P.V.{\displaystyle {\int}_{0}^{+\infty}\frac{{s}^{2}{a}^{3}ds}{\overline{\rho}({s}^{2}{\overline{V}}_{T}^{2}-{\omega}^{2})}}{\displaystyle {\int}_{-1}^{+1}\{{\omega}^{4}{({\rho}_{1}-{\rho}_{2})}^{2}(1-{x}^{2})}+4{s}^{2}{k}^{2}{(}^{{\mu}_{1}}(1-{x}^{2}){x}^{2}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-4{\omega}^{2}ks({\rho}_{1}-{\rho}_{2})({\mu}_{1}-{\mu}_{2})x(1-{x}^{2})\}\tilde{\eta}(x)dx,\end{array}$ (99)

$\begin{array}{l}\mathrm{Im}{\tilde{M}}_{LL}(\omega ,k)=\frac{{f}_{1}{f}_{2}{\omega}^{3}{a}^{3}}{\overline{\rho}{\overline{V}}_{L}^{3}}{\displaystyle {\int}_{-1}^{+1}\{{\omega}^{2}{({\rho}_{1}-{\rho}_{2})}^{2}{x}^{2}+\frac{{({\lambda}_{1}-{\lambda}_{2})}^{2}}{{\overline{V}}_{L}^{2}}{k}^{2}+4\frac{{({\mu}_{1}-{\mu}_{2})}^{2}}{{\overline{V}}_{L}^{2}}{k}^{2}{x}^{4}-4\frac{\omega}{{\overline{V}}_{L}}({\rho}_{1}-{\rho}_{2})({\mu}_{1}-{\mu}_{2})k{x}^{3}}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-2\frac{\omega}{{\overline{V}}_{L}}({\rho}_{1}-{\rho}_{2})({\lambda}_{1}-{\lambda}_{2})kx+4\frac{({\lambda}_{1}-{\lambda}_{2})({\mu}_{1}-{\mu}_{2})}{{\overline{V}}_{L}^{2}}{k}^{2}{x}^{2}\}{\tilde{\eta}}^{LL}(x)dx,\end{array}$ (100)

$\begin{array}{l}\mathrm{Im}{\tilde{M}}_{LT}(\omega ,k)=\frac{{f}_{1}{f}_{2}{\omega}^{3}{a}^{3}}{\overline{\rho}{\overline{V}}_{T}^{3}}{\displaystyle {\int}_{-1}^{+1}\{{\omega}^{2}{\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}}^{\text{2}}(1-{x}^{2})+4\frac{{({\mu}_{1}-{\mu}_{2})}^{2}}{{\overline{V}}_{T}^{2}}{k}^{2}{x}^{2}(1-{x}^{2})}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-4\frac{\omega}{{\overline{V}}_{T}}\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}({\mu}_{1}-{\mu}_{2})(1-{x}^{2})kx\}{\tilde{\eta}}^{LT}(x)dx,\end{array}$ (101)

$\begin{array}{l}\mathrm{Re}{\tilde{M}}_{TL}(\omega ,k)=\frac{{f}_{1}{f}_{2}}{\pi}P.V.{\displaystyle {\int}_{0}^{+\infty}\frac{{s}^{2}{a}^{3}ds}{\overline{\rho}({s}^{2}{\overline{V}}_{L}^{2}-{\omega}^{2})}}{\displaystyle {\int}_{-1}^{+1}\{{\omega}^{4}{\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}}^{\text{2}}(1-{x}^{2})+4{s}^{2}{k}^{2}{({\mu}_{1}-{\mu}_{2})}^{2}(1-{x}^{2}){x}^{2}}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-4{\omega}^{2}ks\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}({\mu}_{1}-{\mu}_{2})x(1-{x}^{2})\}\tilde{\eta}(x)dx,\end{array}$ (102)

$\begin{array}{l}\mathrm{Re}{\tilde{M}}_{TT}(\omega ,k)=\frac{{f}_{1}{f}_{2}}{\pi}P.V.{\displaystyle {\int}_{0}^{+\infty}\frac{{s}^{2}{a}^{3}ds}{\overline{\rho}({s}^{2}{\overline{V}}_{T}^{2}-{\omega}^{2})}}{\displaystyle {\int}_{-1}^{+1}\{{\omega}^{4}{\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}}^{\text{2}}(1+{x}^{2})}+{s}^{2}{k}^{2}{(}^{{\mu}_{1}}(1-3{x}^{2}+4{x}^{4})\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}-4{\omega}^{2}ks\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}({\mu}_{1}-{\mu}_{2}){x}^{3}\}\tilde{\eta}(x)dx,\end{array}$ (103)

$\mathrm{Im}{\tilde{M}}_{TL}(\omega ,k)=\frac{{f}_{1}{f}_{2}{\omega}^{3}{a}^{3}}{2\overline{\rho}{\overline{V}}_{L}^{3}}{\displaystyle {\int}_{-1}^{+1}\left\{{\omega}^{2}{\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}}^{\text{2}}(1-{x}^{2})+4\frac{{({\mu}_{1}-{\mu}_{2})}^{2}}{{\overline{V}}_{L}^{2}}{k}^{2}{x}^{2}(1-{x}^{2})-4\frac{\omega}{{\overline{V}}_{L}}k\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}({\mu}_{1}-{\mu}_{2})x(1-{x}^{2})\right\}}{\tilde{\eta}}^{TL}(x)dx,$ (104)

$\mathrm{Im}{\tilde{M}}_{TT}(\omega ,k)=\frac{{f}_{1}{f}_{2}{\omega}^{3}{a}^{3}}{2\overline{\rho}{\overline{V}}_{T}^{3}}{\displaystyle {\int}_{-1}^{+1}\left\{{\omega}^{2}{\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}}^{\text{2}}(1+{x}^{2})+\frac{{({\mu}_{1}-{\mu}_{2})}^{2}}{{\overline{V}}_{T}^{2}}{k}^{2}(1-3{x}^{2}+4{x}^{4})-4\frac{\omega}{{\overline{V}}_{T}}k\text{(}{\rho}_{\text{1}}-{\rho}_{\text{2}}\text{)}({\mu}_{1}-{\mu}_{2}){x}^{3}\right\}}{\tilde{\eta}}^{TT}(x)dx,$ (105)

where

$\begin{array}{l}\tilde{\eta}(x)=\frac{1}{{(1+{a}^{2}{k}^{2}+{a}^{2}{s}^{2}-2{a}^{2}ksx)}^{2}},\text{\hspace{1em}}{\tilde{\eta}}^{LL}(x)={\tilde{\eta}}^{TL}(x)=\frac{1}{{(1+{a}^{2}{s}^{2}+{a}^{2}{k}_{L}^{2}-2{a}^{2}s{k}_{L}x)}^{2}},\\ {\tilde{\eta}}^{LT}(x)={\tilde{\eta}}^{TT}(x)=\frac{1}{{(1+{a}^{2}{s}^{2}+{a}^{2}{k}_{T}^{2}-2{a}^{2}s{k}_{T}x)}^{2}},\text{\hspace{1em}}{k}_{L}=\frac{\omega}{{\overline{V}}_{L}},\text{\hspace{1em}}{k}_{T}=\frac{\omega}{{\overline{V}}_{T}}.\end{array}$ (106)

The Voigt average velocities V̅_{L} and V̅_{T} are defined in terms of the Voigt average material properties as:

${\overline{V}}_{L}=\sqrt{\frac{\overline{\lambda}+2\overline{\mu}}{\overline{\rho}}}$, ${\overline{V}}_{T}=\sqrt{\frac{\overline{\mu}}{\overline{\rho}}}$, $\overline{\lambda}={f}_{1}{\lambda}_{1}+{f}_{2}{\lambda}_{2}$, $\overline{\mu}={f}_{1}{\mu}_{1}+{f}_{2}{\mu}_{2}$, $\overline{\rho}={f}_{1}{\rho}_{1}+{f}_{2}{\rho}_{2}$, (107)

where λ_{1} , λ_{2} , µ_{1} , µ_{2} , ρ_{1} , ρ_{2} , 1f and 2f are the Lamé constants, density, and volume fraction of the two component
materials.

These expressions differ from that given in [12] in that all the cross-terms of mass density and elastic moduli have a minus sign instead of a plus sign. It is exactly due to this “small” change that the results are dramatically different from that given in [12]. It is worth mentioning that the improved model is developed by introducing the concept of exterior product, which has been extensively used in Differential Geometry [157]. It provides an ideal tool for dealing with integrals with multiple independent variables. As pointed out by Calvet and Margerin, the spectral function obtained in [12] gives two peaks in the high frequency domain for Media E, but there should be only one longitudinal mode for Media D and E and one transverse mode for Medium E. Contrarily, the spectral functions of Media D and E obtained using the new formula gives spectral curves exactly the same as predicted, i.e., one peak for longitudinal waves in Media D and E and one peak for transverse waves in Medium E in the whole frequency range, which perfectly resolves the raised question. For more details please see [129].

# Instability of the WFMS model in predicting the dispersion behavior of weak-property-fluctuation elastic media

To keep consistent with [12], we use the same properties
and the same numbering system for materials A-E, as shown
in table 3. Materials F and G are introduced additionally for
the purpose of comparing the stability of the two models. The
materials considered in this section are all equal-phased, i.e.,
the volume fraction of the two phases are equal, f_{1}=f_{2}=50%.
As a quantitative indicator of the property fluctuation, the
fractional velocity fluctuations of each component phase,
defined by δV_{L1}/V_{0L}= (V_{L1}- V_{0L})/ V_{0L} etc. are shown in table 4.

At this point it is necessary to highlight the features of each material: the shear modulus μ is the only different property of the two constituent materials of medium A, while the Lamé constant λ is the only different property for medium B, both the Lamé constants λ and μ are different for medium C. As is seen from table 3, the two component materials of both Media A and C have different longitudinal and transverse wave velocities, while the component phases of Medium B have different longitudinal velocities but identical transverse velocity. The two components of Medium D have a unique combination of Lamé constants such that their longitudinal velocities are the same, while their transverse velocities are still different. Medium E has a more special combination of material properties for which both the longitudinal and the transverse velocities of the two phases are equal. Medium F and G are general materials for which the two component materials have different elastic constants and densities.

Figure 8 shows the longitudinal wave dispersion and
attenuation of Medium A, which are calculated from Eq.
(88) and Eq. (92) for SFMS and WFMS models, respectively.
From the results, we can see the velocity and attenuation
calculated from the WFMS model show excellent agreement
with that obtained using the SFMS model. The longitudinal
velocity starts from the quasi-static limit V_{0L}, and then
slightly decreases as the frequency increases. Meanwhile,
the dimensionless attenuation α_{L}d increases nonlinearly
from zero to 0.1. As the dimensionless frequency k_{0L}d
approaches 50, a second, faster mode begins to appear, but
with much larger attenuation and slight positive dispersion.
As the frequency increases further, the velocities of the
two modes quickly approach the upper and lower limits
V_{L1} and V_{L2}, respectively, and the attenuation coefficients
reach a saturation value near unity. We can see the two
models give accurate results in the whole frequency range,
from the quasi-static region to the geometric domain. Other
scattering models based on different approximations are
only valid in a limited frequency range. For example, the Born
approximation is only valid in a relatively low frequency
domain, corresponding to 0< k_{0L}d < 70 for this case, while
geometric approximation is only valid in high frequency
range, corresponding to k_{0L}d > 150 for this case. In addition
to dispersion, the new model can also give the accurate
attenuation. All these unique features show that the multiple
scattering models have incomparable advantages compared to other scattering models. The WFMS model has been
widely used in characterization of polycrystalline alloys,
for which only the elastic stiffness is a random variable.
Previous calculations show the WFMS model can give stable
prediction for dispersion and attenuation of coherent waves
in polycrystals. Here we will show that the WFMS model
gives unstable prediction for the dispersion and attenuation
of two-phase materials for which both the elastic stiffness
and the density are random variables.

The dispersion and attenuation of longitudinal waves of Medium F calculated using the two models are shown in figure 9. It is seen from figures 9 (a) and (b) that the velocity predicted by the SFMS model first undergoes negative dispersion and then become positive dispersive, Contrary to Medium A, a second, slower mode appears in addition to the original, faster one at intermediate frequencies. At high frequencies, they approach the upper and lower limits of the two components, which is similar to Medium A. From these results, we can also observe that the dispersion given by the WFMS model have a similar pattern as Medium A, but it gives negative attenuation at dimensionless frequencies below 5.5, while the SFMS model gives positive attenuation in the whole frequency domain. Negative attenuation is physically impractical since it means the wave amplitude increases with propagation distance while no energy is input into the system. For velocity dispersion, differences in velocity up to 5% are observed between the results obtained by the two models. This example shows the performance of the WFMS model is unstable, in certain cases it gives wrong predictions.

Next, we examine the propagation characteristics
of transverse waves predicted by the two models. The
transverse dispersion and attenuation of Medium A are
shown in figure 10. It is seen the dispersion curves calculated
from the two models exhibit excellent agreement. However, the attenuation predicted by the WFMS model is negative
in nearly the whole frequency range and form an image of
the curves given by the SFMS model symmetric about the
axis α_{T}d=0. Figure 10(c) shows the detailed variation the
attenuation in frequency range (0, 1.0). In this range, the
WFMS attenuation first increases with frequency. After
reaching its positive maximum, it decreases with frequency
and then becomes negative. This oscillation behavior
prohibits any attempts to remedy the defect simply by
reversing the sign of the attenuation.

As an additional example, figure 11 gives the dispersion and attenuation curves of transverse waves in Medium G. In this case the velocities predicted by the two models agree well at frequencies lower than 50, and the discrepancy becomes large at high frequencies. Moreover, the velocities calculated from the WFMS model do not converge to its geometric limits. Although it gives positive values, the WFMS model underestimates the attenuation of the slow mode and overestimates that of the fast mode in the whole frequency range.

Through these examples, we can conclude that the WFMS model gives instable, and in certain cases wrong predictions of the velocity and attenuation. It is difficult to judge when the results converge to the correct solution. In all cases, the SFMS model gives stable and reasonable results in the whole frequency range. We are now in a position to examine the predictions given by the SFMS model for the propagation characteristics of coherent waves in Materials B-E, as discussed in [12]. For simplicity, the results calculated using the WFMS model are neglected here, and the results for longitudinal and transverse waves obtained using the SFMS model are presented in figures 12 and 13, respectively.

From the results, we can see Medium B has one longitudinal
mode at low frequencies and two at high frequencies, while
only one transverse mode with negligible attenuation can be
found in the whole frequency range. Both longitudinal and
transverse waves in Medium C have one propagation mode
at low frequencies and two at high frequencies. All these
predictions are consistent with that given in [12]. Media D
and E provide two subtle examples to examine the reliability
of different models. For Medium E, as pointed out in [12],
the two component materials have the same longitudinal
velocity but different transverse velocities, so there should
be one longitudinal mode in the whole frequency range while the transverse waves behave normally, i.e., one mode
at low frequencies and two at high frequencies. Contrary
to this presupposition, the spectral function in [12] gives
two longitudinal modes at high frequencies. As discussed
before, this is due to a mistake in the expression of the mass
operators. Figure 13 shows results drastically different from
those in [12], the SFMS model predicts one longitudinal
mode in the whole frequency range, one transverse mode at
low frequencies and two at high frequencies, which perfectly
confirms the original judgment. Different from that of
Medium D, both the longitudinal and transverse waves of the
two phases in Medium E have the same velocity. Once again,
the predictions given by SFMS model show one transverse
mode in the whole frequency range. It is also noted that when
there is only one mode, the relative variation of velocities is
very small, less than 0.001, which can be regarded as zero.
Meanwhile, the dimensionless attenuation is also very small,
normally less than 10^{-3}. All these predictions are in excellent
agreement with the conjectures in [12].

Medium | ρ_{1}(kg/m³) |
ρ_{2}(kg/m³) |
λ_{1}(GPa) |
λ_{2}(GPa) |
μ_{1}(GPa) |
μ_{2}(GPa) |
V_{L1}(m/s) |
V_{L1}(m/s) |
V_{T1}(m/s) |
V_{T2}(m/s) |
---|---|---|---|---|---|---|---|---|---|---|

A |
11000 | 11000 | 800 | 800 | 380 | 340 | 11908.74 | 11599.37 | 5877.54 | 5559.59 |

B` |
11000 | 11000 | 880 | 800 | 380 | 380 | 12210.28 | 11908.74 | 5877.54 | 5877.54 |

C` |
11000 | 11000 | 800 | 840 | 340 | 380 | 11599.37 | 12060.45 | 5559.59 | 5877.54 |

D |
11000 | 11000 | 880 | 800 | 340 | 380 | 11908.74 | 11908.74 | 5559.59 | 5877.54 |

E |
11550 | 11000 | 840 | 800 | 399 | 380 | 11908.74 | 11908.74 | 5877.54 | 5877.54 |

F |
11000 | 10500 | 880 | 800 | 380 | 340 | 12210.28 | 11872.34 | 5877.54 | 5690.43 |

G |
11000 | 11500 | 880 | 880 | 380 | 370 | 12210.28 | 11868.85 | 5877.54 | 5672.21 |

**Table 3:** Material Properties of Media A-G.

Medium | V_{0L}(m/s) |
V_{0T}(m/s) |
V_{L}(m/s) |
V_{T}(m/s) |
δV_{L1}/ V_{0L} |
δV_{L2}/ V_{0L} |
δV_{T1}/ V_{0T} |
δV_{T2}/ V_{0T} |
---|---|---|---|---|---|---|---|---|

A | 11751.97 | 5716.68 | 11755.08 | 5720.78 | 0.01334 | -0.01298 | 0.02814 | -0.02748 |

B | 12056.68 | 5877.54 | 12060.45 | 5877.54 | 0.01274 | -0.01227 | -3.17×10^{-7} |
-3.17×10^{-7} |

C | 11826.75 | 5716.69 | 11832.16 | 5720.78 | -0.01923 | 0.01976 | -0.02748 | 0.02814 |

D | 11904.39 | 5716.70 | 11908.74 | 5720.78 | 0.00037 | 0.00037 | -0.02748 | 0.02813 |

E | 11906.59 | 5876.73 | 11908.74 | 5877.54 | 0.00018 | 0.00018 | 0.00014 | 0.00014 |

F | 12036.73 | 5782.79 | 12046.42 | 5786.91 | 0.01442 | -0.01366 | 0.01638 | -0.01597 |

G | 12036.80 | 5773.27 | 12036.98 | 5773.50 | 0.01441 | -0.01395 | 0.01806 | -0.01751 |

**Table 4:** Reference velocities of longitudinal and transverse waves of Media A-G.

**Figure 8:**Comparison of the velocity (a) and attenuation (b) of medium A calculated using SFMS and WFMS model

**Figure 9:** Comparison of velocity (a) and attenuation (c) of medium F predicted by SFMS and WFMS models. (b) is a semi-logarithmic coordinate plot of (a) and (d) is an enlarged view of (c).

**Figure 10:** Velocity and attenuation of medium A calculated using the SFMS and WFMS models.

**Figure 11:** Velocity and attenuation of medium E calculated using SFMS and WFMS model.

**Figure 12:** Dispersion and attenuation of longitudinal waves in Media B-E calculated using the SFMS model.

**Figure 13:** Dispersion and attenuation of transverse waves in Media B-E calculated using the SFMS model.

Material | ρ (kg/m³) | C_{11} (GPa) |
C_{12} (GPa) |
C_{66} (GPa) |
V_{L} (m/s) |
V_{T} (m/s) |
---|---|---|---|---|---|---|

Bone | 1850 | 29.60 | 17.60 | 6.00 | 4000.00 | 1800.90 |

Water | 1000 | 2.37 | 2.37 | 0 | 1539.48 | 0 |

**Table 5:** Material properties of the component phases of cortical bone.

# Failure of the WFMS model in predicting the dispersion behaviors of strong-propertyfluctuation elastic media

In this section, we examine the velocity and attenuation of strong-property-fluctuation materials predicted by the two models. Cortical bone is a typical strong-propertyfluctuation material, for which the two component phases: solid bone frame and water/marrow saturated pores, have drastically different material properties, as shown in table 5. As a simplified mechanical model, cortical bone is assumed to be comprised of a homogeneous isotropic solid and water-saturated spherical pores. The pores are uniformly distributed in the solid frame, so the cortical bone is a statistically homogeneous medium.

The reference velocities for cortical bones with different porosity are summarized in table 6 and plotted in figure 14.

From figure 14 we see the Voigt average velocity systematically overestimates the quasi-static limits of both longitudinal and transverse waves, and the differences increase dramatically as the porosity increases. These results qualitatively agree with the predictions given by the self-consistent approach [49-50].

Figure 15 shows the longitudinal dispersion and
attenuation of cortical bone with 10% porosity. According
to the prediction given by the SFMS model, the longitudinal
velocity starts from the quasi-static limit and then decreases
sharply as the frequency increases. This is the famous
phenomenon known as the anomalous negative dispersion,
which has been observed in experiments and captured
in numerical simulations [70,73,89]. After assuming its
minimum, the longitudinal velocity increases quickly. At a
dimensionless frequency around k_{0L}d=2, an additional slow
mode begins to appear and its velocity slowly increases with
frequency. At the dimensionless frequency k_{0L}d=4.5, the
velocity of the fast mode approaches the upper bound, i.e.,
the velocity of pure bone, and then the two modes quickly
separate and the velocity of the fast mode goes beyond the
upper limit. This phenomenon could not be explained in the
context of scattering, since the fastest propagation speed of
a scattered wave is the longitudinal velocity in pure bone.
This does not mean that the new model is invalid, instead,
it tells us that the coherent wave disappears. The rationale
behind this explanation is as follows: As the dimensionless
frequency increases, the wavelength becomes shorter and
shorter. When the wavelength is comparable to the size of a single scatterer, the wave is able to discern the structure
of individual scatterer and the interaction of the scatterers
with the wave gets significantly enhanced. Large property
contrast further strengthens the wave-scatterer interaction.
As a consequence, the incoherent component occupies a
large proportion of the total random wave field. Thus, when
the frequency goes beyond a certain limit, the wave losses
coherence. In our model, this critical frequency is identified
as the frequency at which the coherent wave velocity goes
beyond the faster velocity of the two component phases. The
disappearance of coherent waves is systematically studied
in Sheng [112]. The loss of coherence is also reported in Sato
[3,58,59], where the experimental studies of the coherent
wave propagation and dismiss are presented. In seismology,
this frequency range is called the saturated scattering
regime by Wu [1]. Wu proposed a seismic ray explanation
of this phenomenon: In this regime, the wave amplitude
fluctuations are saturated and rays split into numerous
microrays and interfere with each other, no coherent waves
exist. In figure 15, no similarities can be observed between
the predictions given by the two models. The WFMS model
gives wrong initial guess, cannot reveal the negative
dispersion, and unable to predict the frequency at which
the coherent waves disappear. Moreover, the WFMS model
gives negative attenuation at frequencies below k_{0L}d=5.5.

The transverse wave dispersion and attenuation are
depicted in figure 16. According to the results calculated
from the SFMS model, the velocity of transverse waves starts
from the quasi-static limit and decreases monotonically as
the frequency increases. At the dimensionless frequency
around k_{0T}d=2, an additional faster mode appears. This
mode has nearly the same velocity as that of the original
mode but with much larger attenuation, so it is very difficult
to observe in experiments. As the frequency continues
to increase, the fast mode undergoes positive dispersion
while the velocity of the slow mode still decreases. When
the dimensionless frequency k_{0T}d reaches 5, the velocity of
the fast wave exceeds the transverse velocity of pure bone,
which indicates the disappearance of coherent transverse
waves. Once again, the WFMS model fails. It gives positive
dispersion at low frequencies and negative attenuation in
the whole frequency range.

Through the above discussion we can draw the following major conclusions:

1) The performance of the WFMS model is unstable, in certain cases it gives results with large errors or physically impractical results, such as negative attenuation, while the SFMS model gives very accurate results and the performance is extremely robust;

2) For two-phase media with a unique combination of mass density and Lamé constants such that both phases have the same longitudinal and/or transverse wave velocity, the SFMS model gives only one longitudinal and/or transverse propagation mode in the whole frequency range, the question raised in [12] has been resolved perfectly;

3) The coexistence of two bulk modes at intermediate to high frequency range is a dynamic bifurcation phenomenon, which universally exists in nearly all types of heterogeneous materials, it is not an artefact and the model has no deficiency in this sense;

4) The Voigt average velocity always overestimates the quasi-static velocity for heterogeneous media. This error becomes unacceptable for strong-property-fluctuation materials;

5) The WFMS model completely fails for strong-propertyfluctuation materials, while the SFMS model still can give accurate prediction of the dispersion and attenuation behaviors of the coherent waves, it can also indicate the disappearance of the coherent waves by giving a velocity exceeding the upper bound of the two component phases;

6) The spectral function approach developed in [12] is unable to reveal the accurate dispersion and attenuation in the transition frequency range, and cannot distinguish between negative attenuation and positive attenuation, while the new model can accurately capture all these characteristics in the whole frequency range.

**Figure 14:** Quasi-static limit of the longitudinal and transverse wave velocities.

Porosity | ρ(kg/m³) | λ (GPa) | μ (GPa) | V_{0L}(m/s) |
V_{0T}(m/s) |
V̅_{L}(m/s) |
V̅_{T}(m/s) |
---|---|---|---|---|---|---|---|

f_{pore}=1% |
1841.5 | 17.13 | 5.89 | 3962.22 | 1788.43 | 3990.74 | 1796.00 |

f_{pore}=2% |
1833.0 | 16.67 | 5.78 | 3924.41 | 1775.75 | 3981.37 | 1791.05 |

f_{pore}=3% |
1824.5 | 16.22 | 5.67 | 3886.58 | 1762.87 | 3971.89 | 1786.03 |

f_{pore}=4% |
1816.0 | 15.78 | 5.56 | 3848.74 | 1749.76 | 3962.29 | 1780.96 |

f_{pore}=5% |
1807.5 | 15.35 | 5.45 | 3810.88 | 1736.44 | 3952.59 | 1775.82 |

f_{pore}=6% |
1799.0 | 14.93 | 5.34 | 3773.02 | 1722.88 | 3942.77 | 1770.61 |

f_{pore}=7% |
1790.5 | 14.52 | 5.23 | 3735.16 | 1709.09 | 3932.83 | 1765.35 |

f_{pore}=8% |
1782.0 | 14.11 | 5.12 | 3696.54 | 1695.04 | 3922.77 | 1760.01 |

f_{pore}=9% |
1773.5 | 13.72 | 5.01 | 3658.68 | 1680.75 | 3912.58 | 1754.61 |

f_{pore}=10% |
1765.0 | 13.34 | 4.90 | 3620.84 | 1666.19 | 3902.28 | 1749.14 |

f_{pore}=15% |
1722.5 | 11.55 | 4.34 | 3427.03 | 1587.32 | 3848.77 | 1720.70 |

f_{pore}=20% |
1680.0 | 9.98 | 3.79 | 3233.01 | 1501.98 | 3791.75 | 1690.31 |

f_{pore}=25% |
1637.5 | 8.60 | 3.24 | 3034.66 | 1406.64 | 3730.83 | 1657.74 |

f_{pore}=30% |
1595.0 | 7.41 | 2.69 | 2831.75 | 1298.66 | 3665.56 | 1622.72 |

f_{pore}=35% |
1552.5 | 6.41 | 2.16 | 2628.96 | 1179.54 | 3595.44 | 1584.95 |

f_{pore}=40% |
1510.0 | 5.57 | 1.64 | 2420.94 | 1042.16 | 3519.86 | 1544.06 |

f_{pore}=45% |
1467.5 | 4.89 | 1.15 | 2213.48 | 885.24 | 3438.09 | 1499.57 |

f_{pore}=50% |
1425.0 | 4.36 | 0.71 | 2013.99 | 705.87 | 3349.26 | 1450.95 |

**Table 6:** Material properties of the reference medium of cortical bone with different porosity.

**Figure 15:** Longitudinal velocity and attenuation of cortical bone calculated using the SFMS and WFMS models.

**Figure 16:** Transverse velocity and attenuation of cortical bone calculated using the SFMS and WFMS models.

# Practical Applications of the New Model

In this section, we perform comprehensive studies on the propagation behavior of multiple scattered elastic waves in a series of heterogeneous media. As mentioned in the Introduction, seismology, ultrasonic nondestructive evaluation and bone quantitative ultrasound are three major fields in which multiple scattering theory is extensively used. Most materials of practical importance, including the heterogeneous lithosphere, particulate composite materials, poroelastic materials, polycrystals with strongly anisotropic crystallites, and human cortical bone exhibit heterogeneities with strong property fluctuation. Moreover, the central frequency of practical elastic waves ranges from 0.01 Hz to 50 MHz or even higher, which leads to ratios of wavelength to characteristic dimension of heterogeneities covering several orders of magnitude, from about 0.01 for seismic waves in the lithosphere to 100 or even larger for ultrasonic waves in fine-grain polycrystals or nanoparticulate composite materials. Therefore, accurate and quantitative characterization and reliable inversion of microstructures require powerful multiple scattering theories that applicable to strong-property-fluctuation materials and valid in the whole frequency range. The new model exactly meets these requirements since it gives up the weak-propertyfluctuation approximation and does not introduce any approximation for the frequency. The new model provides a unified theoretical framework which establishes accurate quantitative relationship between the wave dispersion and attenuation characteristics and the microstructure features and is naturally suitable for extracting the microstructural information, such as the average size of the inclusions, the volume fraction of each component, the mass density and elastic stiffness fluctuation. To show its power in practical applications, we consider four examples: scattering and attenuation of seismic waves propagating in the Earth’s lithosphere, scattering of ultrasonic waves in the porous aluminum and two-phase alloy, and scattering of ultrasound in human cortical bone. From the point of view of material composition, these examples cover nearly all types of twophased materials, including the solid-solid, solid-vacuum and solid-fluid combinations.

# Applications in seismology

The planet Earth exhibits different degrees of heterogeneity from the inner core [13], to the mantle [15,32,158], and finally to the lithosphere [3,8,158-160]. The apparent attenuation of major arrivals and the existence of coda waves in nearly all the recorded seismograms are direct evidences of the existence of such inhomogeneities. However, due to lack of knowledge of wave propagation in such highly inhomogeneous media, the classical seismology is based on the multilayered model, in which each layer is treated as laterally homogeneous and vertically varying materials as a natural result of the action of gravitation. With the development of modern geophysics and seismology, more and more seismologists realize that the Earth also exhibits considerable lateral heterogeneity and tend to analyze the measured seismograms using scattering theories based on the random medium model [3,8,9,11,15,178,179]. The prominent seismologist Aki first noticed the importance of coda waves and suggested that coda waves contain rich information about the statistical property of the heterogeneous lithosphere [7]. Aki [5,6], Wu [10] and Sato [3] also proposed scattering models to explain the apparent attenuation of the direct longitudinal and transverse arrivals. Up to date, scattering and attenuation of seismic waves have become the central topic of seismology [1-4]. A brief literature review shows that most previous studies are based on certain approximations, such as the Born approximation [3], the Rytov approximation [3], the single scattering approximation [18], the scalar wave approximation [17,161], or the weak-fluctuation approximation [2,16]. As pointed out in the Introduction, these approximations put severe restrictions on the application of these models. Consequently, a complete understanding of the propagation behavior of seismic waves is still missing. Many fundamental aspects of seismic waves are still poorly understood, some of which are listed below:

• Is the attenuation of seismic waves mainly caused by scattering or by other intrinsic mechanisms?

• Is the single scattering approximation enough to explain the apparent attenuation?

• Can the Kramers-Kronig relation be used to explain the measured velocity and attenuation?

• Does the Mohorovičić discontinuity really exist?

• Is the multi-layered model appropriate to explain the seismic data?

• Is the classical ray theory applicable to the explanation of seismic data?

• What are the scattering dispersion and Q-factor in the whole frequency range?

With these questions in mind, we first conduct an in-depth investigation on the fundamental propagation behavior of longitudinal and transverse seismic waves in the Earth’s lithosphere based on a realistic random medium model. The numerical results calculated from various combinations of material properties (density and elastic moduli) of the real rocks in the lithosphere will provide us important insights into all these questions. Through comparison of the new results with that observed in local, regional and global earthquakes, we will give novel and consistent answers to a series of longstanding problems.

Evidence from amplitude and phase fluctuation observed
by the large scale seismic arrays LASA and NORSAR show that
in the lithosphere, there exists a velocity fluctuation about
2% to 10% and the correlation distance of the fluctuation is
about 10-20 km [5,8,160]. Moreover, it is also discovered that
the velocity fluctuations are remarkably uniform. Based on
these observations, the lithosphere is frequently modeled as
a statistically homogeneous and isotropic random medium.
Two-point correlation function is an important characteristic
function to characterize various heterogeneous media. Up to
now, random medium model with Gaussian, exponential and
Von Karman correlation functions have all been adopted to
describe the heterogeneities in the Earth [3,5,159,160,177].
However, it is reported that the Gaussian correlation function
is too smooth to represent the actual inhomogeneities
in the Earth. Transverse coherence function (TCF) and
angular coherence function (ACF) analysis measured by
the LASA seismic array reveal [8] that the exponential or the Von Karman-type correlation functions fit the seismic
data better. For the above reasons, in the present work we
model the heterogeneous lithosphere as an exponentialtype random medium. To model the velocity fluctuation, we
consider a two-phase continuum composed of a hard phase
with relatively large longitudinal and transverse velocities
and a soft phase with relatively low velocities. Since the
velocity fluctuation in the lithosphere is rather uniform, we
assume that the two phases have equal volume fraction, i.e.,
f_{1}=f_{2}=50%.

Dispersion and attenuation are two prominent features of waves propagating in a heterogeneous medium. However, researches concerning the dispersion of seismic waves are rather limited. This is partially because of the irregular surface of the Earth which significantly disturbs the measurement of dispersion. Another reason is that most seismic signals lie in the high frequency range, or even in the geometric range, in which the seismic waves have very small dispersion. The majority of existing studies are concentrated on the attenuation of direct arrivals and coda waves. It is well known that scattering attenuation and intrinsic attenuation are two major physical mechanisms for the overall attenuation of seismic signals. Intrinsic attenuation transfers elastic energy into heat and thus causes energy loss of the total wavefield. Contrarily, scattering cause magnitude decrease of the coherent waves by exciting coda waves, while the elastic energy of the total wavefield is conserved. The relative contribution of the two mechanisms to the overall seismic attenuation is an open problem in seismology. Nevertheless, many seismologists believe that the scattering attenuation contribute the major part of the total attenuation [3]. It was also pointed out in [9] that multiple scattering theory is necessary to separate the contributions from the two mechanisms. In this work, we assume that the scattering attenuation is the dominant mechanism and all the materials are considered as purely elastic materials. The answer to this question will be drawn after obtaining the exact numerical solution and comparing the numerical results with measured seismic data.

Seismologists usually quantify the attenuation of seismic
waves by using the inverse quality factor Q^{-1} instead of the
attenuation coefficient α. For simplicity, we call the inverse
Q factor as Q-factor directly. The quality factor is defined
as the ratio of the energy dissipated in a cycle of vibration
to the total energy supplied. Carcione and Cavallini [162]
conducted a rigorous derivation of the Q factor based on this
definition and gives the following expression:

${Q}^{-1}=\frac{\mathrm{Im}({k}^{2})}{\mathrm{Re}({k}^{2})}$ (108)

where k is the wavenumber of the longitudinal or transverse waves.

In textbooks of seismology [2, 3], the quality factor is also defined by the asymptotic expression of a spherically outgoing body wave:

$u(r,f)=\frac{1}{r}\mathrm{exp}\left(-\frac{\pi f}{QV}r\right)$, (109)

where Q is the quality factor, f is the frequency, V is the velocity, r is the distance between the source and the field point, and the prefactor 1/r accounts for the geometric spreading.

Considering the definition of attenuation coefficient α:

$u(r,f)=\frac{1}{r}\mathrm{exp}\left(-\alpha r\right)$, (110)

we have the following identity:

$\alpha =\frac{\pi f}{QV}$, (111)

or equivalently:

${Q}^{-1}=\frac{\alpha V}{\pi f}$. (112)

On the other hand, k can be split into real and imaginary parts as:

$k=\frac{2\pi f}{V}+i\alpha $. (113)

Substitution of (113) into (108) yields:

${Q}^{-1}=\frac{2\alpha \frac{2\pi f}{V}}{{\left(\frac{2\pi f}{V}\right)}^{2}-{\alpha}^{2}}$. (114)

When the attenuation coefficient is small compared to the real part of k, terms of second and higher order in α can be neglected, thus we have

${Q}^{-1}\approx 2\alpha \frac{V}{2\pi f}\text{=}\frac{\alpha V}{\pi f}$, when $\frac{\alpha V}{2\pi f}\ll 1$. (115)

Comparing Eq. (115) with Eq. (112), we see the two definitions are equivalent. Since the definition in (108) is more accurate, we use this definition in subsequent calculations.

The ratio of the longitudinal Q-factor to the transverse Q-factor can be obtained from Eq. (115), given by:

$\frac{{Q}_{L}^{-1}}{{Q}_{T}^{-1}}\approx \frac{{\alpha}_{L}{V}_{L}}{{\alpha}_{T}{V}_{T}},$, when $\frac{\alpha V}{2\pi f}\ll 1$. (116)

Numerical calculations in Sec. III show that in the geometric regime, the attenuation coefficients of the longitudinal and transverse waves in weak-property fluctuation media satisfy the following relation:

${\alpha}_{L}d\approx {\alpha}_{T}d\approx 1,$ (117)

which leads to α_{L} ≈α_{T}, consequently we obtain:

$\frac{{Q}_{L}^{-1}}{{Q}_{T}^{-1}}\approx \frac{{V}_{L}}{{V}_{T}},$ when $f\to \infty .$ (118)

Equation (118) gives a rough estimation of the Q-factor ratio for seismic waves in the geometric regime. It tells us that in the geometric regime the Q-factor ratio is frequencyindependent and solely determined by the wave velocities. This conclusion will be verified through numerical calculations for a series of material combinations, as shown in the following examples.

Velocity fluctuation can be caused either by density fluctuation or by elastic modulus fluctuation. In the following numerical examples, we study the effects of the two types of properties separately. Seismological and geophysical studies show that the density and velocity of rocks in the Earth’s lithosphere have a linear relationship, known as Birch’s law [3]. Although the specific coefficients appeared in the Birch law strongly depend on the average atomic weight of the rocks, there is a general conclusion that rocks with larger density also have greater longitudinal and transverse velocities. Geophysicists have proposed different velocity models for the substructure in the lithosphere using various seismic tomography techniques [163-165]. It is generally acknowledged that the longitudinal velocity in the lithosphere varies from 5.8 to 8.3 km/s, while the transverse wave velocity varies from 3.5 to 4.7 km/s. In the subsequent calculations, we choose the material properties following these general guidelines. We first study the effects of modulus fluctuation. The material properties of Media I-IV are listed in tables 7 and 8. It is noted that the material properties of Phase 1 do not change while the elastic moduli of Phase 2 increase gradually, which results in a velocity fluctuation from ±2.5% for Medium I to about ±6% for Medium IV.

The longitudinal wave dispersion and Q factors of Media
I-IV are depicted in figure 17. Similar to the examples
discussed in Section III, there exists only one propagation
mode with very small dispersion at low and intermediate
frequencies. At a critical frequency, an additional, faster
mode begins to appear. As the frequency continues to
increase, the velocity of the fast (slow) mode quickly
increases (decreases) and then approaches its geometric limit, i.e., the longitudinal velocity of the fast (slow) phase.
At high frequencies, the dispersions of both the fast and slow
modes are very small. As a consequence, seismic signals
at relatively low frequencies and at high frequencies can
propagate for a long distance while maintaining it waveform
nearly unchanged. To show the detailed variation at very
low frequency and very high frequency, the Q factors are
plotted in a double-logarithmic coordinate system, as shown
in the second row in figure 17. At low frequency k_{0L}d < 1, the attenuation increases from zero following a power law.
In the intermediate frequency range, the Q-factor increases
with frequency nonlinearly, then it assumes its maximum
soon after the faster mode appears. Then the attenuation
decreases with frequency following a negative power law.
The Q-factor of the fast mode is very large at its emergence
and then decreases dramatically. After the slow mode
reaching its summit, it decreases following a negative power
law similar to that of the slow mode but with a slightly larger
value. With the increase of velocity fluctuation, the frequency
of the attenuation peak decreases significantly, from k_{0L}d
=41.60 for Medium I to k_{0L}d =17.12 for Medium IV. The value
of the peak increases from about 0.047 for Medium I to 0.10
for Medium IV. The Q-factor in the geometric regime k_{0L}d >100 decreases from 0.01 to 0.001.

Figure 18 shows the dispersion and attenuation of
transverse waves. It is seen that the dispersion and Q-factors
follow a rather similar variation tendency as the longitudinal
waves, i.e., there is only one propagation mode at low frequency
and two at intermediate to high frequency, and there also
exists a peak in the transverse Q-factor curves. To compare the
relative magnitude in the same frequency scale, the Q-factors of longitudinal and transverse waves and their ratios are plotted
in figure 19. The subscripts SL, FL, ST and FT stand for the
slow longitudinal mode, the fast longitudinal mode, the slow
transverse mode and the fast transverse mode, respectively. For
convenience of subsequent discussion, we denote the frequencies
at which the Q-factors of the longitudinal and transverse waves
assume their peaks by K_{crL} and K_{crT}, respectively.

It is observed that K_{crL} is always greater than K_{crT}. At low
frequencies, the longitudinal Q-factor is smaller than that
of the transverse waves. At frequencies higher than k_{crL},
longitudinal Q-factors are always greater than transverse
Q-factors, and both of them strictly follow a negative power
law. The ratios of the longitudinal to transverse Q-factors
have a very complicated profile. At low frequencies, the ratio is relatively small, near 0.5. As the frequency increases, the
ratio increases gradually and then reaches a peak. As the
frequency continues to increase, the ratio gradually decreases
back to less than unity and then decreases sharply to its
minimum at K_{crT}. After reaching its minimum, the Q-factors
increases monotonically and reaches a stable value between
1.5 and 2.5 at K_{crL}. Since there are two sets of longitudinal
and transverse waves, we have four different Q-factor ratios
in the high frequency range. The most prominent feature in
the high frequency regime k_{0Ld} > K_{crL} is that the ratio keeps
constant at four different values. The differences among
the four values increase notably as the velocity fluctuations
increase from Medium I to Medium IV. It is also worth noting
that the peak of the Q-factor ratio decreases from 3 to 1 as
the velocity fluctuations increase from Medium I to Medium
IV. Table 9 gives the Q-factor ratios in the geometric range
and the velocity ratios of the two component phases. It is
seen the ratios roughly agrees with the approximate relation
given by Eq. (118). As the velocity fluctuation increases from
Medium I to Medium IV, the relative error increases from
3.24% to 14.6%.

Now we study the effects of density fluctuations on the dispersion and attenuation characteristics. For this case, we enforce the velocity of the two component phases be constant, and vary the density and the elastic moduli simultaneously. The material properties of Media V-VIII are given in tables 10 and 11.

Figure 20 shows the velocity and Q-factors of the
longitudinal waves. As can be seen, as the density fluctuation
increases from Medium V to Medium VIII, the dispersion of
the longitudinal waves in the intermediate frequency range
(1 < k_{0L}d < 20) experiences a remarkable increase. Moreover,
the structure of the dispersion curves is also changed
significantly: For Medium V, the low frequency branch is
connected to the slow mode at high frequencies, while for
Media VI-VIII, the low frequency branch is connected to the
high-velocity branch in the high frequency regime. Changing
the density and elastic moduli fluctuation while keeping the
velocities of the two component phases constant has less
prominent effects on the critical frequencies K_{crL} and the
peak values of the Q-factors.

The dispersion and Q-factors of transverse waves of Media V-VIII are shown in figure 21. Although the overall tendency of velocity and Q-factors are similar to that of longitudinal waves, it is noteworthy that the structure of the dispersion curves does not change as the material property fluctuation changes. For all the cases, the low frequency branch is connected to the branch of the slow mode.

To show their relative changes, the longitudinal and
transverse Q-factors and their ratios are plotted in the same
frequency scale, as shown in figure 22. As can be seen, the
fluctuation in density significantly changes the relative
magnitude of the longitudinal and transverse Q-factors in the whole frequency range. The ratio starts from about 0.5
and then increases gradually until reaching its maximum,
and then decreases rapidly to a minimum about 0.5 at K_{crT}.
The maximum value of the ratio is strongly dependent on the
property fluctuations. As we can see in the figures, it reaches
1 for Medium V and 2.75 for Medium VIII. At frequencies
greater than K_{crL}, the Q-factor ratios of the four combinations
approach four different high-frequency limits. To validate
the approximate relation given by Eq. (118), the Q-factor
ratios and the velocity ratios are listed in table 12. It is seen
that the relation is roughly satisfied within an average error
about 15%.

The materials considered in the above examples exhibit various degrees of property fluctuations, which lead to a velocity fluctuation ranging from ± 2.5% to ± 7%. In the following examples, we increase the property fluctuation of the component phases such that the fractional velocity fluctuation reaches up to ± 15%. We consider a series of media with properties chosen randomly, for which the longitudinal velocity of the slow phase ranges from 5700 m/s to 6200 m/s, the longitudinal velocity of the fast phase varies from 7800 m/s to 8300 m/s, the transverse velocity of the slow phase ranges from 3300 m/s to 3600 m/s, and the transverse velocity of the fast phase varies from 4200 m/s to 4600 m/s. The material parameters are listed in tables 13 and 14. We need to point out that the Medium XVI has much larger velocities and will be used as an exemplar model for the next section.

The longitudinal and transverse wave dispersion,
Q-factors and the Q-factor ratios of Media IX-XVI are
presented in figures 23 and 24. From the numerical
results, we can draw the following conclusions: In the
low to intermediate frequency range, i.e., 0 < k_{0L}d < 8 for
longitudinal waves and 0 < k_{0T}d < 8 for transverse waves,
there is only one longitudinal and transverse mode. The
velocities of these propagation modes are nearly the same
as that of the homogeneous reference media. The dispersion
of these modes at low frequency k_{0L}d 7lt; 1 or k_{0T}d < 1 is
negligible, while in the frequency range 1 < k_{0L}d, k_{0T}d < 8 the
dispersion increases slightly but still very small. In the low
frequency range k_{0L}d < 1 or k_{0T}d < 1, the Q-factors of these
media increase from 10^{-7} to 0.01 following a power law. In
the frequency range 1 < k0Ld, k_{0T}d < 8, the Q-factors increase
with frequency following a complicated nonlinear law, and
the relative magnitude of the longitudinal and transverse
Q-factors strongly depend on the material properties. We
can also find that the Q-factors increase from 0.01 to 0.05
in this range. In the moderately high frequency range
8 < k_{0L}d, k_{0T}d < 30, an additional longitudinal mode and
transverse mode starts to appear, while the dispersions of
both modes are extremely large. The velocities of the two
sets of longitudinal and transverse waves approach that
of the fast and slow phases, respectively. The Q-factors in this range first increase from 0.05 to a peak value ranging
from 0.1 to 0.2, and then decrease to about 0.05 following
an inverse power law. In the high frequency range k_{0L}d, k_{0T}d > 30, the velocities of both modes of longitudinal and
transverse waves asymptotically approach their geometric
limits and the dispersion is nearly negligible. The Q-factors
in this range decrease from 0.05 to 0.001 or even smaller
following a negative power law. The figures in which the
longitudinal and transverse Q-factors plotted in the same
scale show that the Q-factor of longitudinal waves is always
smaller than that of the transverse waves at low frequencies
k_{0L}d, k_{0T}d < 1, and greater than the transverse Q-factors in the
high frequency range k_{0L}d, k_{0T}d > 30. The critical frequency
at which the longitudinal Q-factors reaching their summits
is always greater than that of the transverse Q-factors, i.e.
K_{crL} > K_{crT}. The Q-factor ratios exhibit a rather complicated
pattern. At low frequencies k_{0L}d, k_{0T}d < 1, the Q-factor
ratios increase gradually from about 0.5. As the frequency
continues to increase, the Q-factor ratios increase rapidly
and reaches a summit ranging from 1.0 to 3.0 at k_{0T}d = 2~3.
After assuming its summit, the Q-factor ratios decrease
rapidly until reaching the minimum at K_{crT}. The minimum
value is also strongly dependent on the material properties,
which normally ranges from 0.5 to 1.2. At frequencies higher
than K_{crT}, The Q-factor ratio increases rapidly again. Since in
the high frequency range, there are two sets of longitudinal
and transverse waves, there are four different combination
of Q-factor ratios. As is evident from the figures, the highfrequency limits of the ratios vary from 1.1 to 3.2, for
which the range is much larger than that of Media I-VIII. It
is worth noting that the high-frequency limits of the four
ratios indicate the following relation: Q^{-1}_{FL} > Q^{-1}_{SL} > Q^{-1}_{FT} > Q^{-1}_{ST}.
This conclusion informs us that for high frequency seismic
waves and at large epicentral distances, the amplitude of
the longitudinal waves is smaller than that of transverse
waves. Moreover, the slow transverse wave has the largest
amplitude and carries the largest amount of energy,
which is consistent with observations in real earthquakes.
Table 15 shows the geometric limits of Q-factor ratios and
velocity ratios of component materials of Media IX-XVI. It
is seen the discrepancies between the numerical results
and the approximation formula Eq. (118) are relatively
large compared with that for Media I-VIII, especially for the
discrepancy between Q^{-1}_{FL}/Q^{-1}_{ST} and V_{L2}/V_{T1}. This is because
the fractional velocity fluctuations for Media IX-XVI are
larger than that for Media I-VIII.

Through the above numerical examples, we see the dispersion and attenuation are very sensitive to the material property fluctuations. Both density and elastic moduli have significant influence on the propagation characteristics of seismic waves. All these theoretical results help us gain important insight into the dispersion and attenuation characteristics of seismic waves measured in local, regional and global earthquakes. In subsequent sections, the theoretical results will be applied to explain seismic data collected worldwide.

Medium | ρ_{1}(kg/m³) |
ρ_{2}(kg/m³) |
λ_{1} (GPa) |
λ_{2} (GPa) |
μ_{1} (GPa) |
μ_{2} (GPa) |
V_{0L}(m/s) |
V_{L1}(m/s) |
V_{L2}(m/s) |
δV_{L1}/V_{0L} |
δV_{L2}/V_{0L} |
---|---|---|---|---|---|---|---|---|---|---|---|

I | 3000 | 3100 | 50 | 60 | 45 | 50 | 7003.94 | 6831.30 | 7184.21 | -0.0250 | 0.0260 |

II | 3000 | 3100 | 50 | 60 | 45 | 53 | 7068.83 | 6831.30 | 7317.68 | -0.0336 | 0.0352 |

III | 3000 | 3100 | 50 | 65 | 45 | 55 | 7161.58 | 6831.30 | 7513.43 | -0.0461 | 0.0491 |

IV | 3000 | 3100 | 50 | 65 | 45 | 60 | 7261.76 | 6831.30 | 7725.12 | -0.0593 | 0.0638 |

**Table 7:** Material Properties and longitudinal velocities of Media I-IV.

**Figure 17:** Effects of elastic moduli fluctuation on longitudinal wave dispersion (first row) and Q factor (second row).

Medium | ρ_{1}(kg/m³) |
ρ_{2}(kg/m³) |
λ_{1} (GPa) |
λ_{2} (GPa) |
μ_{1} (GPa) |
μ_{2} (GPa) |
V_{0T}(m/s) |
V_{T1}(m/s) |
V_{T2}(m/s) |
δV_{T1}/V_{0T} |
δV_{T2}/V_{0T} |
---|---|---|---|---|---|---|---|---|---|---|---|

I | 3000 | 3100 | 50 | 60 | 45 | 50 | 3943.71 | 3872.98 | 4016.10 | -0.0180 | 0.0180 |

II | 3000 | 3100 | 50 | 60 | 45 | 53 | 4001.69 | 3872.98 | 4134.82 | -0.0322 | 0.0333 |

I | 3000 | 3100 | 50 | 60 | 45 | 55 | 4039.03 | 3872.98 | 4212.12 | -0.0411 | 0.0429 |

I | 3000 | 3100 | 50 | 60 | 45 | 60 | 4128.13 | 3872.98 | 4399.41 | -0.0618 | 0.0657 |

**Table 8:** Material Properties and transverse velocities of Media I-IV.

**Figure 18:** Effects of elastic moduli fluctuation on transverse wave dispersion (first row) and Q factor (second row).

**Figure 19:** Comparison of longitudinal and transverse Q-factors (first row) and the ratios of longitudinal to transverse Q-factors (second row) of Media I-IV

Medium | Q^{-1}_{SL}/ Q^{-1}_{ST} |
Q^{-1}_{FL}/ Q^{-1}_{ST} |
Q^{-1}_{SL}/ Q^{-1}_{FT} |
Q^{-1}_{FL}/ Q^{-1}_{FT} |
V_{L1}/ V_{T1} |
V_{L2}/ V_{T1} |
V_{L1}/ V_{T2} |
V_{L2}/ V_{T2} |
---|---|---|---|---|---|---|---|---|

I | 1.80 | 1.91 | 1.68 | 1.77 | 1.76 | 1.85 | 1.70 | 1.79 |

II | 1.82 | 2.00 | 1.60 | 1.76 | 1.76 | 1.89 | 1.65 | 1.77 |

III | 1.82 | 2.11 | 1.54 | 1.79 | 1.76 | 1.94 | 1.62 | 1.78 |

IV | 1.86 | 2.28 | 1.44 | 1.77 | 1.76 | 1.99 | 1.55 | 1.76 |

**Table 9:** The geometric limits of Q-factor ratios and the velocity ratios of component materials of Media I-IV.

Medium | ρ_{1}(kg/m³) |
ρ_{2}(kg/m³) |
λ_{1} (GPa) |
λ_{2} (GPa) |
μ_{1} (GPa) |
μ_{2} (GPa) |
V_{0L}(m/s) |
V_{L1}(m/s) |
V_{L2}(m/s) |
δV_{L1}/V_{0L} |
δV_{L2}/V_{0L} |
---|---|---|---|---|---|---|---|---|---|---|---|

V | 3000 | 3100 | 73.50 | 99.20 | 36.75 | 49.60 | 7474.46 | 7000.00 | 8000.00 | -0.0635 | 0.0703 |

VI | 3000 | 3100 | 73.50 | 105.60 | 36.75 | 52.80 | 7466.91 | 7000.00 | 8000.00 | -0.0625 | 0.0714 |

VII | 3000 | 3100 | 73.50 | 108.80 | 36.75 | 54.40 | 7461.77 | 7000.00 | 8000.00 | -0.0619 | 0.0721 |

VIII | 3000 | 3100 | 73.50 | 112.00 | 36.75 | 56.00 | 7455.85 | 7000.00 | 8000.00 | -0.0611 | 0.0730 |

**Table 10:** Material Properties and longitudinal velocities of Media V-VIII.

**Figure 20:** Longitudinal wave dispersions and Q factors of Media V-VIII.

Medium | ρ_{1}(kg/m³) |
ρ_{2}(kg/m³) |
λ_{1} (GPa) |
λ_{2} (GPa) |
μ_{1} (GPa) |
μ_{2} (GPa) |
V_{0T}(m/s) |
V_{T1}(m/s) |
V_{T2}(m/s) |
δV_{T1}/V_{0T} |
δV_{T2}/V_{0T} |
---|---|---|---|---|---|---|---|---|---|---|---|

V | 3000 | 3100 | 73.50 | 99.20 | 36.75 | 49.60 | 3742.80 | 3500.00 | 4000.00 | -0.0649 | 0.0687 |

VI | 3000 | 3100 | 73.50 | 105.60 | 36.75 | 52.80 | 3741.57 | 3500.00 | 4000.00 | -0.0646 | 0.0691 |

VII | 3000 | 3100 | 73.50 | 108.80 | 36.75 | 54.40 | 3740.38 | 3500.00 | 4000.00 | -0.0643 | 0.0694 |

VIII | 3000 | 3100 | 73.50 | 112.00 | 36.75 | 56.00 | 3738.85 | 3500.00 | 4000.00 | -0.0639 | 0.0699 |

**Table 11:** Material properties and transverse velocities of Media V-VIII.

**Figure 21:** Transverse wave dispersion and Q factor of Media V-VIII.

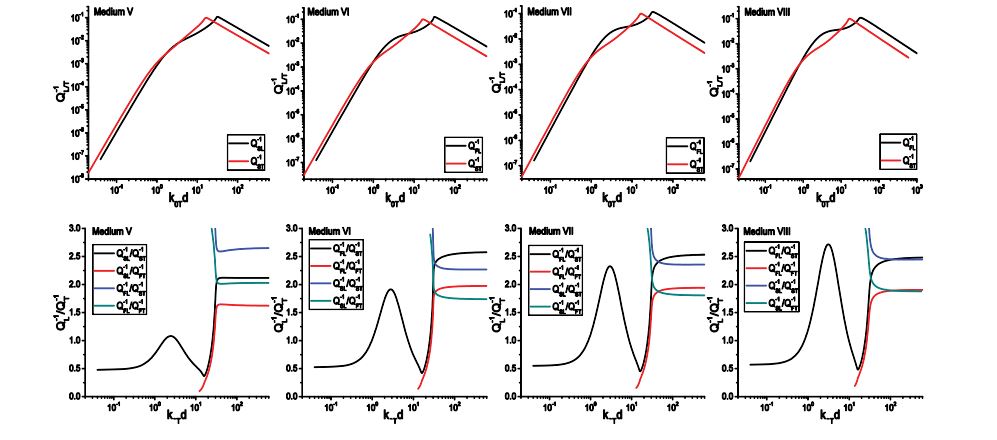

**Figure 22:** Comparison of longitudinal and transverse inverse Q-factors (first row) of media with different density fluctuation and ratio of longitudinal to transverse Q-factors (second row).

Medium | Q^{-1}_{FL}/ Q^{-1}_{ST} |
Q^{-1}_{FL}/ Q^{-1}_{ST} |
Q^{-1}_{SL}/ Q^{-1}_{FT} |
Q^{-1}_{FL}/ Q^{-1}_{FT} |
V_{L1}/ V_{T1} |
V_{L2}/ V_{T1} |
V_{L1}/ V_{T2} |
V_{L2}/ V_{T2} |
---|---|---|---|---|---|---|---|---|

V | 2.12 | 2.65 | 1.62 | 2.03 | 2.00 | 2.29 | 1.75 | 2.00 |

VI | 2.27 | 2.57 | 1.74 | 1.98 | 2.00 | 2.29 | 1.75 | 2.00 |

VII | 2.36 | 2.53 | 1.81 | 1.94 | 2.00 | 2.29 | 1.75 | 2.00 |

VIII | 2.45 | 2.48 | 1.88 | 1.91 | 2.00 | 2.29 | 1.75 | 2.00 |

**Table 12:** The geometric limits of Q-factor ratios and velocity ratios of component materials of Media V-VIII.

Medium | ρ_{1}(kg/m³) |
ρ_{2}(kg/m³) |
λ_{1} (GPa) |
λ_{2} (GPa) |
μ_{1} (GPa) |
μ_{2} (GPa) |
---|---|---|---|---|---|---|

IX | 3000 | 3100 | 42.00 | 75.00 | 35.00 | 65.00 |

X | 3000 | 3300 | 42.00 | 72.00 | 35.00 | 67.00 |

XI | 3000 | 3500 | 42.00 | 85.00 | 35.00 | 70.00 |

XII | 3000 | 3500 | 40.00 | 100.00 | 35.00 | 65.00 |

XIII | 3000 | 3600 | 40.00 | 115.00 | 35.00 | 67.00 |

XIV | 3000 | 3200 | 29.16 | 53.77 | 39.42 | 58.78 |

XV | 3800 | 4000 | 170.16 | 181.14 | 81.91 | 123.46 |

XVI | 3000 | 3300 | 30.42 | 70.67 | 33.87 | 67.12 |

**Table 13:** Material Properties of Media IX-XVI.

Medium | V_{0L}(m/s) |
V_{L1}(m/s) |
V_{L2}(m/s) |
δV_{L1}/V_{0L} |
δV_{L2}/V_{0L} |
V_{0T} (m/s) |
V_{T1} (m/s) |
V_{T2} (m/s) |
δV_{T1}/V_{0T} |
δV_{T2}/V_{0T} |
---|---|---|---|---|---|---|---|---|---|---|

IX | 7036.44 | 6110.10 | 8131.96 | -0.1317 | 0.1557 | 3957.52 | 3415.65 | 4579.05 | -0.1369 | 0.1571 |

X | 6933.59 | 6110.10 | 7900.90 | -0.1188 | 0.1395 | 3923.90 | 3415.65 | 4505.89 | -0.1295 | 0.1483 |

XI | 6971.26 | 6110.10 | 8017.84 | -0.1235 | 0.1501 | 3906.41 | 3415.65 | 4472.14 | -0.1256 | 0.1448 |

XII | 6960.73 | 6055.30 | 8106.43 | -0.1301 | 0.1646 | 3834.46 | 3415.65 | 4309.46 | -0.1092 | 0.1239 |

XIII | 7028.99 | 6055.30 | 8316.65 | -0.1385 | 0.1832 | 3834.91 | 3415.65 | 4314.06 | -0.1093 | 0.1249 |

XIV | 6619.90 | 6000.00 | 7317.07 | -0.0936 | 0.1053 | 3940.97 | 3625.00 | 4285.71 | -0.0802 | 0.0875 |

XV | 9836.66 | 9375.00 | 10344.83 | -0.0469 | 0.0517 | 5080.99 | 4642.86 | 5555.56 | -0.0862 | 0.0934 |

XVI | 6696.80 | 5720.00 | 7880.00 | -0.1459 | 0.1767 | 3892.83 | 3360.00 | 4510.00 | -0.1369 | 0.1585 |

**Table 14:** Longitudinal and transverse velocities of Media IX-XVI.

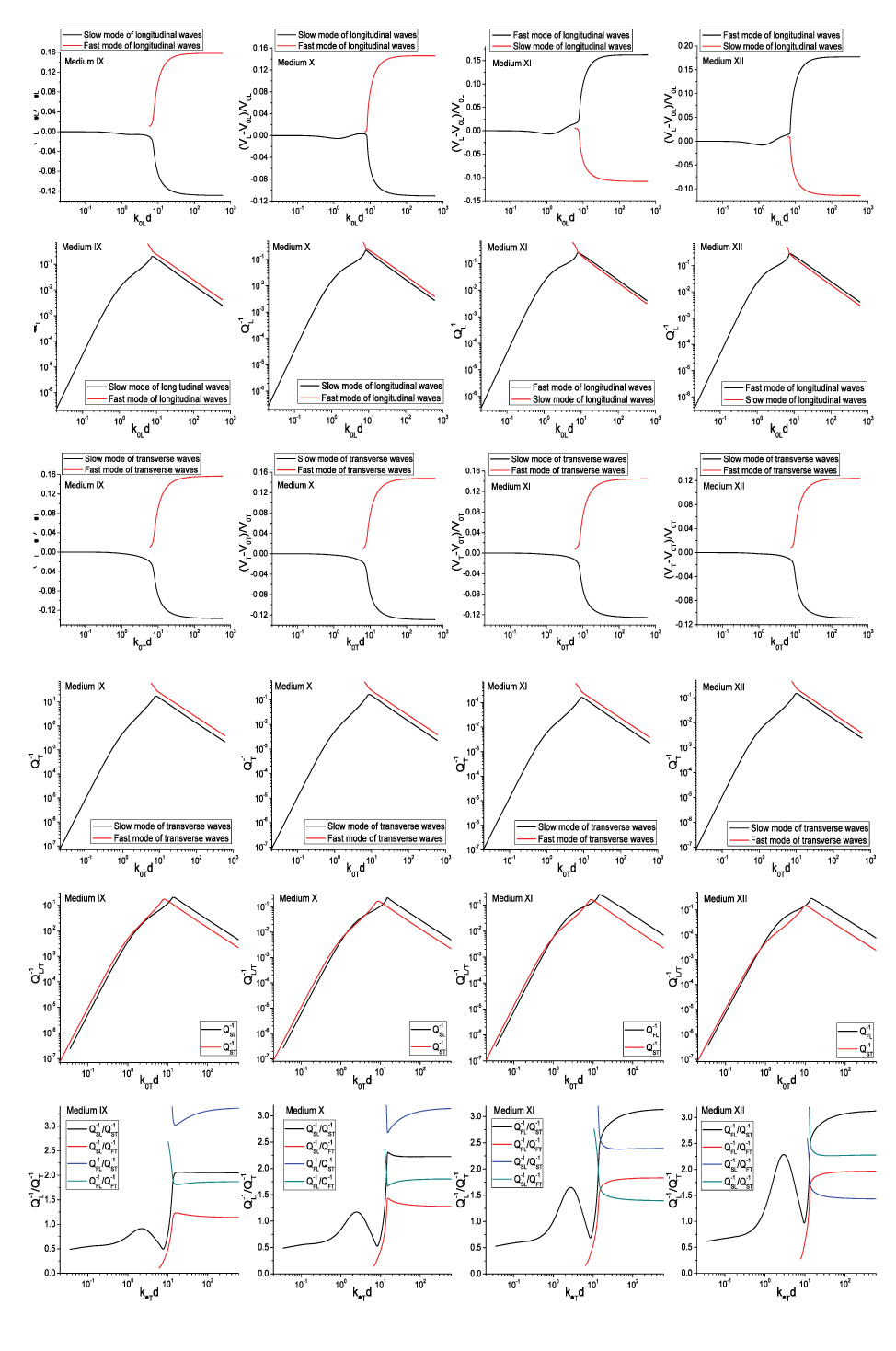

**Figure 23:** Dispersion, Q-factors and Q-factor ratios of longitudinal and transverse waves in Media IX-XII.

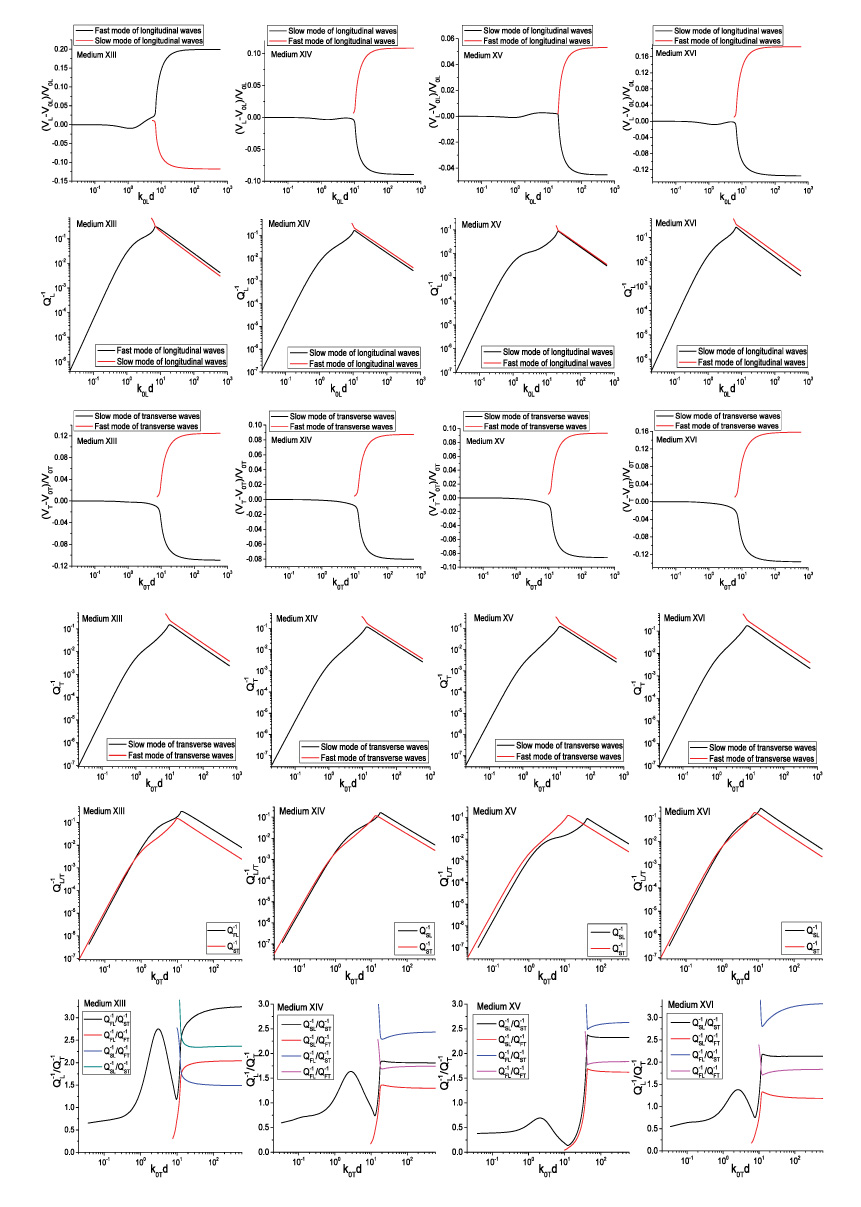

**Figure 24:** Dispersion, Q-factors and Q-factor ratios of longitudinal and transverse waves in Media XIII-XVI.

Medium | Q^{-1}_{SL}/ Q^{-1}_{ST} |
Q^{-1}_{FL}/ Q^{-1}_{ST} |
Q^{-1}_{SL}/ Q^{-1}_{FT} |
Q^{-1}_{FL}/ Q^{-1}_{FT} |
V_{L1}/ V_{T1} |
V_{L2}/ V_{T1} |
V_{L1}/ V_{T2} |
V_{L2}/ V_{T2} |
---|---|---|---|---|---|---|---|---|

IX | 2.050 | 3.370 | 1.140 | 1.870 | 1.789 | 2.381 | 1.334 | 1.776 |

X | 2.227 | 3.139 | 1.278 | 1.802 | 1.789 | 2.313 | 1.356 | 1.753 |

XI | 2.393 | 3.136 | 1.398 | 1.832 | 1.789 | 2.347 | 1.366 | 1.793 |

XII | 2.275 | 3.126 | 1.433 | 1.966 | 1.773 | 2.373 | 1.405 | 1.881 |

XIII | 2.366 | 3.244 | 1.488 | 2.040 | 1.773 | 2.435 | 1.404 | 1.928 |

XIV | 1.810 | 2.433 | 1.296 | 1.742 | 1.655 | 2.019 | 1.400 | 1.707 |

XV | 2.322 | 2.630 | 1.622 | 1.837 | 2.019 | 2.228 | 1.688 | 1.862 |

XVI | 2.134 | 3.315 | 1.182 | 1.837 | 1.702 | 2.345 | 1.268 | 1.747 |

**Table 15:** The geometric limits of Q-factor ratios and velocity ratios of component materials of Media IX-XVI.

# Explanation of the observed Q-factors and Q-factor ratios:

Attenuation of the direct arrivals of the longitudinal and transverse waves has been the central topic of numerous seismological studies ever since the beginning of modern seismology, interested readers please see the manograph by Sato and collaborators [3] and references therein. The longitudinal and transverse Q-factors and their ratios of a series of local and regional earthquakes occurred worldwide are summarized in monograph [3]. For the convenience of subsequent discussion, the results are presented in figure 25.

It needs to mention that the notations Q_{P}^{−1} and Q_{S}^{−1} denote
the Q-factors of primary and secondary waves, corresponding
to the Q-factors of the longitudinal and transverse waves
in this work. Before comparing the measured Q-factors
with the theoretical predictions, we first give a rough
estimation of the dimensionless frequency to which the measured curves correspond. As pointed out before, the
average velocities of the longitudinal and transverse waves
are about 7 km/s and 4 km/s, and the majority of the
measured curves lie between 1 to 100 Hz. The correlation
length, i.e., the characteristic dimension of the rocks in the
lithosphere lies between several hundred meters to tens of
kilometers [5,8], here we use d =10 km for the estimation.
Calculation using the above data gives k_{0L}d = 9-900 and
k_{0T}d = 16-1600, thus we can see most seismic signals lie in
the intermediate to high frequency ranges. In this regime,
both the longitudinal and the transverse Q-factors increase
from about 0.001, reaching their peaks lying between 0.05
to 0.2, and then decrease monotonically to about 0.001.
In the high frequency regime, the Q-factor curves follows
an inverse power law, i.e., decreasing quasi-linearly in the
double-logarithmic coordinate system. Comparing the
theoretical predictions with the measured curves, we see
all these theoretical predictions show excellent agreement
with that measured in local and regional events. Both the
longitudinal and transverse Q-factors decrease following
an inverse power law in the frequency band 1< f < 100 Hz.
Meanwhile, the magnitude of the Q-factors lies in the range
of 0.1 to 0.001, which is also consistent with the theoretical
calculations. In addition, it is observed that the Curve 16
exhibits a sharp peak at around 1 Hz. This curve partially
confirms Aki’s conjecture that there should exist a peak in
the Q-factor curves in the intermediate frequency range
[3]. Extending all the measured curves to the intermediate
frequencies 0.05 < f < 1Hz, we can infer that the peaks of the
longitudinal and transverse Q-factor curves lie between 0.1
and 0.2. Our theoretical predictions, as shown in figures 17-
24, along with this reasonable inference fully support Aki’s
conjecture. At this point, we are ready to give an explanation
on why the attenuation peaks are rarely captured in practical
measurements. From the theoretical calculation, we can
see the peak occurs at a critical frequency at which the
dispersion curve branches. Correspondingly, the waves with
a central frequency near the critical frequency have both
very large dispersion and attenuation. As a consequence,
the wavepackets in this range quickly broaden and decay as
the epicentral distance increases, and finally dismissed in
the ambient noises. Therefore, it is an extremely challenging
task for seismic recording systems to identify weak signals
near the critical frequency. We also note that the curves
numbered 1, 2.1, 2.2 and 2.3 lie in the low to intermediate
frequency regimes. Due to lack of accurate data, they are
marked with thick lines. It was pointed out that attenuation
at low frequency is extremely difficult to be measured
accurately [3].

The measured Q-factor ratios are shown in figure 25(c). At first glance, we may find it is difficult to extract any law by which these curves abide. After careful inspection, we find the curves can be classified into six categories according to their variation tendencies: Low frequency stage: Curves 1, 3; Ascent stage: Curves 2.1, 2.2, 16; Descent stage: Curves 5, 15, 18; Turning stage: Curves 5, 14, Plateau stage: Curves 4, 6, 8, 10, 13, 17.1, 17.2, 19. Surprisingly, we can establish a rough correspondence between these curves and the theoretical curves: Curves 1 and 3 correspond to the low frequency range in which the ratio is nearly constant and lies near 0.5; Curves 2.1, 2.2 and 16 correspond to the ascendant stage in which the ratio raises from 0.5 to 1.5, 2 or 3, depending on the specific material property fluctuation; Curves 5, 18 correspond to the descendant stage; Curves 5, 14 correspond to the turning stage in which the ratio decreases to its minimum and then increases; Curves 4, 6, 8, 10, 13, 17.1, 17.2 and 19 correspond to the plateau stage in which the ratio lies between 1 and 3. These curves correspond to the high frequency range, also called the saturated scattering region, in which the ratios are stabilized at four different constants. The shaded region 9 also cover the range of high-frequency limits of the four Q-factor ratios. It needs to mention the Curves 17.1 and 17.2 are for the ratios of longitudinal waves to the SV and SH components of transverse waves, respectively, which are less than unity. However, if recalculated for the complete transverse waves, it is highly possible that it will give a value greater than unity. This is because at high frequencies, the attenuation of longitudinal waves is larger than that of transverse waves. The existence of Q-factor ratios with magnitudes less than 1.5 or near unity in the high frequency range strongly suggests that the lithosphere is a heterogeneous medium with strong property fluctuation, as evident in table 14. Through the comparison we see the new model can give an accurate quantitative prediction of the longitudinal and transverse attenuations and their ratios. The rich variety of the tendency of the Q-factor ratios is also perfectly captured in the new model. At this point we need to mention the scattering theory proposed in [10] based on the Born approximation predicts that the Q-factor curve increases monotonically with frequency, which is in contradiction with the measured seismic attenuation. We also note the curves in the high-frequency regime, for which the magnitude of the ratio is a constant near unity, along with the curves in the descendent stage and the turning stage, cannot be explained using the travel-time corrected Born approximation [3].

At last, we try to give a rough estimate of the correlation
lengths of the portion of the lithosphere that corresponds
to each curve of the Q-factor ratios in figure 25(c). Although
the information for the velocities is missing, existing seismic
data recorded in numerous seismic events reveal that
the reference velocities of the transverse waves lie in the
range from 3800 to 4000 m/s. For the purpose of a primary
evaluation, we use V_{0T} = 3900 m/s. From Figures 23-24, we
can observe that the peak of the Q-factor ratios for most
medium models occurs at K0T = 2-3, here we use K_{0TMAX} = 2.5.
The minima of the Q-factor ratios occur in the range 8 < K_{0T}< 15, here we choose K_{0TMIN} = 10. The high-frequency regime
begins roughly from K_{0T} = 20, where the Q-factor ratios
either have a very small slope or keep constant. Based on
these preliminary knowledge, we can find that the curves 2.1
and 2.2 lie in the range 0 < K_{0T} < 2.5, and at f ≈ 5 Hz they reach
the maximum value. Substitution of the above data into the
following relation: 2πf (= 5 Hz) d/V_{0T} = 2.5, we obtain d ≈ 310
m. The curves 5 and 18 lie in the adimensional frequency
range 2 < K_{0T} < 20, while the corresponding frequency range is
1 < f < 30 Hz. Solving the equations: 2πf (=1 Hz) d/V_{0T} = 1 and
2πf (=30 Hz) d/V_{0T} = 20, we get d = 414~621 m. The curves 4, 8, 10, 13, 17.1, 17.2, and 19 all lie in the high-frequency
range, i.e., K_{0T} ≥ 20, while the corresponding frequency range
is f > 1~2 Hz. Substituting these data into the relation: 2πf
(=1 or 2 Hz) d/V_{0T} = 20, we get d ≥ 12.42 km or d ≥ 6.21
km, respectively. We can see the estimates of the correlation
lengths (characteristic dimension of the inhomogeneities)
given by the new multiple scattering theory exactly lie
in the range determined by other approaches, such as the
transverse coherence function (TCF) and angular coherence
function (ACF) analysis [8].

**Figure 25:** Q-factors of longitudinal (a) and transverse (b) waves, and their ratios (c) measured in local, regional and global earthquakes [3].

**Figure 26:** Mohorovičić travel-time curve (a) (Courtesy of the Department of Geophysics, Faculty of Science, Zagreb) [166] and (b) best fitting curves.

**Does the Mohorovičić discontinuity really exist?:** On October 8, 1909, an earthquake with the macroseismic
intensity VIII ˚MCS struck Pokupsko, 40 km southeast
of Zagreb, Croatia [166]. Mohorovičić collected the
seismograms recorded by numerous European seismological
stations and plotted the travel time curves, as shown in
figure 26(a). He immediately recognized that there are two
sets of longitudinal and transverse waves. To clearly indicate
these phases, we replot the travel time curves in figure
26(b). From the travel-time curve, we can see four different
arrivals, denoted by Pn, Pg, Sn and Sg, respectively. The
velocities of the four phases can be roughly estimated from
the curves, V_{Pn} = 8230 m/s, V_{Pg} = 5680 m/s, V_{Sn} = 4640 m/s,
V_{Sg} = 3310 m/s. It is also noted that the Pn and Sn phases
begin to appear from the epicentral distance d = 300 km and
propagate a long distance even longer than d = 2600 km, the
Pg and Sg phases exist in the range from the epicenter to an
epicentral distance d = 1500 km.

Since then, more and more seismograms recorded in
the local, regional and global earthquakes show that two
sets of longitudinal and transverse waves can be observed.
Figure 27 shows the travel-time curves of the Pn, Pg, Sn
and Sg phases recorded by observation stations across
the Eurasian continent, including the eastern, central and
northern Russia, and China [167-168]. The velocities of
the four phases can be evaluated from the curves as: V_{Pn} =
8330 m/s, V_{Pg} = 6250 m/s, V_{Sn} = 4630 m/s, V_{Sg} = 3520 m/s.

Different from the travel-time curves shown in figure 26, all phases propagate a long distance greater than 1500 km. The Sg phase propagates an exceedingly large distance, even longer than 2500 km. It is worth noting that both the Pn and Pg phases are difficult to discriminate in the range from 0 to 500 km, and start to separate from each other at distances greater than 500 km. Similar phenomena can be observed for the Sn and Sg phases.

Figure 28(a) shows the travel-time curves of 15316
earthquakes occurred in southwest China, which is mainly
a tectonically active highland region, including southeast
Tibet, Sichuan and Yunnan provinces [169]. It provides a
textbook example for the four seismic phases in which the
four seismic phases can be explicitly identified. At distances
less than 350 km, there is only one longitudinal and one
transverse wavefront can be observed. Starting from the
epicentral distance d = 350 km, the wavefronts of P waves
and S-waves begin to split. The velocities of the four phases
can be estimated from the curves as: V_{Pn} = 7320 m/s, V_{Pg =
6000 m/s, VSn = 4300 m/s, VSg = 3600 m/s. All the four phases
extended to more than 600 km. Figure 28(b) presents the
travel-time curves collected from 7743 shallow and deep
earthquakes and 333 teleseismic events recorded by over
1000 seismic stations on the Japan Islands [170]. The
velocities of the P- and S-waves are evaluated from the
curves as: VPn = 10300 m/s, VPg = 9400 m/s, VSn = 5500 m/s,
VSg = 4600 m/s, which are much higher than that of other
portions in the world. We also note all the four phases travel
a long distance up to 2500 km.}

Figure 29 shows the travel-time curves and their linear
regression obtained from 92 Sakhalin earthquakes in
eastern Russia [171]. The most prominent feature is that in
addition to the conventional four phases Pn, Pg, Sn, and Sg,
two novel phases denoted by P^{*} and S^{*}
are clearly observed.
The velocities of the six phases are extracted from the linear
regression as: V_{Pn} = 7880 m/s, V_{P*} = 6391 m/s, V_{Pg} = 5720
m/s, V_{Sn} = 4510 m/s, V_{S*} = 3950 m/s, V_{Sg} = 3360 m/s. It is
seen that the velocities of the P^{*} (S^{*}) phase lies between the
Pn and Pg (Sn and Sg) phases.

Mohorovičić denied the possibility that the two sets of longitudinal and transverse waves are emanated from the same source and traverse the same path. Instead, he proposed an explanation based on a layered model of the lithosphere.

**Figure 27:** Travel time-distance plots of the Pg, Pn, Sg, Sn phases in Eurasia
[167-168]. For Pg, 1453318 traveltimes from 3709 stations and 407131
events are recorded, and for Sg, 1049125 traveltimes from 3084 stations and
266751 events are recorded.

**Figure 28:** Travel time-distance plot of the Pn, Pg, Sn and Sg phases in (a) Southwest China [169] (139462 Pn and Pg
traveltimes and 102184 Sn and Sg traveltimes from 15316 events) and (b) Japan [170] (207000 arrival times from 7743
shallow and deep earthquakes and 34148 arrival times from 333 teleseismic events recordedby over 1000 seismic stations).

**Figure 29:** Travel-time curves of the Pn, P^{*}, Pg, Sn, S^{*} and Sg phases
in eastern Russia [171]. The traveltimes are recorded from 92 Sakhalin earthquakes.

**Figure 30:** Schematics for Mohorovičić’s explanation (a) and new explanation based on the SFMS theory (b) for the observed two sets of longitudinal and transverse waves.

**Mohorovičić’s explanation:** There exists an interface
about 50 km beneath the Earth’s surface, which separates
two layers of elastic materials (rocks) with dramatically
different properties. The upper layer is relatively soft
and has a longitudinal velocity about 6.0 km/s, the lower
material is relatively hard and has a longitudinal velocity
about 8.0 km/s. He further assumed that the wave velocity
increases with depth following an exponential law, of which
he thought as a natural result of the gravitation. When a
shallow earthquake occurs, the seismic waves propagate
to the observation station along two paths. One propagates
upward and arrives at the station directly. The other
propagates downward, when impinging at the discontinuity,
it gets refracted and portion of the wave propagates in the
hard medium. As the velocity of the material increases with
depth, the wave gradually reflected back and gets refracted
again at the discontinuity. After that, the wave propagates
in the upper medium again and arrives at the observation
station. A schematic diagram for the paths of the seismic
rays are given in figure 30 (a).

As similar phenomena are observed in the traveltime curves extracted from numerous local, regional
and teleseismic earthquakes, as shown in figures 27-29,
seismologists infer that there must be a global discontinuity
existing in the lithosphere. In honor of its discoverer, this
discontinuity is named the Mohorovičić discontinuity. Since
then, the two-layered model of the lithosphere is accepted
worldwide. The top layer with relatively low velocity is called
the crust, and the P- and S-waves propagating in this layer
are denoted by Pg and Sg, respectively, while the bottom
layer with relatively high velocity is called the mantle, and
the waves propagating in this layer are denoted by Pn and
Sn [164]. The Mohorovičić discontinuity is identified as
the interface between the crust and the mantle. In 1925,
Victor Conrad first identified a new set of longitudinal and
transverse waves, denoted by P^{*} and S^{*}, when he analyzed
the eastern Alps earthquake in 1923 [130,172,173]. Since the
new phases propagate at an intermediate velocity between
that of the upper crust and mantle, Conrad postulated that
the waves propagate in the lower crust and there must be
an additional interface which separates the upper and lower
crust. The new phases are also observed worldwide as shown
in figure 29. Consequently, the interface between the upper
and lower crust is named as the Conrad discontinuity. Later
on, additional phases are identified in local and regional
earthquakes and correspondingly, new discontinuities
such as the Riel Discontinuity and the Fortsch discontinuity
are identified. Currently, the multi-layered model of the
lithosphere is widely used in the seismological community
for seismic tomography and inversion for the velocity
structure [164,165].

Despite its success in explaining the coexistence of two or more sets of body waves, disputes about the multilayered model along with the existence of the Mohorovičić discontinuity and the Conrad discontinuity never end in the scientific community [130,132,173]. Modern seismology improves the estimation of the velocity distribution and predicts the velocities of primary seismic waves (P-waves) immediately above the Moho are about 6.7–7.2 km/s, and below the Moho they are about 7.6–8.6 km/s [164]. One naturally raises the question: what is the physical mechanism that causes such an abrupt change in velocity, phase transition or change in chemical composition? It is pointed out that phase transition induced by temperature increase results in a transition zone with gradually varying material properties instead of a sharp interface [130]. Thus, geophysicists suggest that the Moho marks a change in chemical composition. From the knowledge of petrology, we know the longitudinal velocity immediately above the Moho is consistent with that of basalt, while the velocity immediately below the Moho is similar to those of peridotite or dunite. Nevertheless, any believable sorting mechanism gives an irregular surface instead of an even interface [130,132]. Consequently, both the mechanisms encounter difficulties in explaining such an even and sharp discontinuity. Moreover, as discussed above, the amplitudes of all these waves have obvious attenuation besides the geometric spreading attenuation. The theories based on the geometric ray and the layered model can hardly give a reasonable explanation for the apparent attenuation. The seismic waves penetrating into the mantle have a rather complicated path, and the amplitude attenuation in each layer, of which the mechanical properties vary exponentially with depth, is extremely difficult to evaluate. Finally, there are a series of coda waves which are also decaying and may last for tens of minutes. The multi-layered model encounters significant difficulties in explaining these stochastic coda waves. Through the above discussion, we see a number of phenomena are extremely difficult to explain in the framework of the multi-layered model. Contrarily, all these questions can be answered consistently and quantitatively in the framework of the new multiple scattering theory.

**New explanation:** Modern petrological study reveals that the
lithosphere is composed of a variety types of rocks, such as
granite, basalt, limestone, sandstone, shale, and serpentinite.
Each type of rocks has its unique mass density and elastic
moduli. Consequently, the lithosphere is a heterogeneous
medium with certain degree of velocity fluctuation. As a
result of billion years of geological activities, including
collisions among tectonic plates, subduction of sea slabs,
volcanic activities, etc., there are active mass exchanges
in the lithosphere, both horizontally and vertically,
which lead to a statistically uniform distribution of the
inhomogeneities. The fluctuation in materials properties
results in a fast longitudinal velocity lying between 7.6-8.3
km/s and a slow longitudinal velocity lying between 5.7-6.3
km/s. The characteristic size of the inhomogeneities ranges
from several hundred meters to tens of kilometers. When
an earthquake occurs, a seismic signal with a duration from
several seconds to a few minutes is launched. Depending on
the source mechanism, the seismic waves may be composed
of waves with different frequencies, ranging from low
frequency, intermediate frequency to high frequency. The
wave packet gets multiply scattered during its travel from
the source to the observation stations. As shown in the
numerical examples given in figures 23-24, both the wave
components at low or intermediate frequencies and at high
frequencies have small dispersion. As a result, the wave packets in these frequency ranges can propagate for a long
distance. Contrarily, wave packets with a frequency near the
critical frequency at which the dispersion curves branches
have both large dispersion and attenuation. Consequently,
these wave packets can only propagate a short distance and
then dismissed in the background noises. At observation
stations near the epicenter, waves at all frequencies are
mixed and the steady multiple-scattered waves have not
been established. Consequently, there is only one wave
packet can be observed in the first two hundred kilometers.
After propagating for a certain distance (about two hundred
kilometers), stable multiple scattered waves are established.
If the center frequency of the seismic wave lies in the highfrequency regime, or even in the geometric regime, there
exist two sets of longitudinal and transverse waves, of which
the fast longitudinal (Pn) and transverse wave (Sn) speeds
approach those of the hard material and the slow longitudinal
(Pg) and transverse (Sg) wave speeds approach those of the
soft material. Meanwhile, the dispersions of all the waves are
very small, so all the wave packages can propagate for a long
distance. A schematic diagram of the seismic rays is shown
in figure 30(b). If the wave packet emanated from the source
contains both low- or intermediate-frequency components
and high-frequency components, the original wave packet
will split into three branches, as shown in figure 29. The
phase velocities of the P* and S* phases lie near that of the
homogeneous reference medium. In real measurements, the
P* and S* phases may be contaminated by the P-coda waves
or S-coda waves, so the recorded signal is a superposition
of low- or intermedia-frequency phase signal and the highfrequency noises. By comparing the velocities of Media IXXVI and that evaluated from figures 26-29, we can establish a
rough correspondence between the virtual material models
and the lithospheric regions: Media IX-XIII correspond to
figures 26-27, Medium XIV corresponds to figure 28(a),
Medium XV corresponds to figure 28(b), and Medium XVI
corresponds to figure 29. With these correspondences in
mind, we can try to give a consistent explanation for both the
dispersion and attenuation characteristics of the measured
data. Figure 25 shows that most seismic signals decrease with
frequency following an inverse power law, which indicates
that the signals lie in the high-frequency regime. Meanwhile,
the majority of the observed travel-time curves exhibit four
branches corresponding to the Pn, Pg, Sn and Sg phases,
respectively, which also indicates that most seismic signals
lie in the high-frequency regime. By adjusting the properties
of the component phases, the Q-factor ratios show a variety
of different patterns which are sufficient to cover all the
values and variations of measured Q-factor ratios, as shown
in figure 25(c). The travel-time curves in figure 28(b) exhibit
high-velocity, weak velocity fluctuations and low attenuation,
which are related to the existence of the subducting Pacific
and Philippine sea slabs. Correspondingly, these distinctive
features are also fully captured in the numerical example for
Medium XV. From figure 24, we can see Medium XV has high
velocities, small velocity fluctuations and low attenuation
(high-Q). Medium XVI gives a material model corresponding
to figure 29, from which the P* and S* phases can be explicitly
identified. Comparing the velocities in figure 29 and that
shown in figure 24, we can find the velocities of all the phases calculated from Medium XV show excellent agreement with
that measured in real seismic events.

In the new explanation, there needs not be any even interface that separates two or more layers with dramatically different material properties. Instead, it only requires that there exists a certain degree of property fluctuation and the fluctuation is statistically uniform, which are more likely to be realized in the heterogeneous Earth.

Through the above discussion we see the new model is capable of providing an accurate and consistent explanation to nearly all the observed seismic data. At this point we are ready to answer several long-standing problems raised in the seismology community, and draw a series of new conclusions:

Through the above discussion we see the new model is capable of providing an accurate and consistent explanation to nearly all the observed seismic data. At this point we are ready to answer several long-standing problems raised in the seismology community, and draw a series of new conclusions:

2) Multiple scattering theory is a necessary tool for the explanation of the attenuation of the major phases Pn, P*, Pg, Sn, S* and Sg, single scattering theory is insufficient;

3) Elastic waves are tensor waves in their nature, and the causality of the multiple scattered waves is secured by the proper choice of the imaginary part of the homogeneous Green’s functions. The Kramers-Kronig relation, which was derived for scalar waves, cannot be applied to the scattered elastic waves [65,66,133,134]. This is because the K-K relation always requires that there exists a single propagation mode in the whole frequency range. However, as shown in the numerical examples, most heterogeneous materials exhibit two propagation modes in the intermediate- to high-frequency range. Most importantly, for materials with extremely strong property-fluctuation, like bone and porous metals, there even does not exist any coherent wave at high frequencies;

4) All the direct arrivals and the coda waves form an
integrate unity. Multiple scattering does not only cause
dispersion and attenuation of the direct arrivals, but also
induces split of the coherent wavefront and generates
two or three sets of longitudinal and transverse modes.
At frequencies far from the critical frequency (branch
point of the dispersion curves), the dispersions of both
longitudinal and transverse waves are extremely weak.
Consequently, the wave packets can be maintained for
a long distance. This unique propagation characteristic
gives a new explanation to the Pn, P^{*}, Pg, Sn, S^{*} and Sg (or
Lg) phases that observed worldwide [164]. Contrary to
the explanation based on multi-layered model, it does not
require the existence of any even and sharp discontinuity,
such as the Mohorovičić discontinuity or the Conrad
discontinuity;

5) Velocity dispersion and attenuation constitute a complete description of the propagation of the coherent multiplescattered waves, they are simultaneously determined by the new model;

6) The multiple scattering theory suggests us give up the classic seismology, which is based on the assumption that the lithosphere is a multi-layered medium, and develop new seismology and new ray theory (or other highfrequency asymptotic approaches) based on the random medium model. This also motivates a generic statistical approach to classify the lithosphere based on the velocities, velocity fluctuations, and the correlation length (characteristic size) of the subsurface heterogeneities;

7) The existence of inhomogeneities that large enough to break the stochastic homogeneous assumption may change the waveform significantly. Thus, the model provides a new imaging mechanism for inversion of the large-scale structures in the lithosphere or beneath the lithosphere [146,174,180].

Finally, we need to stress that the theoretical predictions of the dispersion and attenuation are for the coherent waves. In an idealized case, the coherent waves are obtained by summing up the recorded waves from a number of observation stations that located concentrically about the seismic source. The quantities measured at a single observation station may be distorted by the nearreceiver inhomogeneities, as pointed out by Wu [10]. The development of large scale seismic arrays, such as LASA, NORSAR, has significantly improved our ability to obtain such coherent waves by collecting large amounts of single-station signals. These seismic arrays along with modern signal processing techniques provide us a great opportunity to extract the complete set of coherent wave information, including the dispersion and attenuation of each phase. Based on the high-quality data, the new model can perform reliable inversion for the material property fluctuation and characteristic length of inhomogeneities with the aid of advanced optimization algorithms like the least-square method [175]. Furthermore, it is well known that mineral depositions can also influence the material property fluctuation, thus the inversion results can be used for exploring natural resources, such as hydrocarbone reservoirs and coal and iron mines.

# Applications in the ultrasonic nondestructive evaluation (NDE)

Porous metals have broad applications in aerospace industry [181-184] and biomedical engineering [185-187] due to its light weight and high strength. An additional prominent feature is that its mechanical properties are adjustable and can perfectly match those of biomedical materials like bone, so porous metals like porous Titanium are also used as bone substitution materials [186]. Studying the dispersion behavior of ultrasound in these materials is of vital importance for the nondestructive evaluation and characterization of porous metals [188-192]. Twophase metals and particle reinforced composites are other categories of heterogeneous materials widely used in industry. These materials have unique physical and chemical properties, such as chemical stability, high strength, tunable mechanical properties [193,194]. The microstructure is the key factor that determines the material properties like fracture toughness, hardness, impact strength, yield strength, and tensile strength. Consequently, there is considerable interest in developing ultrasonic techniques to nondestructively characterize microstructures and finally determine these mechanical properties. It is well known that the ultrasonic attenuation and dispersion are very sensitive to the characteristic parameters of microstructures, like elastic moduli of the component phases, average sizes of the grains, so they provide important parameters for microstructural characterization. In general, the interpretation of frequency dependent velocity and attenuation data requires the use of multiple scattering theory. However, previous research on ultrasonic NDE has been mainly focused on characterization of metal polycrystals such as Titanium alloy, Nicole alloy or iron, which are generally regarded as weak scattering materials [42-50]. Very little effort is devoted to characterization of materials with strong property contrast, such as porous metals and two-phase alloys [188-192]. The model developed in this work exactly meet these requirements. As applications, we calculate the velocity dispersion and attenuation of porous aluminum with various porosities and Cu-Al alloys with different phase volume ratios.

**Nondestructive evaluation of porous metals:** Porous
aluminum is an extreme example of two-phase materials.
The material properties used in the calculation are shown
in table 16,

The properties of the reference media for porous aluminum with porosities (pore volume fractions) varying from 5% to 30% are given in table 17.

The dispersion and attenuation of longitudinal waves and transverse waves in porous aluminum are shown in figures 31 and 32, respectively.

From the results, we can find the following propagation characteristics of coherent waves in porous metals:

1) The longitudinal velocity first undergoes steep negative dispersion, after reaching the minimum value, it becomes positively dispersive and quickly goes beyond the longitudinal velocity of pure aluminum, which indicates the disappearance of the coherent waves. Only one longitudinal mode is found in the whole frequency range. This phenomenon tells us that the branch behavior of longitudinal coherent waves is strictly related to the elastic property of the component materials, or in other words, two longitudinal modes can only exist when both of the component phases are elastic materials. The dimensionless attenuation-frequency relation follows a power law at frequencies lower than 1. At dimensionless frequencies higher than 1, the attenuation approaches unity.

2) The coherent transverse waves first undergo negative dispersion with a magnitude smaller than that of the longitudinal waves, then become positively dispersive and approach the transverse wave velocity of pure aluminum. A second mode appears in the intermediate frequency range. The attenuation of the second mode is much larger than the first one at its initial appearance and then decreases quickly. At moderately high frequencies, the velocity of the fast mode quickly goes beyond the transverse velocity of pure aluminum, which indicates the disappearance of coherent waves. It is also noted that porous Al with low porosity support coherent transverse waves in a relatively wider frequency band.

**Figure 31:** Effects of porosity on dispersion and attenuation of longitudinal waves in porous aluminum.

**Figure 32:** Effects of porosity on dispersion and attenuation of transverse waves in porous aluminum.

**Nondestructive evaluation of two-phase alloys:** Nondestructive characterization of microstructures in
multiphase alloys by means of ultrasonic scattering has
received extensive studies. The mechanical properties of
frequently used metallic phases, including Fe, Al, Cu, Ti,
or Nb all exhibit strong property fluctuation. Our model is
naturally suitable for these types of materials. As an example,
we consider a two-phase alloy made of Al and Cu [194]. The
material properties of Al and Cu are given in table 18. We
consider Cu-Al alloys with different volume ratios. Table 19
lists the material properties of the reference media.

Figure 33 shows the dispersion and attenuation of longitudinal waves. From the numerical results, we can observe the following propagation characteristics: Starting from the quasi-static limit, the longitudinal waves first undergo negative dispersion. After reaching its minimum, the coherent waves become positively dispersive, then it approaches the longitudinal speed of the pure Al. In the intermediate frequency range, a second propagation mode starts to appear, its attenuation is much larger than the first mode and then decreases dramatically and approaches unity. At high frequencies, velocities of the two modes quickly approach the upper and lower bounds. Different from weak scattering media, the two bounds are different from the velocities of the two component phases. Once again, the coherent wave disappears when the velocity of the fast mode exceeds the upper bound of the two phases. One noteworthy phenomenon is that alloys in which Cu occupies a larger volume fraction support coherent wave propagation in a wider frequency range.

Figures 34 shows the dispersion and attenuation of
transverse waves. From the numerical results, we can
observe the following propagation characteristics: Starting
from the quasi-static limit, the coherent transverse waves
undergo negative dispersion monotonically, at intermediate
frequency k_{0T}d=2-3, the wavelengths are comparable to
the characteristic dimension of the inclusions, a second
propagation mode with positive dispersion starts to appear.
As the frequency increases, velocities of the two propagation
modes quickly approach the upper and lower bounds.
Similarly, when the fast mode goes beyond the upper bound
of the component phases, it indicates vanish of the coherent
waves. Different from longitudinal waves, the transverse
waves at low frequencies have no positive dispersion regime.

From these numerical examples, we see that the new model can give an accurate and quantitative prediction of the dispersion and attenuation of heterogeneous medium regardless of whether the volume fraction of either phase is small. Both the effective static and dynamic modulus can be further derived from the dispersion and attenuation curves. The results have significant implications for microstructure characterization and theory-guided material design [207,208].

Material | ρ (kg/m³) | C_{11} (MPa) |
C_{12} (MPa) |
C_{66} (MPa) |
V_{L} (m/s) |
V_{T} (m/s) |
---|---|---|---|---|---|---|

Cu | 8490 | 134.45 | 60.45 | 37.00 | 3979.48 | 2087.60 |

Al | 2720 | 102.23 | 50.35 | 25.94 | 6130.62 | 3088.17 |

**Table 18:** Material Properties of Cu and Al.

Volume fraction | ρ (kg/m³) | λ (MPa) | μ (MPa) | V_{0L} (m/s) |
V_{0T} (m/s) |
δV_{LCu}/V_{0L} |
δV_{LAl}/V_{0L} |
δV_{TCu}/V_{0T} |
δV_{TAl}/V_{0T} |
---|---|---|---|---|---|---|---|---|---|

f_{Cu}=10% |
3297 | 51.24 | 26.88 | 5643.43 | 2855.33 | -0.29 | 0.09 | -0.27 | 0.08 |

f_{Cu}=30% |
4451 | 53.10 | 28.87 | 4990.23 | 2546.82 | -0.20 | 0.23 | -0.18 | 0.21 |

f_{Cu}=50% |
5605 | 55.06 | 31.01 | 4570.39 | 2352.10 | -0.13 | 0.34 | -0.11 | 0.31 |

f_{Cu}=70% |
6759 | 57.13 | 33.30 | 4278.46 | 2219.49 | -0.07 | 0.43 | -0.06 | 0.39 |

f_{Cu}=90% |
7913 | 59.32 | 35.73 | 4065.30 | 2124.92 | -0.02 | 0.51 | -0.02 | 0.45 |

**Table 19:** Material properties of the reference medium of Cu-Al alloys.

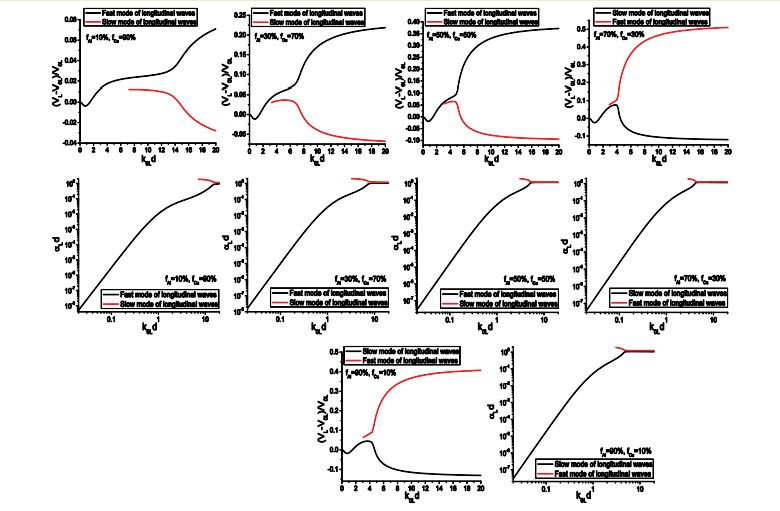

**Figure 33:** Dispersion and attenuation of longitudinal waves in Cu-Al alloys with different volume ratios.

**Figure 34:** Dispersion and attenuation of transverse waves in Cu-Al alloys with different volume ratios.

# Applications in bone quantitative characterization

Cortical bone is the major supporting structure of human body and most osteoporotic fractures are happened in it. Cortical bone is composed of compact bone and distributed pores saturated with marrow. The pore diameter is normally in the range of 20-300 micrometer and the volume fraction lies between 5% and 15% [70]. However, as a consequence of aging and continuous loss of minerals, the porosity of the middle-aged and elderly people may increase to 30% [78]. Early diagnosis and treatment of osteoporosis are essential for preventing bone fracture. Compared to microXRT or MRI, ultrasound provides an economic and noninvasive approach for the diagnosis of osteoporosis and monitoring the bone status. Different from MRI and XRT, which can only provide information about the porosity and average pore diameter, ultrasonic signals also carry rich information of the mechanical properties of bone, including the density and elastic stiffness. Therefore, quantitative ultrasound (QUS) provides a promising technique for predicting the bone mechanical strength. For this reason, bone quantitative ultrasound has become an active research field [70]. Multiple scattering theory of ultrasonic waves plays a central role in characterizing microarchitecture in bone. However, modeling the multiple scattering in cortical bones progresses very slowly. One reason is that cortical bone is an extremely complicated heterogeneous material with hierarchical microstructures covering a wide length scale. Another reason is that the wave-scatter interactions are very strong since wavelengths of ultrasound excited by most biomedical transducers are comparable to the characteristic dimension of microarchitectures in cortical bone. Reported experimental and numerical results are also full of controversy. The majority of the experimental research report that wave velocity is negatively dispersive [89], while some other researchers report that velocity have positive dispersion [73]. The interesting and diverse phenomena have attracted extensive attention from both academy and clinical community [70]. Due to the lack of a thorough understanding of the rich phenomena, quantitative ultrasound techniques for cortical bone characterization has been hampered for many years. It is generally realized the single scattering model and Biot’s model are insufficient for characterization of bone samples. For instance, the single scattering model can predict dispersion and attenuation when the number density of pores is low, normally less than 5%, and the error increases as the porosity becomes larger. The Biot model cannot predict the anomalous negative dispersion and it involves several phenomenological parameters that difficult to be measured experimentally. In this section, we conduct comprehensive numerical calculation for cortical bones with different porosities and demonstrate the capability of the new model to quantitatively predict the scattering characteristics of cortical bones. In this work, real cortical bones are modeled as a poroelastic medium with spherical pores saturated by water. The dimensionless velocity variation and the attenuation are plotted versus the dimensionless frequency. The properties of the reference medium are listed in table 5.

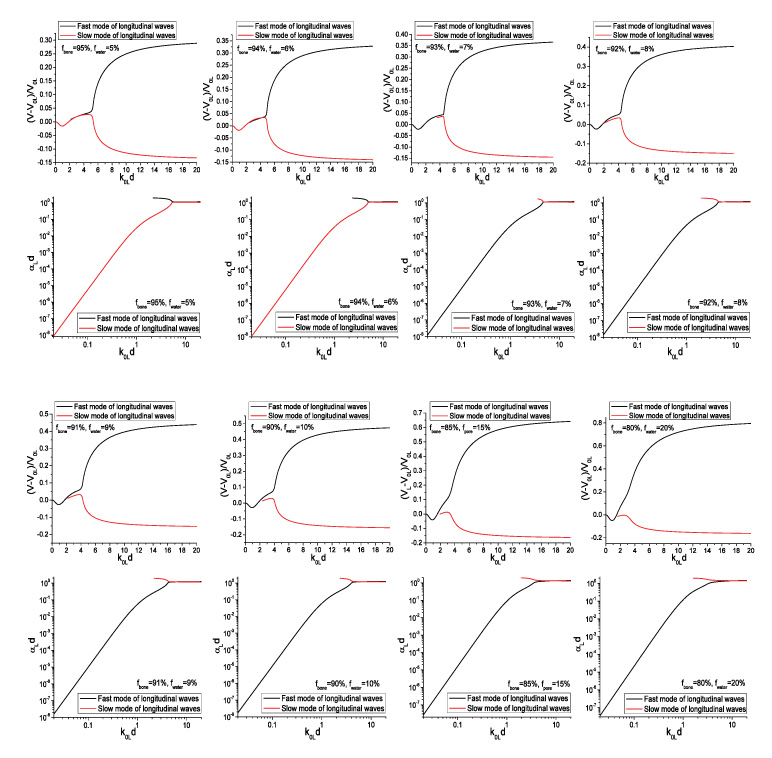

**Figure 35:** Velocity and attenuation of coherent longitudinal waves in cortical bone with different porosities.

**Dispersion and attenuation of longitudinal coherent waves:** The dispersion and attenuation of longitudinal
waves are shown in figure 35.

According to the characteristics of the dispersion curves, the frequency domain can be divided into four regions:

Region I (0 < k_{0L}d < 1): Starting from quasi-static limits, the
wave undergoes negative dispersion. The velocity assumes
its minimum at a dimensionless frequency near unity. The
attenuation increases with frequency following a power law.
There is only one propagation mode in this region;

Region II: After assuming its minimum, the velocity becomes positively dispersive. The attenuation increases with frequency in a general nonlinear manner. There is still only one propagation mode;

Region III: There are two propagation modes in this
region, both have positive dispersion. The width of this range
is strongly dependent on the volume fraction of the pores, the
smaller the f_{pore}, the wider the Region III. At the emergence
of the second mode, its velocity is nearly identical to that of the first mode, then the velocity difference becomes larger
as the frequency continues to increases. We can also observe
that the difference increases with porosity. This result tells
us that the two propagation modes are more easily observed
in bones with high-volume fractions. The attenuation of the
second mode is very large and then decreases rapidly. When
the pore volume fraction is smaller than 6%, the fast mode
has larger attenuation, when f_{pore} is greater than 7%, the
slow mode has larger attenuation;

Region IV: The velocity of the fast mode quickly approaches the upper limit, and then goes beyond that of pure bone, which indicates that the coherent wave disappears. The slow mode becomes negatively dispersive and quickly approaches its lower limit.

The above results are presented in the dimensionless parameter space. However, in practical applications we need to analyze the dispersion behavior in the physical space. In doing so, the velocity and attenuation coefficient against the frequency f are replotted in figures 36. Figure 36 shows the effects of porosity on the dispersion behavior by considering cortical bones with fixed pore diameter d=100 μm and various porosities, ranging from 1% to 10%.

From figures 36(a) and (c) we observe that the velocity decreases as the porosity increases, and the negative dispersion in the frequency band [0,5] MHz becomes more evident as the porosity increasing. It is also observed that the attenuation increases monotonically with porosity.

The effects of pore diameter on dispersion and
attenuation are shown in figure 37, where born samples
with fixed porosity f_{pore}=10% but various pore diameters d
= 50, 100, 150 and 200 μm are considered. It is observed the
pore diameter does not change the quasi-static limit of the
velocity. Instead, it changes the dispersion and attenuation
following a scaling law, i.e., the dispersion curves are
compressed horizontally as the pore diameter increases. As
a consequence, bone samples with larger pore diameter have
more obvious negative dispersion and becomes positively
dispersive at a relatively low frequency.

The coexistence of two propagation modes is frequently mentioned in the literature but rarely quantified to the author’s best knowledge. The new model allows us to estimate the condition under which two propagation modes can exist. It is seen from figure 35 that when the second mode just emerge, its velocity is extremely close to the first one. Meanwhile, the attenuation of the new mode is very large, so it is extremely difficult to discriminate the two modes.

Indeed, the wave observed in experiments is a superposition of the two modes, and the dispersion behavior lies between the two. When the volume fraction of the pores is relatively large, reaching a value between 20% to 30%, the difference between the velocities of the two modes is relatively large. If the average pore size is also not very small, about 200~300 μm in diameter, it is possible to observe the two modes experimentally.

**Figure 36:** Longitudinal dispersion (a), (c) and attenuation (b), (d) of cortical bone with different porosities: d=100 μm.

**Figure 37:** Longitudinal dispersion (a) and attenuation (b) of cortical bone with different diameters: f_{pore}=10%.

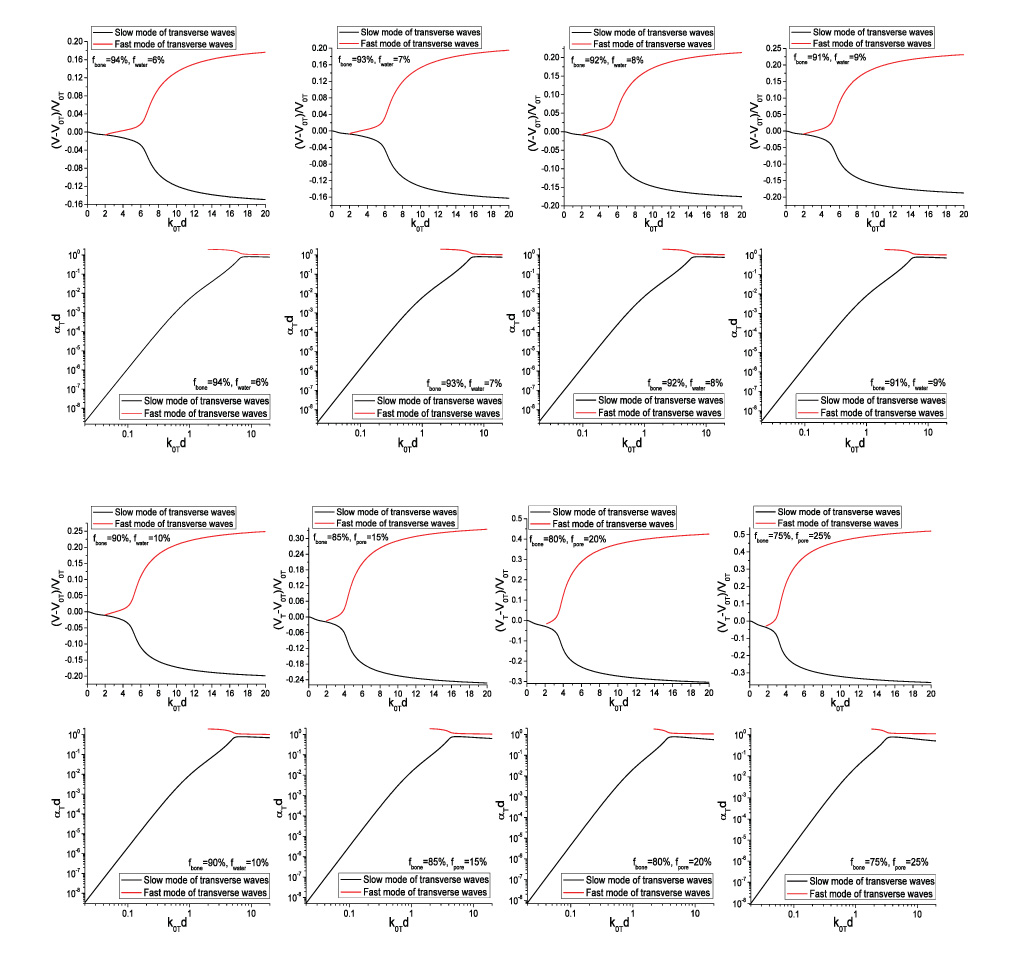

**Figure 38:** Velocity and attenuation of coherent transverse waves in cortical bone with different porosities.

**Dispersion and attenuation of transverse coherent waves:** The dispersion and attenuation of transverse waves
are shown in figure 38.

According to the characteristics of the dispersion curves, the frequency domain can be divided into three regions:

Region I (0 < k_{0T}d < 2): There is one propagation mode
with negative dispersion;

Region II: There are two propagation modes in this region,
one has positive dispersion with larger velocity. The width
of this range is strongly dependent on the volume fraction of
the pores, the smaller the f_{pore}, the broader the region II. The
magnitude of the dispersion increases with porosity;

Region III: The velocity of the fast mode quickly goes beyond the upper bound of the two component materials, indicating the disappearance of the coherent wave. The slow mode keeps negatively dispersive and quickly approaches its lower limit. The existence of the slow mode needs to be verified by experiments or numerical simulations.

The transverse wave dispersion and attenuation of cortical bones with a fixed pore diameter and different porosities are shown in figure 39. Similar to longitudinal waves, the velocity decreases and the attenuation increases as the porosity increases.

Figure 40 shows the effects of pore diameter on the dispersion and attenuation of transverse waves. They also follow a scaling law. As the pore diameter increasing, the velocity decreases more rapidly and the attenuation increases dramatically, though the quasi-static limit of the velocity keeps constant.

Through the foregoing examples we see the new model establishes an accurate quantitative relation between the wave propagation parameters and the bone microstructural information, and consequently, it provides a promising inversion model for quantitative bone characterization by using the two most important parameters: broadband ultrasonic attenuation (BUA) and speed of sound (SOS).

This work provides a completely independent theoretical framework for the prediction of dispersion behavior in fluidsaturated poroelastic materials. In contrast to Biot’s model, the new model does not require any phenomenological parameters. Most importantly, the negative dispersion behavior, which is extremely difficult to predict by Biot’s model, is perfectly captured in the new model. The new model supersedes the single scattering theories and discrete scattering models in that it is applicable to poroelastic materials with relatively large pore diameter and pore volumetric concentration.

**Figure 39:** Transverse dispersion (a), (c) and attenuation (b), (d) of cortical bone with different porosities: d=100 μm.

**Figure 40:** Transverse dispersion (a) and attenuation (b) of cortical bone with different diameters: f_{pore}=10%.

# Discussion

In the foregoing sections, we have demonstrated several practical applications of the new model, we are now at a position to discuss numerical and experimental validations of the model, and future work for possible extensions.

First of all, we need to point out that as a statistical model, providing an estimation of the statistical properties of the microstructure is sufficient for practical applications, such as clinical diagnosis or microstructure characterization. Accurate numerical and experimental verifications of this model are out of the scope of the current work. Nevertheless, it is meaningful to give a detailed discussion on how to conduct successful numerical and experimental verification for the new model. Up to date, significant efforts have been devoted to numerical simulation of wave scattering in heterogeneous materials using Finite-Difference-TimeDomain (FDTD) algorithms [29,71,195-198], finite element method (FEM) [67,68,199,200] and spectral element method (SEM) [195]. Compared to experimental approaches, numerical simulation provides an efficient and flexible way to validate different theoretical models. The most attractive feature is its capability of generating finely controlled microstructures. Numerical models for heterogeneous materials with different types of spatial correlation functions [29], with specific material property combination, and with different realizations of random media can be created using advanced preprocessing techniques, such as the Voronoi tessellations [67,68,155]. Moreover, time domain signals with arbitrary waveform and at any frequencies can also be generated, which enables the possibility of extracting the dispersion and attenuation features in a wide frequency band. Another advantage of numerical simulation is it provides a flexible approach to extract signals at any numerical nodes and at any sections at the post-processing stage, which is impractical in experiments. Numerical approaches do not introduce approximations for the scattering process, in other words, it includes all multiple scattering events and thus contains the complete information of the stochastic wavefield. Nevertheless, conventional numerical approaches suffer a number of drawbacks. For instance, discretization with large amount of meshes often introduces numerical dispersion and attenuation, especially for the case of high frequency signals [195]. Additionally, accurate description of the phase boundaries is extremely difficult, approximation to the geometry generates spurious diffraction [198]. Furthermore, the discontinuity of material properties cannot be accurately accounted for. The finite difference method frequently replaces the phase interfaces separating materials with sharp property contrast by an additional mesh with average properties of the adjacent materials [70]. Such homogenization scheme will inevitably change the scattering behavior of the inclusions. It is also noted the derivatives of the displacement is discontinuous at the phase boundaries, which may lead to numerical instability. Consequently, developing new numerical algorithms is necessary to conduct accurate full-frequencyrange simulation of the multiple scattering phenomenon in strong-property-fluctuation materials. An ideal numerical simulation should satisfy the following conditions: (1) Negligible numerical dispersion and attenuation induced by mesh discretization; (2) The numerical algorithm should be pure, free of artificial excitation or dissipation; (3) The microstructure should be finely controlled, including the shape and size of the grains/pores, the distribution of the pores, no overlap of the inclusions should be introduced; (4) As the contrast of the density and elastic stiffness between different phases may be very large, strong scattering occurs at these phase boundaries, so in the simulation no approximation of the boundary conditions should be introduced; (5) Proper boundary conditions of the sample should be introduced to avoid undesired reflections, perfectmatching-layer gets in trouble when dealing with highly inhomogeneous media, symmetric boundary conditions, periodic boundary conditions are preferred; (6) An ideal source of signal for extracting the dispersion characteristics is a plane wave with infinite extent, finite sources should be avoided, (7) In the high frequency range, the discretization in the space and time domain, i.e., the time step Δt and the grid spacing Δx must be sufficient to capture the scattererwave interaction; (8) To facilitate the observation of the fast and slow modes, the sample should be large enough, so that each of the signals are completely separated. Additionally, high-quality signal processing techniques are also necessary for the analysis of its spectral content since these signals are highly attenuated.

Researchers have conducted comprehensive experimental studies on the velocity dispersion and attenuation of multiple scattered waves in polycrystalline metals [201,202], particulate composites [203,204] and cortical and trabecular bone [67,72,73]. These works provide valuable data for evaluating the validity and accuracy of different theoretical models. However, the relevance of the data obtained in the previous experiments to the theoretical predictions in this work is questionable. Accurate experimental verification of the new model is still a very challenging task. A successful experimental verification should meet the following requirements: (1) The microstructure must be finely controlled, including the shape, size and distribution, especially that the spatial autocorrelation functions should match the theoretical hypothesis; (2) No microcracks, interfacial diffusion/ debonding or air bubbles should be introduced in the sample; (3) Planar and/or focused transducers are frequently used in practical backscattering and transmission measurements, both of which have finite beam width. Consequently, the diffraction effects must be properly corrected before the dispersion and attenuation of a plane wave component can be extracted [40,205,206]; (4) Sufficient propagation distance is required to establish a stable multiple scattering signal, so the sample should have a reasonable size. 3D printing is a promising technology for manufacturing such heterogeneous materials, but its capability still needs to verify.

The current work has laid the foundation of the multiple scattering theory for strong fluctuation materials. It can be extended in many aspects to incorporate more complicated microstructures. To the author’s best knowledge, the following directions for future developments can be distinguished. First, it is reported that a number of heterogeneous materials have ellipsoidal inclusions. For example, Lotus-Type porous metals have slender cylindrical pores aligned in one direction [181]. High-temperature titanium alloys used in jet engine foils and disks also exhibit ellipsoidal grains due to certain thermomechanical procedures like rolling and casting [209]. To capture these microstructural information, a multiple scattering model for heterogeneous media with aligned ellipsoidal inclusions are in need. Second, the current model only considers materials with isotropic constituent materials. It is well known that polycrystalline alloys are composed of anisotropic crystallites with random or preferred orientations (textures). In order to take the crystallographic information into consideration, a multiple scattering model for alloys with anisotropic grains is necessary. Third, in this work we only considered random media with exponential correlation functions, which is appropriate for the description of inclusions with sharp boundaries. For heterogeneities with blurred boundary, Gaussian correlation function is the most proper choice. The Von-Karman type correlation function is adopted to describe inhomogeneous materials with self-similar microstructures. Thus, the current model can also be extended to study the scattering phenomena occurred in heterogeneous materials with different statistical characteristics. Fourth, this work only considers pure elastic materials, while the anelastic behaviors are completely neglected. Studying the relative contribution of scattering and viscoelasticity to the overall attenuation is important for a more accurate explanation of the measured seismic data. According to the theory of viscoelasticity, the effects of viscosity can be accounted for by introducing an imaginary part in the elastic constants. The work provides a theoretical framework naturally suitable for incorporating this type of complexities. Fifth, in the spirit of this work, a system of renormalized Bethe-Salpeter equation can also be developed, which further paves the way for the development of new radiative transfer theory. The new theory is anticipated to give a more accurate description of the energy diffusion in the regime where no coherent waves can exist [3,48,125].

# Conclusion

This work provides an accurate and universal theoretical framework for investigation of elastic wave scattering in a wide variety of heterogeneous media, such as heterogeneous earth, metallic polycrystals, granular composite materials and biomedical materials like bone. The new model establishes accurate quantitative microstructure-property relations and fully supports characterization and inversion of microstructures by utilizing the dispersion and attenuation information. A series of numerical examples have been carried out to demonstrate its potential applications in seismology, ultrasonic nondestructive characterization, and bone quantitative ultrasound. Compared with current scattering theories, the new model possesses a series of advantages. The most prominent feature is that it is developed based on the accurate elastodynamic equations and the renormalized Dyson’s equation, throughout the derivation no approximations are introduced except the first-order smoothing approximation. It naturally considers the mode conversion between longitudinal and transverse waves and the effects of phase boundaries. With the proper choice of the reference homogeneous medium and by using the Fourier transform technique, the new model is capable of predicting the dispersion and attenuation of coherent waves for heterogeneous media with arbitrary property fluctuation in the whole frequency range. Meanwhile, the input of the model is extremely simple. It does not require any phenomenological parameters as common effective medium models do. With the advanced numerical algorithms, exact dispersion and attenuation for a wide variety of medium models are obtained for the first time. Most importantly, a series of important discoveries have been made based on the results. It is shown that the negative dispersion phenomenon is a common feature of two-phase elastic materials with strong property fluctuation. The appearance of two sets of longitudinal and transverse propagation modes in the intermediate to high frequency range is a bifurcation phenomenon caused by the multiple scattering process. The exact condition under which the bifurcation occurs is accurately predicted by the new model. For weak-propertyfluctuation materials, the velocities of the two modes at very high frequencies approach the geometric limits, while for strong-property-fluctuation materials the coherent waves disappear at relatively high frequencies, which is indicated by the model by giving a velocity lager than the upper bound of the constituent phases. At relatively low frequencies, both the dimensionless attenuation and Q-factors increase with frequency following a power law, while at high frequencies, the dimensionless attenuation approaches a constant value near unity and the Q-factor decreases following an inverse power law. Both the longitudinal and transverse Q-factors reach a summit at a critical intermediate frequency, which perfectly confirms Aki’s conjecture. The curves of Q-factors and Q-factor ratios predicted by the model show excellent agreement with that collected from seismic data, showing that multiple scattering plays a dominant role in determining the attenuation of seismic waves. These new discoveries suggest us to interpret the seismic data in the new theoretical framework, and reexamine all the conclusions based on the classical multi-layered model, such as the existence of the Mohorovičić discontinuity. Finally, this work paves the way for developing more advanced models to characterize heterogeneous materials with more complicated microstructures.

Wu R-S, Aki K (1989-1990) Scattering and Attenuation of Seismic Waves, Parts I-III. Birkhauser Verlag.[ Ref ]

Aki K, Richards PG (1980) Quantitative Seismology: Theory and Methods. WH Freeman and Company.[ Ref ]

Sato H, Fehler MC, Maeda T (2012) Seismic wave propagation and scattering in the heterogeneous earth, the second edition. SpringerVerlag[ Ref ]

Mitchell BJ, Romanowicz B (1999) Q of the Earth: Global, regional, and laboratory studies. Birkhauser Verlag, Basel.[ Ref ]

Aki K (1973) Scattering of P waves under the Montana Lasa. J Geophys Res 78: 1334. [ Ref ]

Aki K (1980) Scattering and attenuation of shear waves in the lithosphere. J Geophys Res 85: 6496.[ Ref ]

Aki K, Chouet B (1975) Origin of Coda Waves: Source, Attenuation, and Scattering Effects. J Geophys Res 80: 3322.[ Ref ]

Wu R-S, Aki K (1985) Elastic wave scattering by a random medium and the small-scale inhomogeneities in the lithosphere. J Geophys Res 90: 10261. [ Ref ]

Wu R-S (1985) Multiple scattering and energy transfer of seismic waves – separation of scattering effect from intrinsic attenuation – I. Theoretical modeling. Geophys J Royal Astronomical Soc 82: 57.[ Ref ]

Wu R-S (1982) Mean field attenuation and amplitude attenuation due to wave scattering. Wave Motion 4: 305. [ Ref ]

Wu R-S (1982) Attenuation of short period seismic waves due to scattering. Geophys Res L 9: 9.[ Ref ]

Calvet M, Margerin L (2012) Velocity and attenuation of scalar and elastic waves in random media: A spectral function approach. J Acoust Soc Am 131: 1843. [ Ref ]

Calvet M, Margerin L (2008) Constraints on grain size and stable iron phases in the uppermost Inner Core from multiple scattering modeling of seismic velocity and attenuation. Earth and Planetary Science Letters 267: 200. [ Ref ]

Calvet M, Margerin L (2016) Impact of grain shape on seismic attenuation and phase velocity in cubic polycrystalline materials. Wave Motion 65: 29.[ Ref ]

Margerin L, Nolet G (2003) Multiple scattering of high-frequency seismic waves in the deep Earth: modeling and numerical examples. J Geophys Res 108: ESE 2-1. [ Ref ]

Li XF, Hudson JA (1996) Multiple scattering of elastic waves from a continuous and heterogeneous region. Geophys J Int 126: 845. [ Ref ]

Li XF (2001) Scattering of seismic waves in arbitrarily heterogeneous and acoustic media: A general solution and simulations. Geophys Res Lett 28: 3003.[ Ref ]

.Roth M, Korn M (1993) Single scattering theory versus numerical modeling in 2-D random media. Geophys J Int 112: 124.[ Ref ]

Dvorkin J, Nur A (1993) Dynamic poroelasticity: a unified model with the squirt and the Biot mechanisms. Geophys 58: 524. [ Ref ]

Dvorkin J, Nolen-Hoeksema R, Nur A (1994) The squirt-flow mechanism: macroscopic description. Geophys. 59: 428. [ Ref ]

Dvorkin J, Mavko G, Nur A (1995) Squirt flow in fully saturated rocks. Geophys 60: 97.[ Ref ]

Pride SR, Berryman JG, Harris JM (2004) Seismic attenuation due to wave-induced flow. J Geophys Res 109: B01201. [ Ref ]

Tang XM (2011) A unified theory for elastic wave propagation through porous media containing cracks - An extension of Biot’s poroelastic wave theory. Sci China Earth Sci 54: 1441. [ Ref ]

Ciz R, Gurevich B, Markov M (2006) Seismic attenuation due to waveinduced fluid flow in a porous rock with spherical heterogeneities. Geophys J Int 165: 957. [ Ref ]

Muller TM, Gurevich B, Lebedev M (2010) Seismic wave attenuation and dispersion resulting from wave-induced flow in porous rocks - A review. Geopgys 75: 75A147. [ Ref ]

Muller TM, Gurevich B (2005) A first-order statistical smoothing approximation for the coherent wave field in random porous media. J Acoust Soc Am 117: 1796. [ Ref ]

Muller TM, Gurevich B, Shapiro SA (2008) Attenuation of seismic waves due to wave-induced flow and scattering in randomly heterogeneous poroelastic continua. Adv Geophys 50: 123. [ Ref ]

Shapiro SA, Kneib G (1993) Seismic attenuation by scattering: theory and numerical results. Geophys J Int 114: 373.[ Ref ]

Frankel A, Clayton RW (1986) Finite difference simulation of seismic scattering: Implications for the propagation of short-period seismic waves in the crust and models of crustal heterogeneity. J Geophys Res 91: 6465. [ Ref ]

Yoshimoto K, Sato H, Ohtake M (1993) Frequency-dependent attenuation of P and S waves in the Kanto area, Japan, based on the coda-normalization method. Geophys J Int 114: 165. [ Ref ]

Yoshimoto K, Takemura S, Kobayashi M (2015) Application of scattering theory to P-wave amplitude fluctuations in the crust. Earth, Planets and Space 67: 199.[ Ref ]

Tittgemeyer M, Wenzel F, Fuchsl K, Ryberg T (1996) Wave propagation in a multiple-scattering upper mantle – observations and modelling. Geophys J Int 127: 492.[ Ref ]

.Kuster GT, Toksoz MN (1974) Velocity and attenuation of seismic waves in two-phase media: Part I. theoretical fundamentals. Geophys 39: 587. [ Ref ]

Walls J, Taner MT, Uden R, Singleton S, Derzhi N, et al. (2006) Novel use of P- and S-wave seismic attenuation for deep natural gas exploration and development. Final report: DE-FC26-04NT42243.[ Ref ]

Raji WO (2013) The use of seismic attenuation to indicate saturation in hydrocarbon reservoirs: Theoretical study and modelling approach. Adv Appl Sci Res 4: 45.[ Ref ]

Ivanchuk M, Tarkhova LF (1974) Application of seismic surveying to direct exploration for oil and gas. Petroleum Geology: A digest of Russian literature on Petroleum Geology 12: 396.[ Ref ]

Rose JH (1991) Ultrasonic backscattering from polycrystalline aggregates using time-domain linear response theory. Rev Prog Quant Nondestruct Eval 10B: 1715.[ Ref ]

Rose JH (1992) Ultrasonic backscatter from microstructure. Rev Prog Quant Nondestruct Eval 11: 1677. [ Ref ]

Rose JH (1993) Theory of ultrasonic backscatter from multiphase polycrystalline solids. Rev. Prog. Quant. Nondestruct. Eval. 12: 1719.[ Ref ]

Margetan FJ, Thompson RB, Yalda-Mooshabad I, Han YK (1993) Detectability of small flaws in advanced engine alloys. U.S. Air Force Technical Report, Center for NDE, Iowa State University.[ Ref ]

Han YK (1994) Relationship between the ultrasonic grain noise and microstructure in two-phase microstructures. Iowa State University.[ Ref ]

Hirsekorn S (1988) The scattering of ultrasonic waves by multiphase polycrystals. J Acoust Soc Am 83: 1231.[ Ref ]

Hirsekorn S (1985) The scattering of ultrasonic waves in polycrystalline materials with texture. J Acoust Soc Am 77: 832.[ Ref ]

Hirsekorn S (1983) The scattering of ultrasonic waves by polycrystals. II. Shear waves. J Acoust Soc Am 73: 1160.[ Ref ]

Hirsekorn S (1982) The scattering of ultrasonic waves by polycrystals. J Acoust Soc Am 72: 1021. [ Ref ]

Stanke FE, Kino GS (1984) A unified theory for elastic wave propagation in polycrystalline materials. J Acoust Soc Am 75: 665. [ Ref ]

Stanke FE (1983) Unified theory and measurements of elastic waves in polycrystalline materials. Stanford University. [ Ref ]

Weaver RL (1990) Diffusivity of ultrasound in polycrystals. J Mech Phys Solids 38: 55. [ Ref ]

Kube CM, Turner JA (2015) Voigt, Reuss, Hill, and Self-consistent techniques for modeling ultrasonic scattering. [ Ref ]

Kube CM, Turner JA (2015) Ultrasonic attenuation in polycrystals using a self-consistent approach. Wave Motion 57: 182.[ Ref ]

Ghoshal G, Turner JA (2010) Diffuse ultrasonic backscatter at normal incidence through a curved interface. J Acoust Soc Am 128: 3449. [ Ref ]

Turner JA, Weaver RL (1995) Single scattering and diffusive limits of the ultrasonic radiative transfer equation. Rev Prog Quant Nondestruct Eval 14: 75. [ Ref ]

Ghoshal G, Turner JA, Weaver RL (2007) Wigner distribution of a transducer beam pattern within a multiple scattering formalism for heterogeneous solids. J Acoust Soc Am 122: 2009.[ Ref ]

Yang LY, Turner JA, Li Z (2007) Ultrasonic characterization of microstructure evolution during processing. J Acoust Soc Am 121: 50. [ Ref ]

Kube CM, Turner JA (2015) Acoustic attenuation coefficients for polycrystalline materials containing crystallites of any symmetry class. J Acoust Soc Am 137: EL476. [ Ref ]

Turner JA, Weaver RL (1994) Radiative transfer and multiple scattering of diffuse ultrasound in polycrystalline media. J Acoust Soc Am 96: 3675.[ Ref ]

.Turner JA (1999) Elastic wave propagation and scattering in heterogeneous, anisotropic media: Textured polycrystalline materials. J Acoust Soc Am 106: 541. [ Ref ]

Turner JA, Anugonda P (2001) Scattering of elastic waves in heterogeneous media with local isotropy. J Acoust Soc Am 109: 1787. [ Ref ]

Sabina FJ, Willis JR (1988) A simple self-consistent analysis of wave propagation in particulate composites. Wave Motion 10: 127.[ Ref ]

Willis JR (1980) A polarization approach to the scattering of elastic waves-I. Scattering by a single inclusion. J Mech Phys Solids 28: 287. [ Ref ]

Willis JR (1980) A polarization approach to the scattering of elastic waves-II. Multiple Scattering from inclusions. J Mech Phys Solids 28: 307.[ Ref ]

Sabina FJ, Smyshlyaev VP, Willis JR (1993) Self-consistent analysis of waves in a matrix-inclusion composite-I. Aligned spheroidal inclusions. J Mech Phys Solids 41: 1573. [ Ref ]

Smyshlyaev VP, Willis JR, Sabina FJ (1993) Self-consistent analysis of waves in a matrix-inclusion composite-II. Randomly oriented spheroidal inclusions. J Mech Phys Solids 41: 1589. [ Ref ]

Sabina FJ, Smyshlyaev VP, Willis JR (1993) Self-consistent analysis of waves in a matrix-inclusion composite-III. A matrix containing cracks. J Mech Phys Solids 41: 1809. [ Ref ]

Beltzer AI (1983) On wave propagation in random particulate composites. Int J Solids Structures 19: 785. [ Ref ]

Beltzer AI, Brauner N (1985) Elastic waves propagation in polycrystalline media: A causal response. Appl Phys Lett 47: 1054.[ Ref ]

Pamel VA (2015) Ultrasonic inspection of highly scattering materials. Imperial College London. [ Ref ]

Pamel V, Brett CR, Huthwaite P, Lowe MJS (2015) Finite element modeling of elastic wave scattering within a polycrystalline material in two and three dimensions. J Acoust Soc Am 138: 2326. [ Ref ]

Shung KK, Thieme GA (1992) Ultrasonic Scattering in Biological Tissues. CRC Press.[ Ref ]

.Laugier P, Haïat G (2011) Bone quantitative ultrasound. Springer.[ Ref ]

Haiat G, Padilla F, Barkmann R, Gluer C-C, Laugier P (2006) Numerical simulation of the dependence of quantitative ultrasonic parameters on trabecular bone microarchitecture and elastic constants. Ultrasonics 44: e289. [ Ref ]

Sasso M, Haiat G, Yamato Y, Naili S, Matsukawa M (2007) Frequency dependence of ultrasonic attenuation in bovine cortical bone: An in vitro study. Ultrasound in Med and Biol 33: 1933.[ Ref ]

.Haiat G, Sasso M, Naili S, Matsukawa M (2008) Ultrasonic velocity dispersion in bovine cortical bone: an experimental study. J Acoust Soc Am 124: 1811. [ Ref ]

Barbieri G, Barbieri CH, Matos PS, Pelá CA, Mazzer N (2009) A comparative study of ultrasonic velocity and attenuation in the evaluation of bone healing. Acta Ortop Bras 17: 273. [ Ref ]

Lakes RS, Yoon HS, Katz JL (1986) Ultrasonic wave propagation and attenuation in wet bone. J Biomed Eng 8: 143. [ Ref ]

Rho JY (1996) An ultrasonic method for measuring the elastic properties of human tibial cortical and cancellous bone. Ultrasonics 34: 777. [ Ref ]

Trębacz H, Gawda H (2001) The estimation of structural anisotropy of trabecular and cortical bone tissues based on ultrasonic velocity and attenuation. Acta Bioeng Biomech 3: 41.[ Ref ]

Wang XD, Ni QW (2003) Determination of cortical bone porosity and pore size distribution using a low field pulsed NMR approach. J Orthop Res 21: 312.[ Ref ]

Biot MA (1956) Theory of propagation of elastic waves in a fluid-saturated porous solid. I. Low-frequency range. J Acoust Soc Am 28: 168. [ Ref ]

Biot MA (1956) Theory of propagation of elastic waves in a fluid-saturated porous solid. II. Higher-frequency range. J Acoust Soc Am 28: 179.[ Ref ]

Biot MA (1962) Mechanics of deformation and acoustic propagation in porous media. J Appl Phys 33: 1482. [ Ref ]

.Plona TJ (1980) Observation of a second bulk compressional wave in a porous medium at ultrasonic frequencies. Appl Phys Lett 36: 259.[ Ref ]

Bourbie T, Coussy O, Zinszner B (1988) Acoustics of Porous Media. CRC Press.[ Ref ]

.Fjar E, Holt RM, Raaen AM, Risnes R, Horsrud P (2008) Petroleum Related Rock Mechanics. Elsevier Science. [ Ref ]

Voyiadjis GZ, Song CR (2006) The Coupled Theory of Mixtures in Geomechanics with Applications. Springer.[ Ref ]

Kudarova A (2016) Effective models for seismic wave propagation in porous media. Delft University of Technology. [ Ref ]

Johnston DH, Toksoz MN, Timur A (1979) Attenuation of seismic waves in dry and saturated rocks: mechanisms. Geophys 44: 691.[ Ref ]

Winkler K (1985) Dispersion analysis of velocity and attenuation in Berea sandstone. J Geophys Res 90: 6793.[ Ref ]

Anderson CC, Marutyan KR, Holland MR (2008) Interference between wave modes may contribute to the apparent negative dispersion observed in cancellous bone. J Acoust Soc Am 124: 1781. [ Ref ]

Lee KI, Humphrey VF, Kim B-N, Yoon SW (2007) Frequency dependencies of phase velocity and attenuation coefficient in a water-saturated sandy sediment from 0.3 to 1.0 MHz. J Acoust Soc Am 121: 2553. [ Ref ]

.Johnson DL, Koplik J, Dashen R (1987) Theory of dynamic permeability and tortuosity in fluid-saturated porous media. J Fluid Mech 176: 379. [ Ref ]

Hashin Z, Shtrikman S (1963) A variational approach to the theory of the elastic behaviour of multiphase materials. J Mech Phys Solids 11: 127.[ Ref ]

Hashin Z, Shtrikman S (1962) A variational approach of the elastic behaviour to the theory of polycrystals. J Mech Phys Solids 10: 343. [ Ref ]

Hashin Z, Shtrikman S (1962) On some variational principles in anisotropic and nonhomogeneous elasticity. J Mech Phys Solids 10: 335.[ Ref ]

Korringa J (1973) Theory of elastic constants of heterogeneous media. J Math Phys 14: 509.[ Ref ]

Zhuck NP, Lakhtakia A (1999) Effective constitutive properties of a disordered elastic solid medium via the strong-fluctuation approach. Proc Roy Soc A: Math Phys Sci 455: 543.[ Ref ]

Duncan J, Mackay TG, Lakhtakia A (2008) On the homogenization of orthotropic elastic composites by the strong-property-fluctuation theory.[ Ref ]

Karal FC, Keller JB (1964) Elastic, electromagnetic, and other waves in a random medium. J Math Phys 5: 537.[ Ref ]

Tsang L, Kong JA (1981) Application of strong fluctuation random medium theory to scattering from vegetation-like half space. IEEE Trans Geosci Rem Sens GE-19: 62.[ Ref ]

Yueh SH, Kong JA, Shin RT (1990) Scattering from randomly oriented scatterers with strong permittivity fluctuations. J Electromagn Waves Appl. 4: 983.[ Ref ]

Tsang L, Kong JA (1981) Scattering of electromagnetic waves from random media with strong permittivity fluctuations. Radio Sci 16: 303.[ Ref ]

Yueh SH, Kong JA, Shin RT (1990) Scattering from randomly oriented scatters with strong permittivity fluctuations. J Electromagnet Wave 4: 983. [ Ref ]

Tsang L, Kong JA (1981) Application of strong fluctuation random medium theory to scattering from vegetation-like half space. IEEE Trans Geosci Rem Sens GE-19: 62.[ Ref ]

Jin YQ (1990) Radiative transfer theory for strongly fluctuating, continuous random media. Sci China A 33: 875. [ Ref ]

Jin YQ, Kong JA (1985) Strong fluctuation theory for scattering, attenuation, and transmission of microwaves through snowfall. IEEE Trans Geosci Rem Sens GE-23: 754. [ Ref ]

Tsang L, Kong JA, Newton RW (1982) Application of strong fluctuation random medium theory to scattering of electromagnetic waves from a half-space of dielectric mixture. IEEE Trans Antennas Propag AP-30: 292. [ Ref ]

Lim HH, Veysoglu ME, Yueh SH, Shin RT, Kong JA (1994) Random medium model approach to scattering from a random collection of discrete scatterers. J Electromagn Waves 8: 801.[ Ref ]

Jin YQ, Kong JA (1984) Strong fluctuation theory for electromagnetic wave scattering by a layer of random discrete scatterers. J Appl Phys 55: 1364.[ Ref ]

Jin YQ (1993) Electromagnetic scattering modelling for quantitative remote sensing. World Scientific.[ Ref ]

Jing X, Sheng P, Zhou M (1991) Theory of acoustic excitations in colloidal suspensions. Phys Rev Lett 66: 1240. [ Ref ]

Jing X, Sheng P, Zhou M (1992) Acoustic and electromagnetic quasimodes in dispersed random media Phys Rev A 46: 6513.[ Ref ]

Sheng P (1995) Introduction to Wave Scattering, Localization, and Mesoscopic Phenomena. Academic Press.[ Ref ]

. Liu J, Ye L, Weitz DA, Sheng P (1990) Novel acoustic excitations in suspensions of hard-sphere colloids. Phys Rev Lett 65: 2602.[ Ref ]

Foldy LL (1945) The multiple scattering of waves I. General theory of isotropic scattering by randomly distributed scatterers. Phys Rev 67: 107.[ Ref ]

Twersky V (1962) On scattering of waves by random distributions. I. Free-space scatterer formalism. J Math Phys 3: 700. [ Ref ]

Twersky V (1962) On scattering of waves by random distributions. II. Two-space scatterer formalism. J Math Phys 3: 724.[ Ref ]

Lax M (1952) Multiple scattering of waves. II. The effective field in dense systems. Phys Rev 85: 621. [ Ref ]

Weaver RL (1984) Waves in random media. Int J Engng Sci 22: 1149.[ Ref ]

Waterman PC, Truell R (1961) Multiple scattering of waves. J Math Phys 2: 512. [ Ref ]

Tsang L, Kong JA, Ding K-H (2000) Scattering of electromagnetic waves – Theories and applications. John Wiley & Sons Inc. [ Ref ]

Tsang L, Kong JA, Ding KH, Ao CO (2001) Scattering of electromagnetic waves – Numerical simulations. John Wiley & Sons Inc. [ Ref ]

Tsang L, Kong JA (2001) Scattering of electromagnetic waves – Advanced topics. John Wiley & Sons Inc.[ Ref ]

Rytov SM, Kravtsov YA, Tatarskii VI (1989) Principles of Statistical Radiophysics. Springer-Verlag.[ Ref ]

Line ER, Hobbs RW, Hudson JA, Snyder DB (1998) Statistical inversion of controlled-source seismic data using parabolic wave scattering theory. Geophys J Int 132: 61.[ Ref ]

van Rossum MCW, Nieuwenhuizen TM (1999) Multiple scattering of classical waves: microscopy, mesoscopy, and diffusion. Rev Mod Phys 71: 313.[ Ref ]

Barabanenkov YN, Kravtsov YA, Rytov SM, Tamarskii VI (1971) Status of the theory of propagation of waves in a randomly inhomogeneous medium. Sov Phys Usp 13: 551. [ Ref ]

Frisch U (1968) Wave propagation in random media in Probabilistic Methods in Applied Mathematics. Academic Press. [ Ref ]

Sobczyk K (1985) Stochastic Wave Propagation. Elseviewer. [ Ref ]

He HJ Propagation and Scattering of Elastic Waves.[ Ref ]

Howell BF (1990) An introduction to seismological research: History and development. Cambridge University Press. [ Ref ]

Jarchow CM, Thompson GA (1989) The nature of the Mohorovičić discontinuity. Ann Rev Earth Planet Sci 17: 475. [ Ref ]

https://en.wikipedia.org/wiki/Mohorovi%C4%8Di%C4%87_ discontinuity.[ Ref ]

Weaver RL (1986) Causality and theories of multiple scattering in random media. Wave Motion 8: 473. [ Ref ]

Weaver RL, Pao YH (1981) Dispersion relations for linear wave propagation in homogeneous and inhomogeneous media. J Math Phys 22: 1909.[ Ref ]

Eringen C, Suhubi ES (1975) Elastodynamics. Academic Press Inc. [ Ref ]

Mow C, Pao YH (1971) The diffraction of elastic waves and dynamic stress concentrations, a report prepared for United States Air Force Project Rand. Rand.[ Ref ]

Martin PA (2006) Multiple Scattering: Interaction of Time-Harmonic Waves with N Obstacles. Cambridge University Press. [ Ref ]

Gubernatis JE, Domany E, Krumhansl JA, Huberman M (1975) Fundamental theory of elastic wave scattering by defects in elastic materials: integral equation methods for application to ultrasonic flaw detection. The Materials Science Center Report 2654, Cornell University. [ Ref ]

Bladel J (1961) Some remarks on Green’s dyadic for infinite space. IRE Trans Antennas Propa 9: 563.[ Ref ]

Finkel’berg VM (1964) The dielectric constant of mixtures. Sov Phys Tech Phys 9: 396.[ Ref ]

Michel B, Lakhtakia A (1995) Strong-property-fluctuation theory for homogenizing chiral particulate composites. Phys Rev E 51: 5701. [ Ref ]

Mackay TG, Lakhtakia A, Weiglhofer WS (2000) Strong-propertyfluctuation theory for homogenization of bianisotropic composites: Formulation. Phys Rev E 62: 6052.[ Ref ]

Zhuck NP (1995) Effective parameters of a statistically homogeneous fluid with strong density and compressibility fluctuations. Phys Rev B 52: 919.[ Ref ]

Zhuck NP (1996) Strong fluctuation theory for a mean acoustic field in a random fluid medium with statistically anisotropic perturbations. J Acoust Soc Am 99: 46.[ Ref ]

Takada M, Jain B (2003) The Three-Point Correlation Function in Cosmology. Monthly Notice Roy Astron Soc 340: 580. [ Ref ]

Yoon MK (2005) Deep seismic imaging in the presence of a heterogeneous overburden: Numerical modelling and case studies from the Central Andes and Southern Andes. Freie Universität Berlin. [ Ref ]

Koyama H, Yano T (2005) The relation between the two-point and threepoint correlation functions in the nonlinear gravitational clustering regime. Astrophys J 624: 1.[ Ref ]

Torquato S (1999) Exact conditions on physically realizable correlation functions of random media. J Chem Phys 111: 8832.[ Ref ]

Akkermans E, Montambaux G (2001) Mesoscopic Physics of Electrons and Photons. Cambridge University Press. [ Ref ]

Abrikosov A, Gorkov LP, Dzyaloshinski IE (1963) Methods of quantum field theory in statistical physics. Dover Publications Inc., New York. [ Ref ]

Rickayzen G (1980) Green’s functions and condensed matter. Dover Publications Inc., New York. [ Ref ]

Economou EN (1979) Green’s functions in quantum physics. SpringerVerlag, Berlin.[ Ref ]

Bourret RC (1962) Stochastically perturbed fields, with applications to wave propagation in random media. IL Nuovo Cimento 26: 1.[ Ref ]

Collin RE (1971) A comparison of selective summation techniques for the coherent Green’s function in random media. Radio Sci 6: 991. [ Ref ]

Torquato S (2002) Random heterogeneous materials: microstructure and macroscopic properties. Springer-Verlag, New York.[ Ref ]

Cui JJ, Mackay TG (2007) On convergence of the extended strongproperty-fluctuation theory for bianisotropic homogenized composites. [ Ref ]

Frankel T (2011) The Geometry of Physics: An Introduction. Cambridge University Press.[ Ref ]

Capon J, Berteussen KA (1974) A random medium analysis of crust and upper mantle structure under NORSAR. Geophys Res Lett 1: 327.[ Ref ]

Flatte SM, Wu R-S (1988) Small-scale structure in the lithosphere and asthenosphere deduced from arrival time and amplitude fluctuations at NORSAR. J Geophys Res 93: 6601.[ Ref ]

Levander R, Hobbs RW, Smith SK, England R, Snyder DB, et al. (1994) The crust as a heterogeneous ‘optical’ medium or ‘crocodiles in the mist’. Techtonophys 232: 281. [ Ref ]

Chernov LA (1960) Wave propagation in a random medium. Dover publications, New York.[ Ref ]

Carcione JM, Cavallini F (1995) Attenuation and quality factor surfaces in anisotropic-viscoelastic media. Mech Mater 19: 311. [ Ref ]

Kozlovskaya E, Janik T, Yliniemi J, Karatayev G, Grad M (2004) Densityvelocity relationship in the upper lithosphere obtained from P-and S-wave velocity models along the EUROBRIDGE’97 seismic profile and gravity data. Acta Geophys Polon 52: 397.[ Ref ]

Kennett BLN (2001-2002) The seismic wavefield: vol. I, Introduction and theoretical development, vol. II, Interpretation of seismograms on regional and global scales. Cambridge university press.[ Ref ]

Pilant WL (1979) Elastic waves in the Earth. Elsevier. [ Ref ]

http://www.gfz.hr/sobe-en/discontinuity.htm.[ Ref ]

Steck LK, Phillips WS, Mackey KG, Begnaud ML, Stead RJ, et al. (2008) Seismic tomography of Pg and Sg/Lg and its use for average upper crustal structure in Eurasia. LA-UR-08-04628.[ Ref ]

Steck LK, Phillips WS, Mackey K, Begnaud ML, Stead RJ, et al. (2009) Seismic tomography of crustal P and S across Eurasia. Geophys J Int 177: 81. [ Ref ]

Huang RQ, Wang Z, Pei SP, Wang YS (2009) Crustal ductile flow and its contribution to tectonic stress in Southwest China. Tectonophys 473: 476. [ Ref ]

Abdelwahed MF, Zhao DP (2007) Deep structure of the Japan subduction zone. Phys Earth Planet Inter 162: 32. [ Ref ]

Mackey KG, Fujita K, Harste HE, Steck LK (2003) Seismic regionalization in Eastern Russia. 25

^{th}Seismic Research Review-Nuclear Explosion Monitoring: Building the knowledge base.[ Ref ]https://en.wikipedia.org/wiki/Conrad_discontinuity[ Ref ]

Lines LR, Treitel S (1984) A review of least-squares inversion and its application to geophysical problems. Geophys Prospect 32: 159. [ Ref ]

Claerbout JF (1985) Imaging the Earth interior. Blackwell Science Inc. [ Ref ]

Lines LR, Treitel S (1984) A review of least-squares inversion and its application to geophysical problems. Geophys Prospect 32: 159. [ Ref ]

Muller T (2001) Seismic pulse propagation in statistically heterogeneous geological structures. Freie Universität Berlin.[ Ref ]

Goff JA, Holliger K, Levande A (1994) Modal fields: a new method for characterisation of random seismic velocity heterogeneity. Geophys Res Lett 21: 493.[ Ref ]

Muller G, Roth M, Korn M (1992) Seismic-wave traveltimes in random media. Geophys J Int 110: 29.[ Ref ]

Blanchette-Guertin J-F, Johnson CL, Lawrence JF (2015) Modeling seismic energy propagation in highly scattering environments. J Geophys Res Planets 120: 515. [ Ref ]

Fleury C (2012) Wave propagation in complex media, scattering theory and application to seismic imaging. Colorado School of Mines.[ Ref ]

Kakeshita T (2013) Progress in advanced structural and functional materials design. Springer.[ Ref ]

Rubow KL (2009) Porous metal for aerospace. Adv. Mater. Process. 167: 26.[ Ref ]

Ehlers W, Blum J (2002) Porous Media: Theory, Experiments and Numerical Applications. Springer, Berlin.[ Ref ]

Nakajima H (2010) Fabrication, properties, and applications of porous metals with directional pores. Proc Jpn Acad Ser B 86: 884.[ Ref ]

Wen CE, Mabuchi M, Yamada Y, Shimojima K, Chino Y, et al. (2001) Processing of biocompatible porous Ti and Mg. Scrip Mater 45: 1147.[ Ref ]

Yavari SA (2014) Porous titanium for bone substitution: mechanobiology meets surface science. Sharif University of Technology. [ Ref ]

Miao XG, Sun D (2010) Graded/Gradient Porous Biomaterials. Mater 3: 26. [ Ref ]

Chen Y-J (2009) Relationship between ultrasonic characteristics and relative porosity in Al and Al-XSi alloys. Mater Trans 50: 2308. [ Ref ]

Sayers CM, Smith RL (1982) The propagation of ultrasound in porous media. Ultrasonics 20: 201. [ Ref ]

Gubernatis FE, Domany E (1983) Effects of microstructure on the speed and attenuation of elastic waves: formal theory and simple approximation. Rev Prog Quant Nondestruct Eval 2A: 833. [ Ref ]

Kawahara J, Ohno T, Yomogida K (2009) Attenuation and dispersion of antiplane shear waves due to scattering by many two-dimensional cavities. J Acoust Soc Am 125: 3589. [ Ref ]

Rose H (1987) The effect of nonspherical pores and multiple scattering on the ultrasonic characterization of porosity. Rev Prog Quant Nondestruct Eval 6A: 1419.[ Ref ]

Yadav D, Bauri R, Kauffmann A, Freudenberger J (2016) Al-Ti particulate composite: processing and studies on particle twinning, microstructure, and thermal stability. Metall Mater Trans A 47: 4226.[ Ref ]

https://en.wikipedia.org/wiki/Aluminium_bronze[ Ref ]

Fichtner A (2011) Full seismic waveform modelling and inversion. Springer-Verlag, Berlin Heidelberg.[ Ref ]

Bossy E, Talmant M, Laugier P (2004) Three-dimensional simulations of ultrasonic axial transmission velocity measurement on cortical bone models. J Acoust Soc Am 115: 2314. [ Ref ]

Taflove A, Hagness SC (2005) Computational Electrodynamics: The Finite-Difference Time-Domain Method. Artech House.[ Ref ]

Chekroun M, Marrec LL, Lombard B, Piraux J, Abraham O (2009) Comparison between a multiple scattering method and direct numerical simulations for elastic wave propagation in concrete, in Ultrasonic Wave Propagation in Non Homogeneous Media. Springer-Verlag, Berlin.[ Ref ]

Liu DL, Turner JA (2017) Numerical analysis of longitudinal ultrasonic attenuation in sintered materials using a simplified two-phase model. J Acoust Soc Am 141: 1226.[ Ref ]

Ihlenburg F (1998) Finite Element Analysis of Acoustic Scattering. Springer.[ Ref ]

Zeng F, Agnew SR, Raeisinia B, Myneni GR (2010) Ultrasonic attenuation due to grain boundary scattering in pure Niobium. J Nondestruct Eval 29: 93.[ Ref ]

Zhang XG, Simpson WA, Vitek JM, Barnard DJ, Tweed LJ, Foley J (2004) Ultrasonic attenuation due to grain boundary scattering in copper and copper-aluminum. J Acoust Soc Am 116: 109. [ Ref ]

Kinra VK, Ker E, Datta SK (1982) Influence of particulate resonance on wave propagation in a random particulate composite. Mech Res Commun 9: 109. [ Ref ]

Kinra VK, Petraitis MS, Datta SK (1980) Ultrasonic wave propagation in a random particulate composite. Int J Solids Struct 16: 301.[ Ref ]

Thompson RB, Lopes EF (1984) The effects of focusing and refraction on Gaussian ultrasonic beams. J Nondestruct Eval 4: 107. [ Ref ]

Margetan FJ, Thompson RB, Lerch TP (1999) An analytical approximation for a common ultrasonic grain noise diffraction integral. Rev Prog Quant Nondestruct Eval 18: 45.[ Ref ]

Friák M, Counts WA, Ma D, Sander B, Holec D, et al. (2012) Theoryguided materials design of multi-phase Ti-Nb alloys with bone-matching elastic properties. Materials 5: 1853.[ Ref ]

Zhou YL, Niinomi M (2009) Effects of Nd content on the dynamic elastic modulus and mechanical properties of Titanium-Neodymium alloys. Mater Trans 50: 368.[ Ref ]

Gammon FM, Briggs RD, Packard JM, Batson KW, Boyer R, et al. (2004) Metallography and microstructures of titanium and its alloys. ASM Handbook.[ Ref ]
